| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

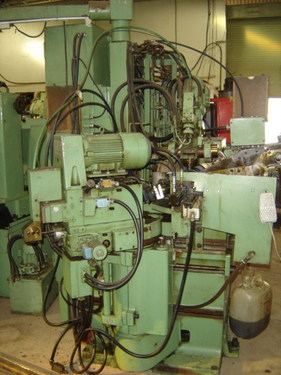

gear tooth rounding machine for heavy volumn |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
SPECIFICATIONS:
MAX. DIAMETER OF WORK PIECE 11"
WORK PIECE SIZE/CHAMFERED 1 TO 4 MOD
WORK PIECE SIZE/DEBURRED 1 TO 6 MOD
NUMBER OF TEETH 6-100
TAPER OF CUTTER SPINDLE ISO 40
CUTTER SPINDLE SPEEDS 250/350/500/700/1000
1400/2000/2800 RPM
DIAMETER OF WORK SPINDLE BORE 4.7"
CUTTER SLIDE FINE ADJ. RANGE 1.2"
CUTTE SLIDE RETURN STROKE 3.9"
RANGE OF CUTTER SLIDE VERT. ADJ. 7.0"
CUTTER SLIDE SWIVEL RANGE 4.1"
DESCRIPTION:
RANGE OF KNEE HORZ. ADJ. 15.7"
RANGE OF INDEX HEAD HORZ. ADJ. 13.3
|
|
|
|
|
|
