Gear Shapers CNC |
|
|
|
|
|
| Type of Machine |
: |

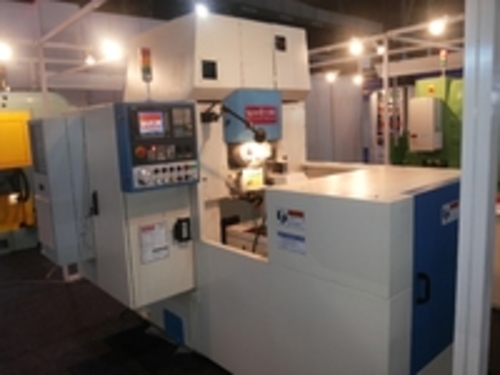

CNC GEAR SHAPER 2 AXIS WITH HYDRAULIC TAILSTOCK AND CLAMPING |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
WORKPIECE
Maximum diameter-external: 400mm (15.7in) (102mm cutter)
Maximum diameter-internal: 380mm (15in) (127mm cutter)
Maximum pitch: Mod. 6 (4D.P.)
Maximum helic angle: 45degr. (R.H. or L.H.)
CAPACITY
Cutter stroke length: 0-10mm (0-4in)
Cutter spindle speeds: 50-700 spm
Maximum centre distance- 254mm (10in)
Cutter to work (forward)
Maximum centre distance- 127mm (5in)
Cutter to work (backward)
Minimum centre distance: 0
Cutter spindle shoulder to 254mm (10in)
table top maximum
Cutter spindle shoulder to 122mm (4.72in)
table top minimum
|
|
|
|
|
|
