| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
Hypoid Cutter Sharpener |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

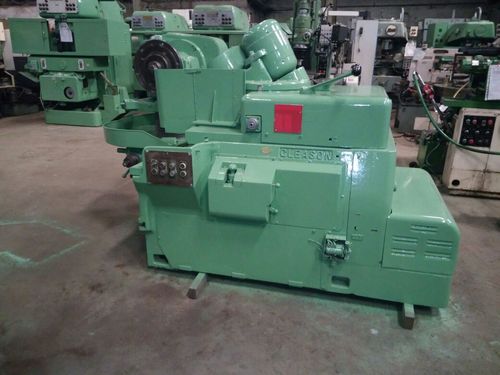

The No. 13 Gleason Hypoid Cutter Sharpener is a versatile,
precision wet type grinder for sharpening spiral bevel, hypoid, revacycle and coniflex cutters.
Automatic diamond rotation which rotates the dresser diamond approximately 9.2Degree
after each dressing cycle. Diameter of spiral cutter 3.5" - 21"
Revacycle cutters, infeed attachment 16" - 25"
Coniflex cutters 9" - 15"
Wheel size 12" x .75" x 4" bore
Wheel type 30� bevel
FEEDS & SPEEDS
Times per blade 5 sec
Feed (roughing) 0.007"
Feed (finishing) 0.002"
Wired for 3/60/230/460V
Wheel drive motor 2 HP @ 1800 RPM
Feed drive motor 1 HP @ 1800 RPM
Hydraulic pump motor 1 HP @ 1200 RPM
Coolant pump motor 0.25 HP @ 3600 RPM
Floor space 91" x 48"
Approximate weight 9,000 lbs
|
|
|
|
|
|
