| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

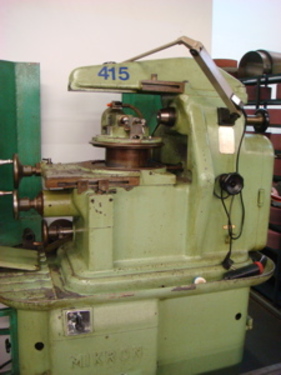

Universal Gear Hobber for smaller gears |
|
|
|
|
|
|
|
|
|
|
| Specification : |
| Work capacity:max. diameter | 120 | mm | | max. module | 2.00 | | | Workpiece length max. | 130 | mm | | Pitch min. | 6 | | | max. | 325 | | | Spiral lead: | | | | from | 2 | mm | | up to | 5000 | mm | | Spiral lead angle: | | | | from | 1 | ? | | up to | 89 | ? | | Gear hob: | | | | min. diameter | 130 | mm | | Milling cutter speeds: | | | | number (steps) | 14 | | | from | 140 | rpm | | up to | 1870 | rpm | | Feeds: | | | | axial from | 0.05 | mm/r | | up to | 3.0 | mm/r | | Voltage 50 Hz 3x | 380 | Volt | | Power | 1.50 | HP | | Machine's weight about | 800 | kg | | Overall dimensions machine: | | | | Length | 1100 | mm | | Width | 900 | mm | | Height | 1550 | mm |
|
|
|
|
|
|
