| Product Gallery : |
 1
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

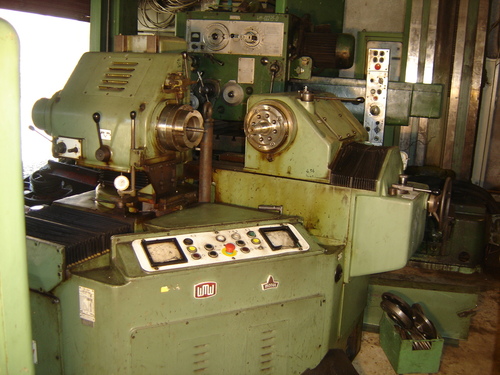

Bevel Gear Testing Machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Bevel Gear Testing Machine -WMW-MODUL - ZPLZK 500| Offer details | | Type of machine | Bevel Gear Testing Machine | | Make | WMW-MODUL | | Type | ZPLZK 500 | | Year of manufacture | 1980 | | Type of control | conventional | | | | | Country of origin | Germany | | Delivery time | immediately | | Freight basis | ex Warehouse | | Technical details | | max. wheel diameter | 500 mm | | gear width | mm | | module | 12 | | total power requirement | 5 kW | | weight of the machine ca. | 3,4 t | | Additional information | Max. / min. gear 500 / 30 mm
Max. / min. pinion 355 / 30 mm
Max. axial offset +/- 80 mm
Adjustable shaft angle 90 - 180 degree
Max. / min. distance from face of pinion spindle to gear axis 350 / 160 mm
Max. / min. distance from face to gear spindle to pinion axis 305 / 110 mm
Centre distance for spur gears 60 - 435 mm
Max. spur gear500 mm
Spindle cone 100 mm
Speeds of pinion spindle, infinitely variable 105 - 3,000 rpm
Total electrical load, approx. 5 kW - 380 V - 50 Hz
Weight, approx. 3,400 kg
Accessories / Special Features
* Basic settings of machine are by using gauges.
* Infinitely various speeds via DC drive.
* Hydraulic workpiece clamping.
* Separate switch cabinet |
|
|
|
|
|
|
