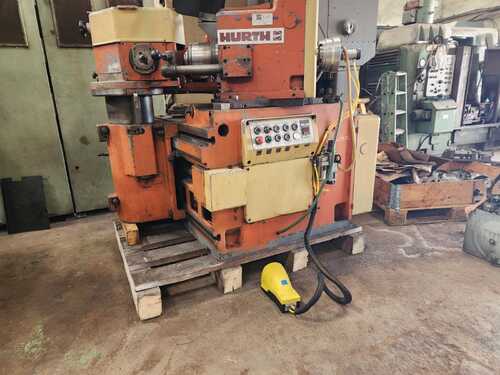

| zk 10 (with adjustable head) |
|
 |
|
|
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |
zk 10 (with adjustable head) |
|
|
|
|
|
|
|
|
|
| Location |
: |
mumbai warehouse, india |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
used tooth rounding and chamfering machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
| Technical details | | max. wheel diameter | 400 mm | | max. number of teeth | 6 - 150 | | max. module | 10 | | min. module | 1 | | number of teeth | 6 - 200 | | axial adjustment | 7 - 80 mm | | milling head return travel | 100 mm | | kneetable adjustment vertical | 650 mm | | indexing head adjustment horizontal | 565 mm | | milling head vertical adjustment | 200 mm | | swivelling of milling head | max. 90 Grad | | milling spindle - taper | SK 40 DIN 2079 | | bore | 25 mm | | hob turning speeds | 250 - 2800 U/min | | infinitely variable strokes of quill | 30 - 170 Hub/min | | quill travel | 8 - 12 - 17 mm | | main drive motor | 1,5 kW | | milling spindle motor | 1,6 kW | | total power requirement | 3,3 kW | | weight of the machine ca. | 2 t | | Additional information | for deburring, chamfering, rounding for spur and helical gears Machine With Double Spindle Fully Adjustable Heads
|
|
|
|
|
|
|
