| 250/4 With Grinding Attachment |
|
 |
|
|
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |
250/4 With Grinding Attachment |
|
|
|
|
|
|
|
|
|
| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

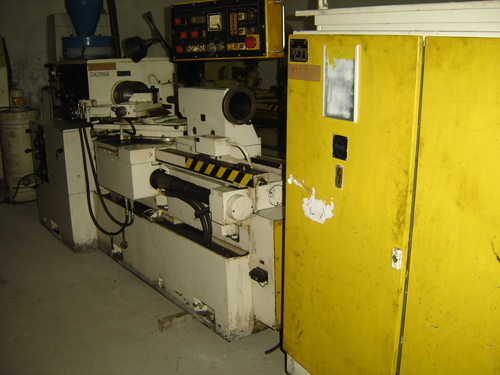

Hob Relieving Lathe Heavily Equipped |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Turning diameter over bed 300 mm
Turning diameter over slide 250 mm
Turning length 630 mm
Centre distance 1000 mm
Taper bore MK 5
Turning speed range 1 - 400 U/min
Longitudinal feeds: 0,0063 - 10 mm/U
Return movement speed 5 - 700 U/min
Electrics - voltage/frequency 380 / 50 V/Hz
Power capacity 16 kW
|
|
|
|
|
|
