| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

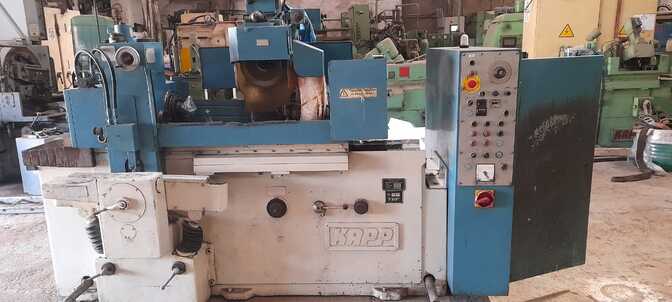

Gear Hob Sharpening Machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Technical data: - Max. centre width: 600 mm
- Centre height: 155 mm
- Maximum clamping length for arbors: 700 mm
- Max. table travel: 550 mm
- Maximum grinding depth: 90 mm
- Table speed infinitely variable: 0-16 m/min
- Axial adjustment of the grinding spindle: 220 mm
- Vertical adjustment of the grinding slide: 200 mm
- Speed of the grinding spindle in standard version: 2200 rpm
- Largest number of flutes: 44
- Swivelling range of the grinding slide on both sides: 45 degrees
- Swivelling range of the grinding spindle from the horizontal to the top: 15 degrees
- Largest grinding wheel diameter: 300 mm
- Smallest grinding wheel diameter: 150 mm
- Largest workpiece diameter: 300 mm
- Taper of the main spindle: Morse 4
|
|
|
|
|
|
