| Model |
: |

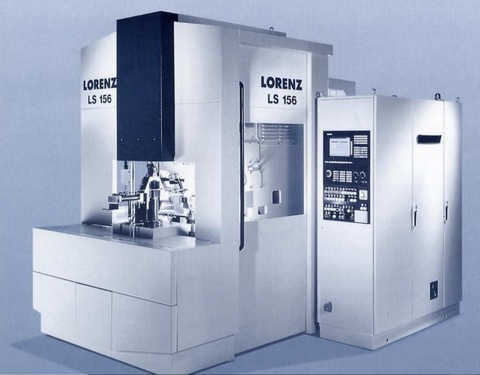

LS 156 CNC (6 Axis) |
|
|
|
|
|
|
|
|
|
| Location |
: |
Mumbai Warehouse,India |
|
|
 |
|
|
|
|
|
|
| Type of Machine |
: |
CNC Gear Shaper 6 Axis |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
CNC Gear Shaper 6 Axis with siemens 840 C System, Machine Specifications:
Type Of Control : CNC (6 Axis)
Control Name: SIEMENS 840 C
Maximum wheel diameter : 150 mm
Gear width : 42 mm
Maximum Module : 5
Minute Module : 0, 5
Maximum workpiece diameter : 280 mm
Table diameter : 250 mm
Boring diameter: 100 mm
Strokes min. / max. raised -grinding : 0-50 mm
Total power requirement : 25 kW
Weight of the machine approx.: 8.0 t
|
|
|
|
|
|
