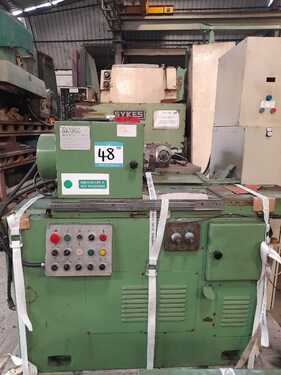

SPECIFICATIONS: 1. MAX DIAMETER OF WORKPIECE, EXTERNAL GEAR : 320 MM 2. MAX. DIAMETER OF WORKPIECE, EXTERNAL GEAR : 150 MM 3. MAX. MODULE : 6 MM 4. NUMBER OF GEAR TEETH TO BE CHAMFERING : 10 TO 120 5. DISTANCE FROM THE FRONT FACE OF CUTTER SPINDLE TO THE AXIS OF WORK SPINDLE : MANUAL OPERATION : 50 TO 200 MM POWER OPERATION : 50 TO 220 MM 6. DISTANCE FROM THE CENTER OF TAILSTOCK TO THE END FACE OF WORK SPINDLE : 220 TO 455 MM 7. DISTANCE FROM THE AXIS OF CUTTER SPINDLE TO THE END FACE OF WORK SPINDLE : 50 TO 270 MM 8. AUTOMATIC FEED RANGE OF WORKTABLE : 0.5 TO 15 MM 9. SWIVELLING RANGE OF CUTER HEAD : (+ -) 200 10. CUTTER DIAMETER : 13 & 18 MM 11. HOLE DIAMETER OF WORK SPINDLE ADAPTOR : 100MM 12. RANGE OF CUTTER SPINDLE SPEED : 1600, 2000, 2500 RPM 13. CUTTING TIME PER TOOTH : 2.59, 1.47, 0.82 SEC. 14. CUTTER SPINDLE MOTOR POWER : 1.1 KW. SPEED : 2825 RPM 15. WORK SPINDLE MOTOR POWER : 0.75 KW. SPEED : 910 RPM 16. HYDRAULIC PUMP MOTOR POWER : 1.1 KW SPEED : 1400 RPM 17. COOLING PUMP MOTOR POWER : 0.09KW FLOW RATE : 25.1/ MIN 18. OVERALL DIMENSIONS (LXWXH) : 160.55X 114.3X 130.5 CM 19. NET WEIGHT, APPROX : 2150KG
|
