Max. workpiece Ø 350 mm

Max. modulus f. hobbing cutters 8 mm

Max. addendum circle Ø 163 mm

L max. 230 mm (depending on cutter arbour Ø)

Cutter cutter Ø 22, 27, 32, 40 mm

Mounting taper MK5

Radial carriage travel 225 mm

Tangential carriage travel 170 mm

Axial carriage travel 250 mm

Max. cutter head pivoting angle +30°...-40°

#workpiece spindle outside Ø 350 mm

Workpiece spindle bore 150 mm

Counterholder travel 550 mm

Counterholder bore 150 mm

Speed - tool 120-400 rpm

Speed - tool spindle 1-40 rpm

Rapid speed on X axis 5,000 mm/min.

Rapid speed on Y axis 750 mm/min.

Rapid speed on Z axis 1,000 mm/min.

Autom. workpiece feeding unit

Cooling lubricant system

Oil mist extraction and filtering system

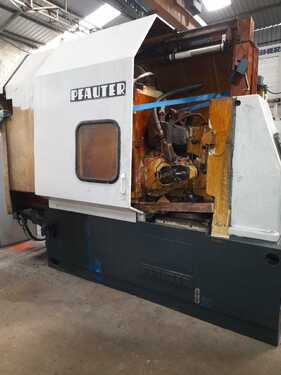

The Machine is In Excellent Condition.
The Machine can be supplied with New Controller Or Can Be sold as is where is basis .
