| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

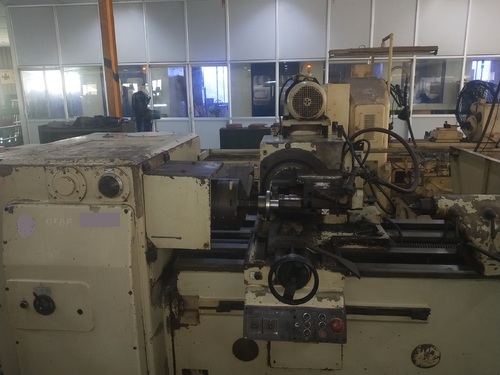

Thread Milling- and Hobbing Machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
SPECIFICATION AS:- Category | Thread Milling- and Hobbing Machine | | | Make | WMW | | Type | ZFWVG 250 x 800 | | New in | 1984/2019 | | Control | | | Origin | Germany | | | | | | | | | | | | max. workpiece diameter | 500 mm | | | threading length | 800 mm | | max. module | 3/10 | | min. module | -- | | workpiece dia. over bed | 500 mm | | hobbing length | 800 mm | | workpiece dia. over saddle | 250 mm | | center height over bed | 260 mm | | workpiece spindle bore | 102 mm | | workpiece turning speeds | 0,0034 - 2,65 U/min | | feeds - rolls | 0,027 - 5,66 mm/U | | longitudinal feeds, infinitely variable | 0,3 - 198 mm/min | | main drive | 4,0 kW | | electrics - voltage/frequency | 380 / 50 V/Hz | | total power requirement | 8,5 kW | | weight of the machine ca. | 3,3 t | | dimensions of the machine ca. | 2,8 x 2,5 x 1,6 m |
|
|
|
| Description : |
| partly overhauled in 2019
equipped with:
- Hobbing head & Thread Milling head
- Tailstock
- Coolant
- change gears (approx. 55)
- Indexing (ETE) |
|
|
|
