Category |
: |
Gear Related Machines |
|
|
|
Type of Machine |
: |
gear shaper |
|
|
|
|
|
|
|
Specification : |
max modul 8. max face width 130mm.
max diameter for external straight gears 750 mm.
max diameter for external helical gears 670mm.
max diameter for internal straight gears 450mm.
max diameter for internal helical gears. 440mm.
max degrees with helical guide.. 45 Degree.
minimum degree with helical guide. 3 Degree.
stroke per minutes.......from 42 to 240.
spindle speeds....6.
feeds...8.
spindle bore.....mm. 4,45 or mm. 31,75.
main motor....HP 5
|
|
|
Description : |

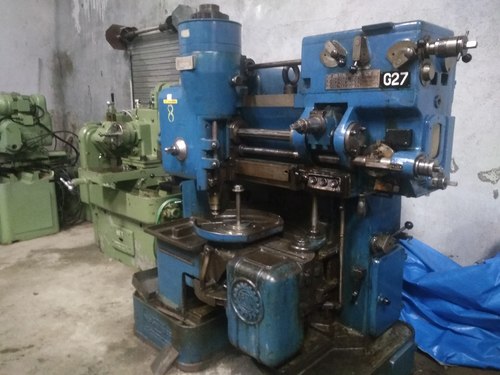

800mm Gear Shaper Heavy Duty.
|
|
|
