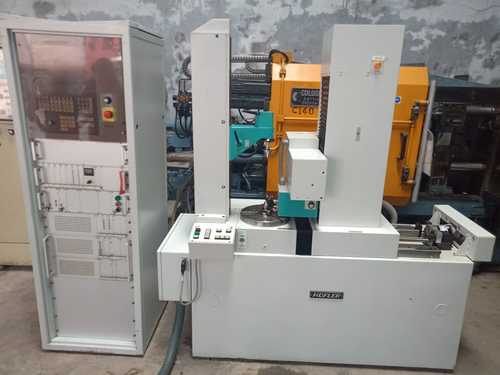

Hofler EMZ-400 Description-: 4 Axis CNC Gear Tester Technical Specifications: | - Gear Diameter range | min / max | mm | 20 / 400 | | - Range of BCD | min / max | mm | 15 / 380 | | - Module | min / max | mm | 0.5 / 20.0 | | - Helix angle. | max | Deg | + / - 60 | | - Face width. | max | mm | 500 | | - Admit Between Centers | min / max | mm | 20 / 1050 | | - Gear Height above table | min | mm | 80 | | - Job weight capacity on table | max | Kg | 350 | | - Linear Axes Least Count. | min | microns | 0.1 | | - Table Indexing Least count | min | seconds | 0.36 | | - 3-D Probe Least Count | min | microns | 0.1 | | - Power requirement (220V AC) | max | kw | 2.0 | Standard Operating & Application Features: 1. Types of Measurements - 1.0 External / Internal Involute Spur & Helical Gear 1a. Gear Tooth Involute Profile & Lead inspection 1b. Individual/Adjacent/Cumulative Pitch Errors, 1c. PCD Radial Run-out errors. 2.0 Shaving Cutter Inspection. (Optional) 3.0 Shaping Cutter Inspection. (Optional) 2. Complete Auto Cycle measurement of all parameters. 3. Machine Axes Calibration Cycle. 4. Manual Joy-stick control for axis movements. Please note :- we can sell machine as is where is basis (you can either use the same original software )
Or
We can change the and rebuilt the machine with New software and the features of the new software is
Briefed as attached
|
