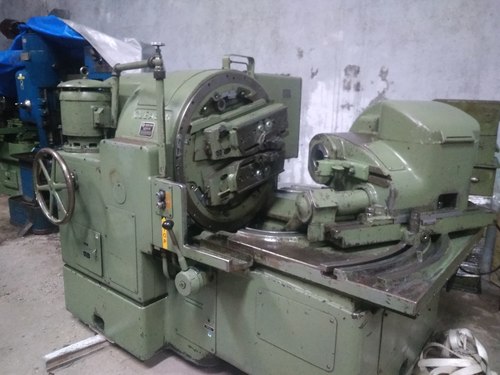

Maximum cone distance (2.75"-3.5" face)^12"

Maximum cone distance (1" face)^11-1/8"


Minimum cone distance^0"


Maximum pitch angle (angular gears)^105 deg

Maximum pitch angle (90-degree shafts)^84 deg/18min.

Minimum pitch angle^5 deg/42min.

Maximum ratio^10/1


Maximum pitch diameter^(see table)

Maximum face width^3.5"


Maximum Stroke Length^.5"-4.5"

Index Range (inclusive (+up to 200)^5-100


Maximum pitch^3 DP (nominal)

Diameter of hole in work spindle (large end)^3-29/32"

Spindle taper per foot^39/64"


Depth of spindle taper^6"

Diameter of spindle hole (15.75" deep)^3.25"

Spindle nose to center line^2.5 to 15"
