| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

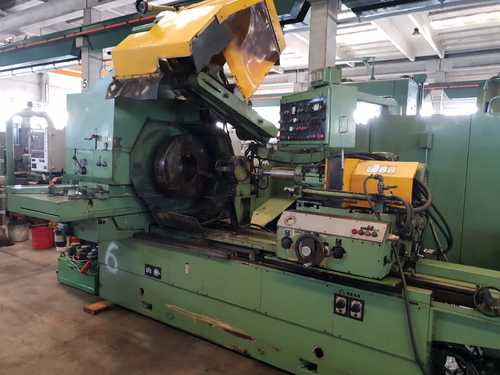

INTERNAL BORE GRINDER WITH FACING WITH BRAND NEW 7 ORIGINALS HIGH RPM SPINDLES |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
RETTIFICA PER INTERNI / INTERNAL GRINDER
WMW BWF SI 8 S
MAX. RETTIFICABILE/MAX WORKING Ø 630 MM.
MIN. RETTIFICABILE/MIN WORKING Ø 75 MM.
MAX. PROFONDITA’ RETTIFICABILE/MAX WORKING DEPTH 500 MM.
MAX. AMMESSO IN ROTAZIONE/
MAX DIAMETER IN ROTATION 800 MM.
CORSA TRASVERSALE TESTA PORTA PEZZO/
TRASVERSAL STROKE OF WORKPIECE HEAD 650 MM.
VELOCITA’ DELLA TESTA PORTA PEZZO - N. 9/
SPEED OF WORKPIECE HEAD 16 - 250 G/MIN.
MAX. INCLINAZIONE TESTA PORTA PEZZO/
MAX WORKPIECE HEAD INCLINATION 30°
CORSA TAVOLA PORTAMOLA/
WHEEL TABLE STROKE 1.200 MM.
VELOCITA’ DI ROTAZIONE MOLA/
SPEED REVOLUTIONS OF WHEEL 35 MT/S.
MIN./MAX. MOLA/
MIN/MAX WHEEL DIAMETER 40 - 250 MM.
POTENZA MOTORE MOLA/
WHEEL MOTOR POWER 11 KW.
POTENZA TOTALE INSTALLATA/
TOTAL POWER REQUIRED 21 KW.
PESO TOTALE/TOTAL WEIGHT 9,5 TONN.
COMPLETA DI/COMPLETE WITH:
- AUTOCENTRANTE 600 MM/AUTO CENTERING Ø 600MM.
- APPARECCHIO A SFACCIARE/FACING DEVICE
- VASCA CON FILTRO/FILTERING TANK
- MANDRINI PER INTERNI VARI/INTERNAL SPINDLES
|
|
|
|
|
|
