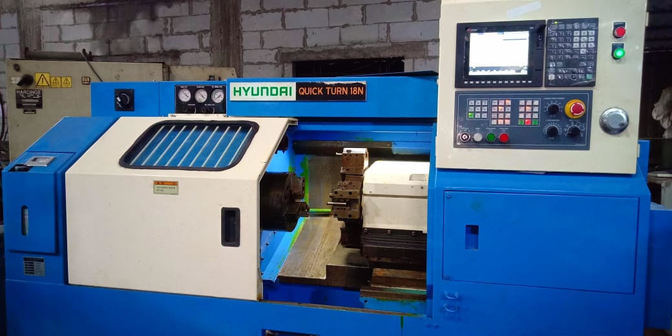

Make :-Hyundai

Model :-QT18N

Controller :-  Mazatrol T32B

Country:- Korea

Type of machine :- CNC Lathe (Choice Of Three Similar Machines)

Mazak licensed Hyundai to build the Quick Turn models

Specification Description

Maximum Swing 17.32"

Swing Over Bed 10"

Maximum Cutting Diameter 11.81"

Maximum Machining Length 19.69"

X-Axis Travel 7.09"

Z-Axis Travel 20.08"

Spindle Nose A2-6

Spindle Bore 2.44"

Spindle Speed Range 45 - 4500 RPM

Spindle Motor 20/15 HP

Number of Tool Stations in Turret 8

Rapid Traverse Rate 1180 IPM

Cutting Feed Rates 197 IPM

Tailstock Quill Diameter 3.15"

Tailstock Center MT #4

Approximate Machine Weight 9300 LBS

Equipped With:

Mazatrol T32 CNC Control

Tool Presetter

Tailstock
