| Model |
: |

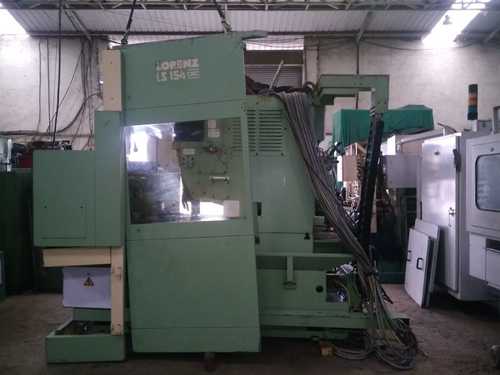

LS154 ( CNC 6 AXIS ) |
|
|
|
|
|
|
|
|
|
| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
CNC Gear Shaper 6 Axis |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
CNC Gear Shaper 4 Axis with siemens 828 System,
Machine Mechanical Specifications: | Pitch rating depending on application | 5 DP | Mod 5 mm | | Maximum workpiece external diameter | 6" | 152 mm | | Maximum workpiece internal diameter | 11" | 280 mm | | Maximum tooth width (face width) | 1.65" | 42 mm | | Maximum axial travel | 2.56" | 65 mm | | Rapid travel - C (Cutter) | 190"/min | 4830 mm/min | | D (Table) | 380"/min | 9660 mm/min | | X | 70"/min | 1800 mm/min | | Z | 70"/min | 1800 mm/min | | Maximum X travel | | 175 mm | | Minimum X travel | | -30 mm | | Maximum Z travel | | 65 mm | | Minimum Z travel | | 0 mm | | Stroking motor power | 25 HP | 18.5 kW | | Stroking speed range, infinitely variable | 100-1250 Strokes per minute | | Stroking Guide | Hydrostatic, Spur |
Machine Equipment List: - Power Clamping
- Tailstock
- 4" Riser block
- Spring Leveling Wedges
- Servo controlled cutter elevation
- Cutter positioning
- Chip conveyor
|
|
|
|
|
|
