| Type of Machine |
: |

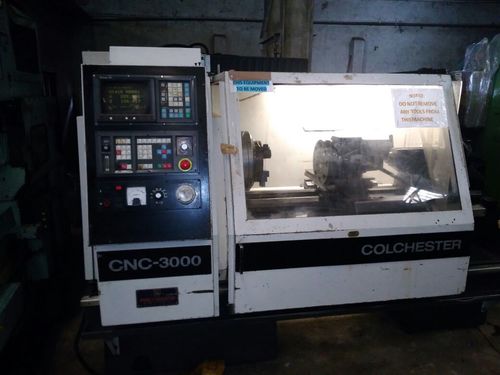

CNC Lathe |
|
|
|
|
|
|
|
|
|
|
| Specification : |
| Distance between centers | 1000 mm | | Height of centers | 215 mm | | tailstock center sleeve diameter | 74,6 mm | | Stroke of the sleeve | 230 mm | | max. admitted diameter over the bed | 433 mm | | Maximum swing over cross-slide | 267 mm | | Hole through spindle | 76 mm | | Width of the bed | 343 mm | | Spindle speed | 20 - 1600 RPM | | Maximum swing in gap | 711 mm | | Spindle nose | Camlock D1 8" | | Spindle taper | CM 5 | | Spindle motor | 9.3 KW | | Dimensions | 2700 x 2000 x 1800 mm | | Approximate weight (Kg) | 2650 kgs |
|
|
|
|
|
|
|
|
