| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

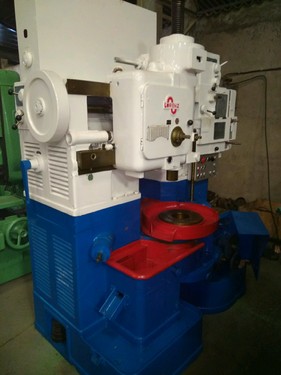

Gear Shaper Machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Max wheel Ø 500 mm
Module + 5
Max. gear width 100 mm
Length x width x height 1800 mm × 2300 mm × 1100 mm
Weight 5000 kg
|
|
|
| Description : |
|
Max gear shaping length: 75 mm
Module 5
Number of strokes / min of the cutter: 45/424
Cutting speed: 18
Screw diameter: 78 mm
Max gear shaping diameter: 500 mm
Max external gear shaping diameter: 500 mm
Max internal gear shaping diameter: 450 mm
Hole diameter of the table: 125 mm
Diameter of table: 310 mm
Machine dimensions: 2300 x 1800 x 1100 mm
Machine weight: 5000 kg
Total power: 3 Kw
Voltage: 220 / 380V
|
|
|
