| LS 150 (January rebuilt 2017) |
|
 |
|
|
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |
LS 150 (January rebuilt 2017) |
|
| Make |
: |
Lorenz (Ex European Aerospace Company Machine) |
|
|
|
|
|
|
|
|
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
2-Axis CNC Gear Shaping Machine and Siemens 808D Advance System |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

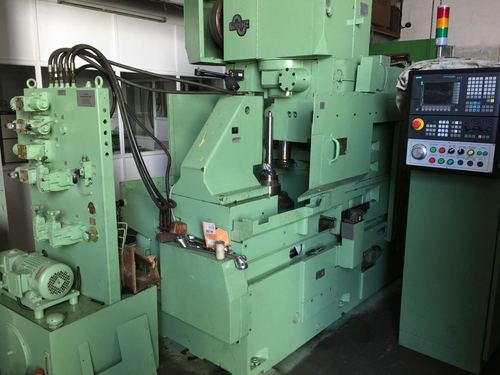

Rebuilt LS-150, 2-Axis CNC Gear Shaping Machine with Siemens 808D Advance System,
This Ex Aerospace machine Is Like New , Original system was Num 1030.
Brand : Lorenz
Model : LS-150 (CNC)
2-Axis CNC Gear Shaping Machine From European Aircraft Factory
Variable Speed Stroke
Cutter Positioning
Chip Conveyor
Coolant
Hydraulic Clamping
External Gears OD :- 150mmx 6 Module
Internal Gears Max. 100 + Cutter 0mm.
Length of Stroke 0 - 50mm
Adjustment of Stroke 0 - 70mm
No. of Double Stroke per Min. Approx. 355/375/400/1060/1120/1200
Radial Feed, Infinitely Variable 2.65 - 100 mm/min.
Shaping Feed 160 - 6500 mm/min.
Table Size 250 mm
Table Bore 100 mm
Distance Between Table and Shaper Head 265 mm (approx.)
Weight 6500 kg Full Guardings, Chip Conveyor , Hydrostatic Static Guide , Spur Guide ,
|
|
|
|
|
|
