Excellent condition
Manuals avilable
Double pallet CNC Drill Tapp Center

  2. Category List
  3. Drill & Tap Centre CNC
  4. TC 323

Drill & Tap Centre CNC

Add this Favourite
Download Product PDF Enquiry / Quote / Interested For Agents Download Pics Download Photo / Zip

Enlargeable Images :

Video
Machine Id: 894 Serial No:
Model: TC 323 Asking Price: onrequest
Make: Brother Country: United States
Year: Weight: 0.0
Dimensions: Location: Mumbai WareHouse, India
Power:
Category: Drill & Tap Centre CNC
Type of Machine: CNC Dual Pallet Drill & Tap Center
Specification
Year: 1994
Make: Brother
Model: TC323

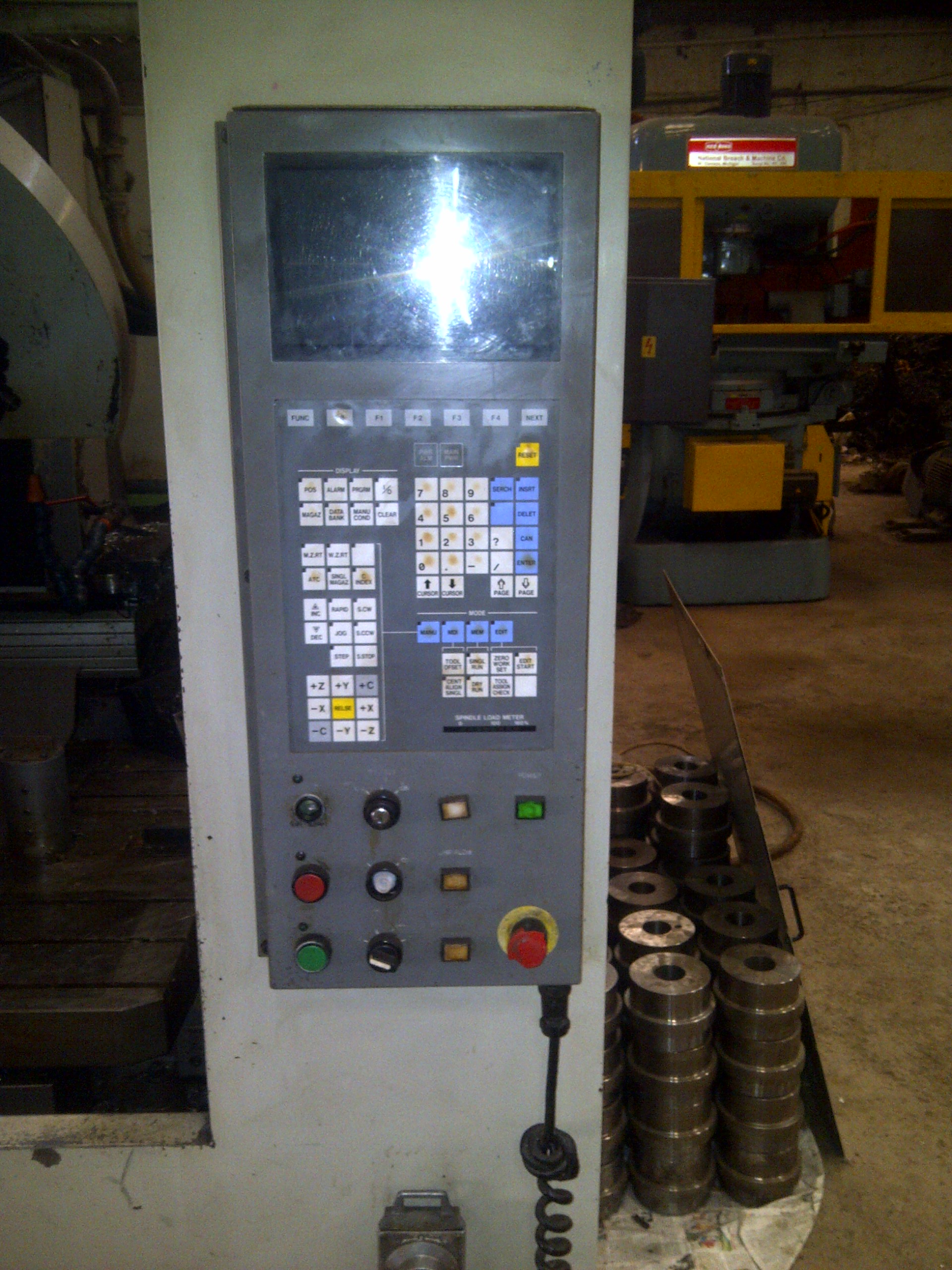

Control: Brother CNC-730
Maximum & Minimum distance from table to spindle: 450 - 200mm
Maximum Spindle Centre to Column: 300mm
Number of Pallets: 2
Pallet Size: 500 x 300mm
Rapid Feedrates: 30m/minute
Spindle Speed: 6 - 10000rpm (4000rpm Tapping max. Speed)
Spindle Taper: BT30
Tool Change Capacity: 10 Station
Traverses XYZ: 420 x 300 x 250mm
Description:
Coolant, Interlocked guards, Low Volt Light
