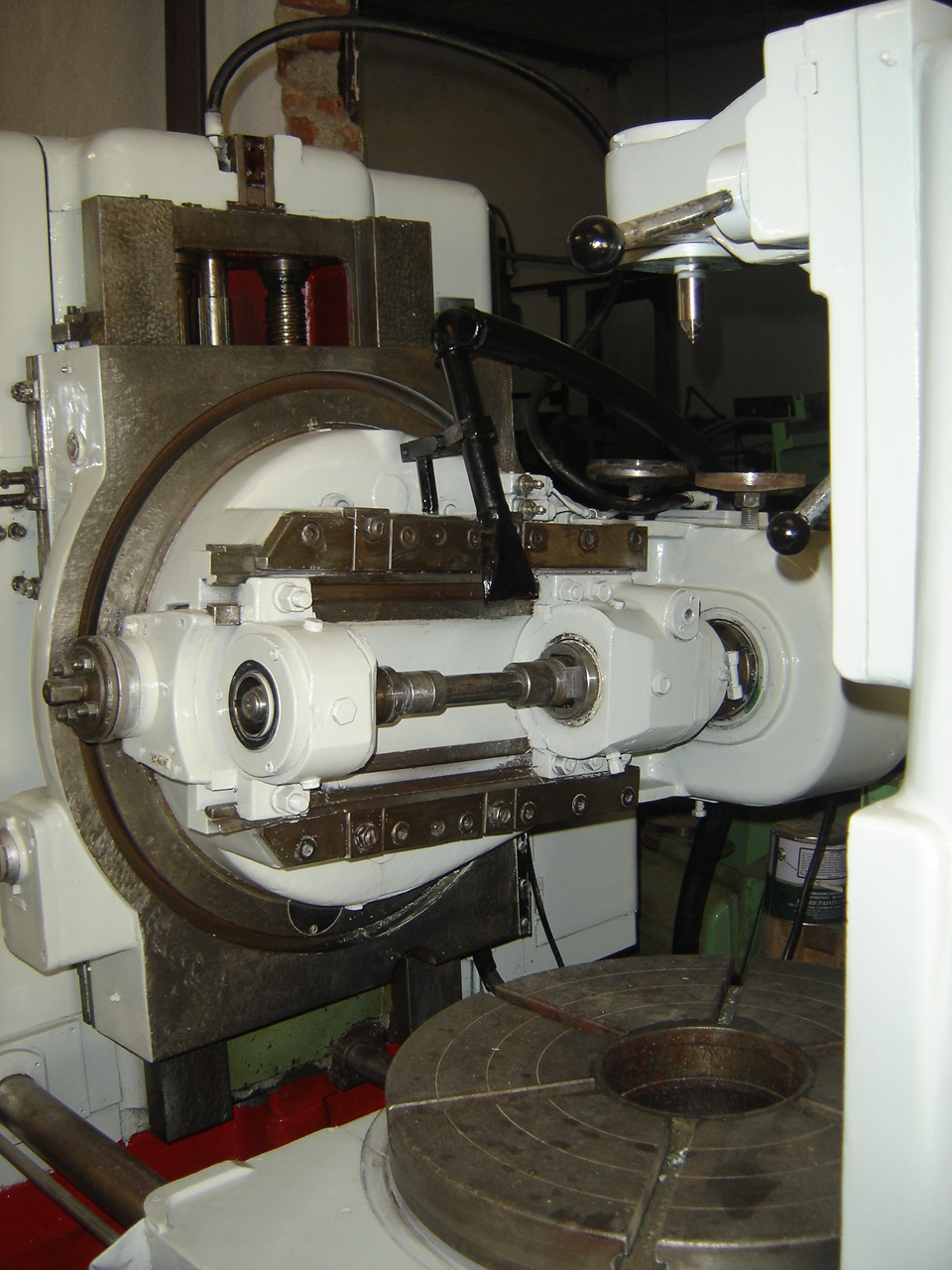

EQUIPPED WITH: Hob Arbor
26"T-Slotted Table
Auto Cycle
Differintial
Coolant Splash Guards
SPECIFICATIONS: Maximum Wheel Diameter.....................................800mm Maximum Gear Width.........................................410mm Maximum Module.............................................10 Mod Maximum Hob Diameter.......................................195mm Table Diameter.............................................700mm Turning Speed Range........................................40-280 U/Min. Power Capacity.............................................12.5 Kw Voltage/Frequency..........................................220/50 V/Hz Feed-Axial.................................................0.2-8 mm/min. Feed-Radial................................................0.1-2 mm/min. Feed-Tangential............................................0.1-2 mm/min.
