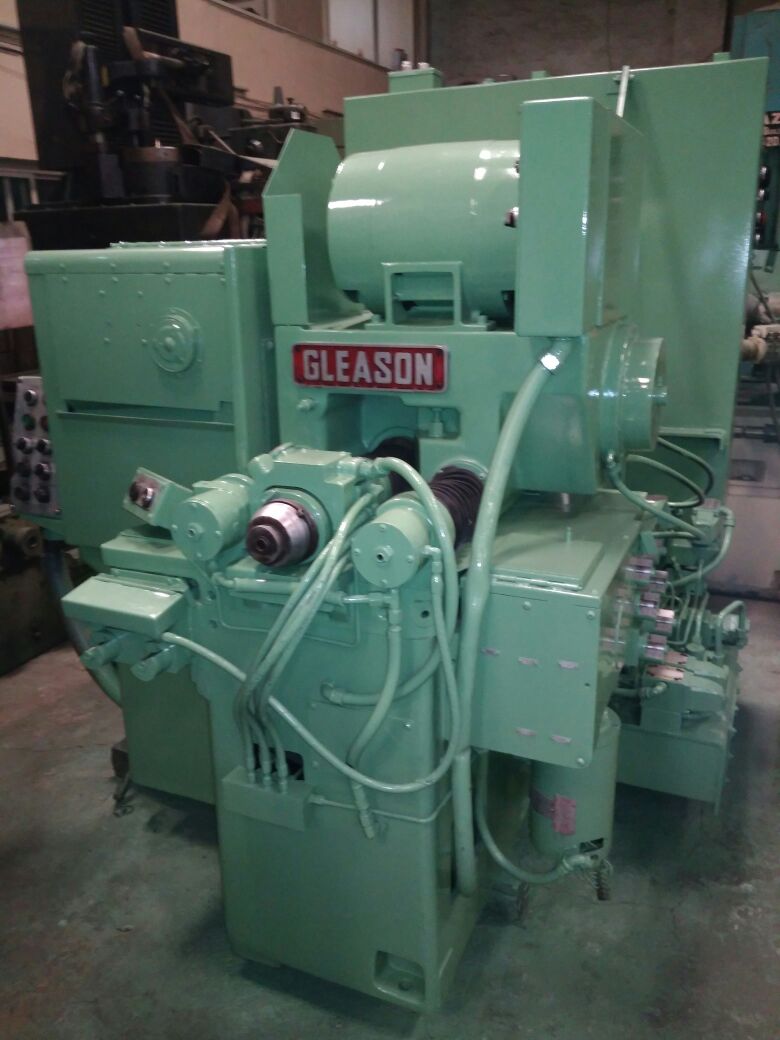

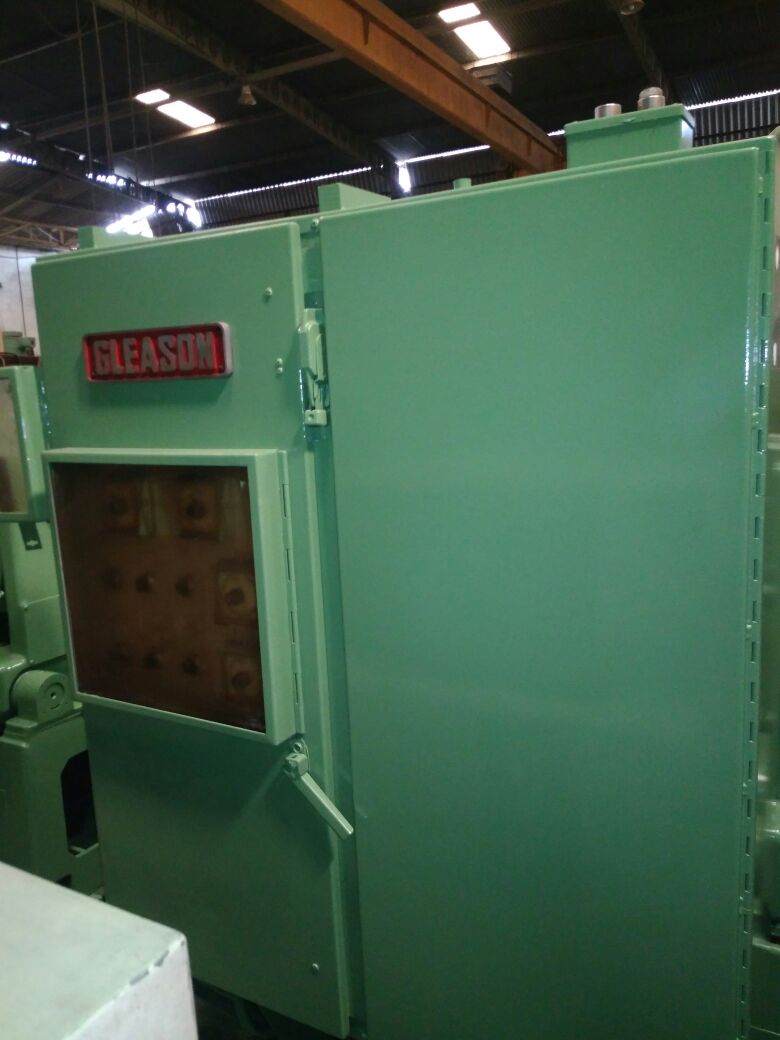

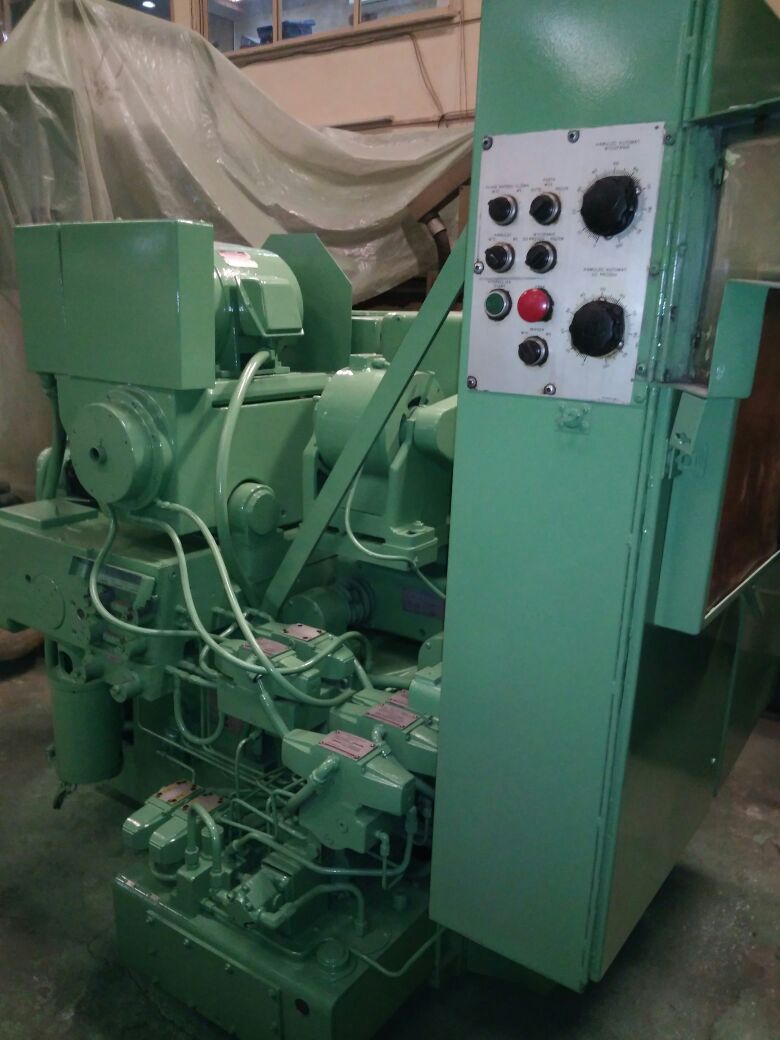

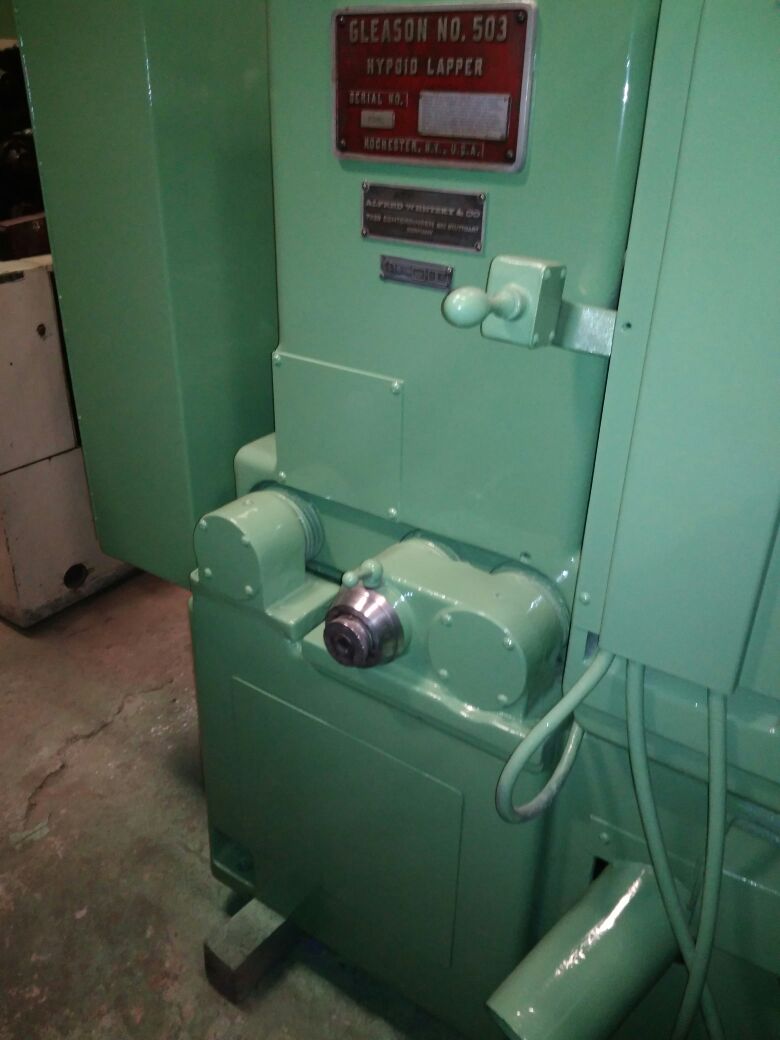

Used Hypoid Gear Lapper , overhauled in 1999 and since then it has been in use very little.. Eddy Brake,Hydraulic chucking to both heads.Pinion and cone motion switches 4 front and 6 at side.Very good machine

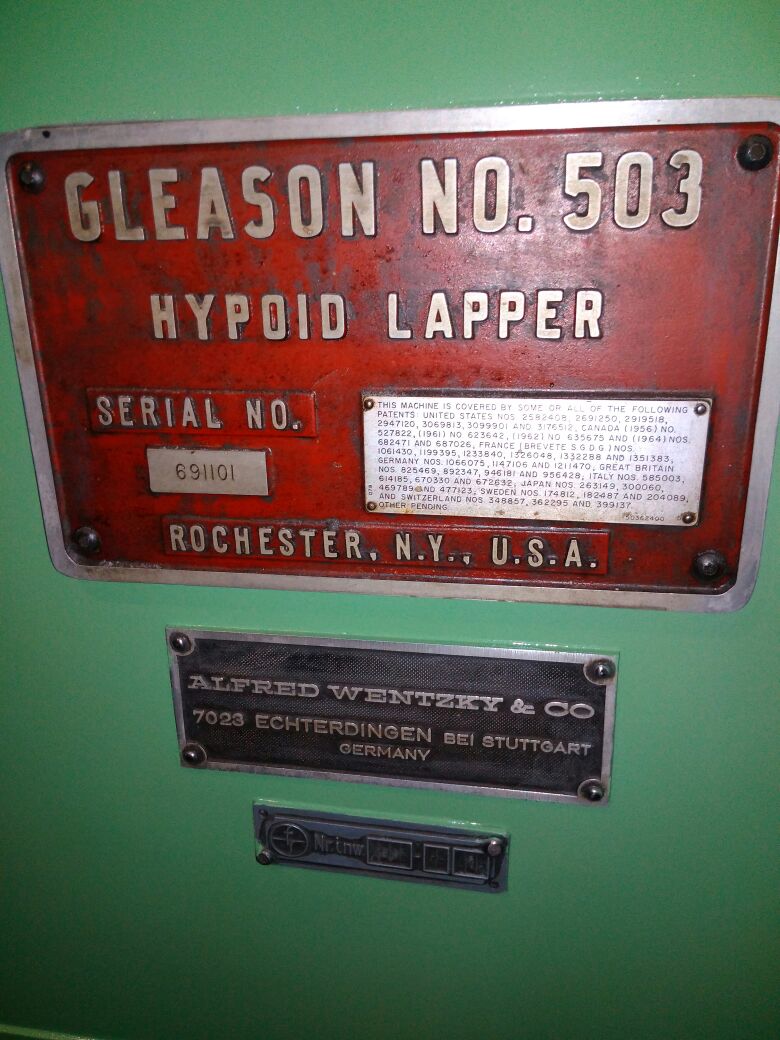

Machine Id: 814 Serial No: 691101
Model: 503 Asking Price: onrequest
Make: Gleason Country: United States
Year: Weight: 0.0
Dimensions: 1800x1600x1700 Location: Our Own Stock
Power:
Category: Gear Lapper
Type of Machine: used gear lapper
Specification

Used Hypoid Gear Lapper ,overhauled in 1999 and since then it has been in use very  little.

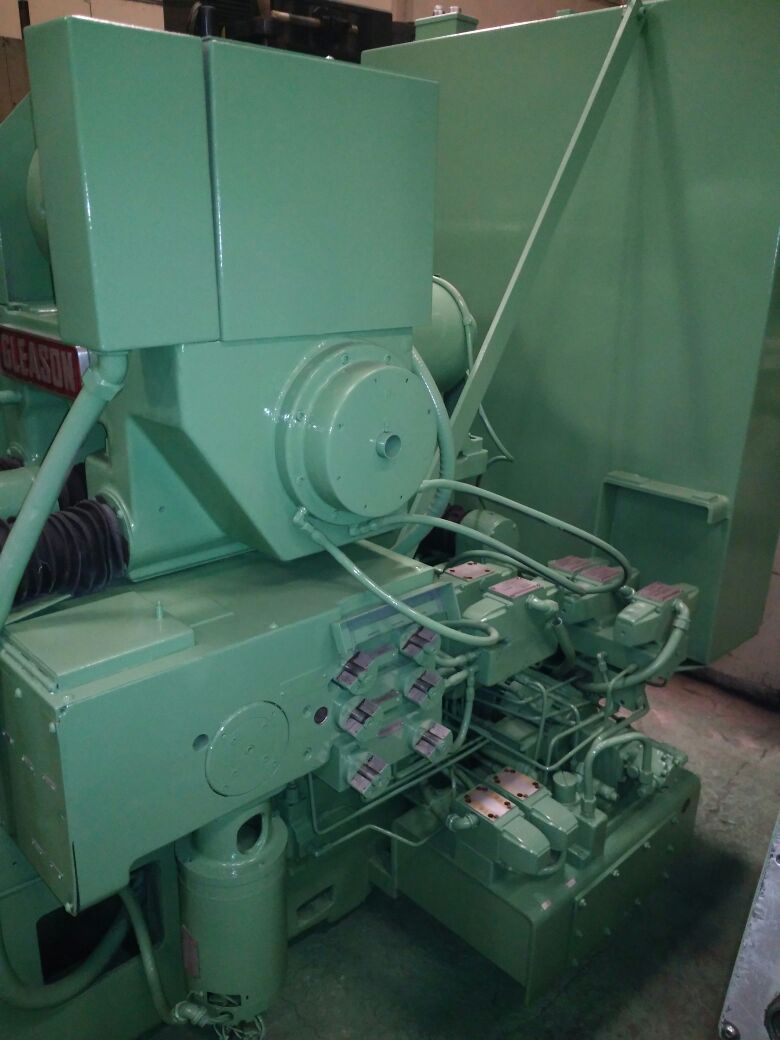

Brake,Hydraulic chucking to both heads.


Pinion and cone motion switches 4 front and 6 at side.


Very good machine

Maximum Gear Diameter  266mm,


Maximum Pinion Diameter 152mm

Pinion Spindle :

Diameter of taper hole at large end  100mm,
taper /foot 15mm,


depth of taper


Diameter of hole through spindle 63mm.

Gear Spindle :-

Diameter of taper at large end  58mm


Taper/foot   13mm


Depth of Taper  76mm


Diameter of hole through spindle 55m.

Maximum Gear Diameter

: 266mm

Maximum Pinion Diameter

: 152mm

Pinion Spindle :



Diameter of taper hole at large end

: 100mm

taper /foot , depth of taper

: 15mm

Diameter of hole through spindle

: 63mm

Gear Spindle :



Diameter of taper at large end

: 58mm

Taper/foot

: 13mm

Depth of Taper

: 76mm

Diameter of hole through spindle

: 55mm

Description

Used Hypoid Gear Lapper , overhauled in 1999 and since then it has been in use very little.. Eddy Brake,Hydraulic chucking to both heads.Pinion and cone motion switches 4 front and 6 at side.Very good machine
