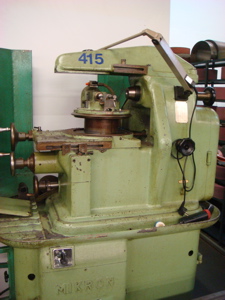

Machine Id: 589 Serial No:
Model: 102.05 Asking Price: onrequest
Make: Mikron Country: Switzerland
Year: 1980 Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Gear Related Machines
Type of Machine: Universal Gear Hobber for smaller gears
Specification
Work capacity:max. diameter120 mm
max. module2.00
Workpiece length max.130 mm
Pitch min.6
       max.325
Spiral lead:
    from2 mm
    up to5000 mm
Spiral lead angle:
    from1 ?
    up to89 ?
Gear hob:
    min. diameter130 mm
Milling cutter speeds:
    number (steps)14
       from140 rpm
       up to1870 rpm
Feeds:
       axial from0.05 mm/r
       up to3.0 mm/r
Voltage 50 Hz 3x380 Volt
Power1.50 HP
Machine's weight about800 kg
Overall dimensions machine:
    Length1100 mm
    Width900 mm
    Height1550 mm



Description
