Fully Double Head automatic milling cyclesAuto indexing Facility1000mm Job can be done

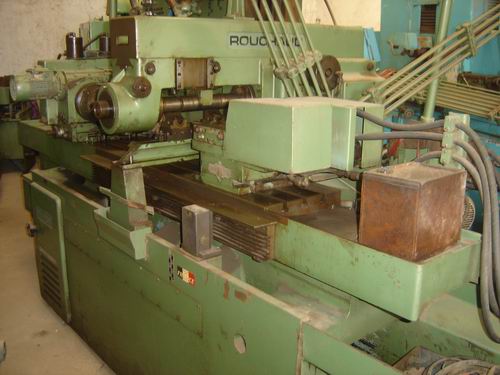

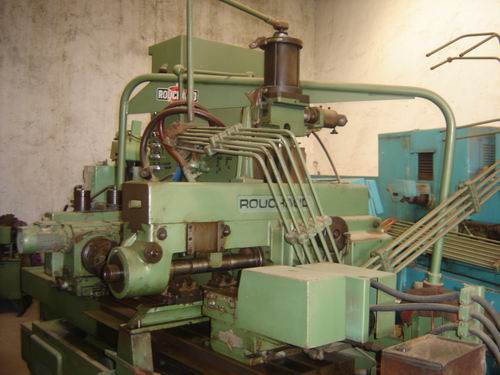

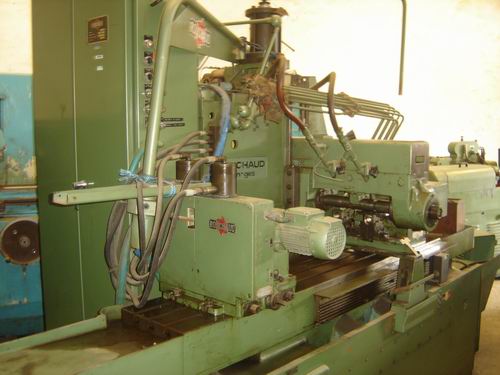

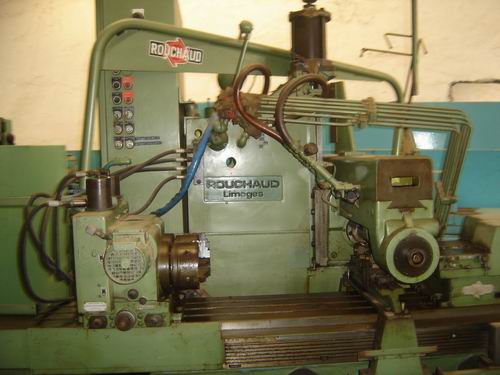

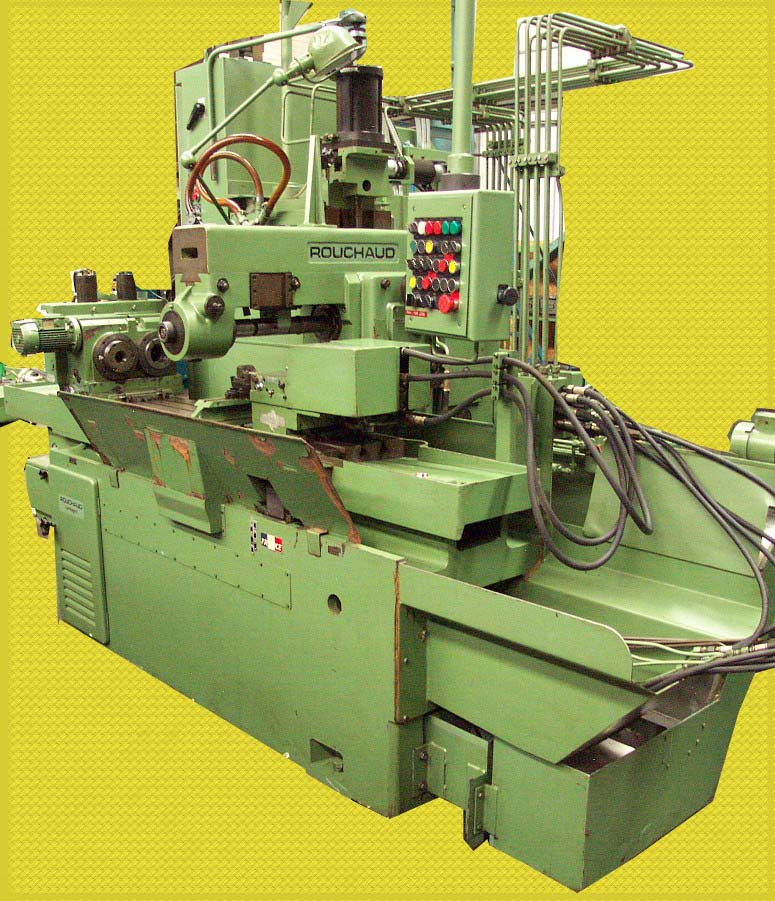

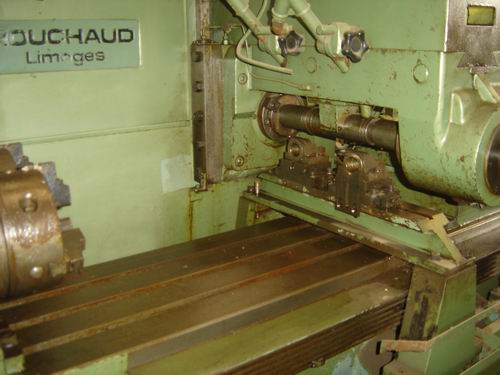

ROUCHAUD Model TC80 HORIZONTAL SPINDLE SPLINE MILLING MACHINE,
Overall table size...... 1800 x 320 mm Max traverse of table...... 1000 mm Max length of shaft admitted between centres... 965 mm Max distance spindle centre to table........... 500 mm Spindle speeds (change gears).....10........ 80 to 630 rpm Spindle nose....... No.50 INT Spindle motor...... 5.5 KW
Complete with:-
Fully automatic milling cycles.
Power rise & fall spindle carrier.

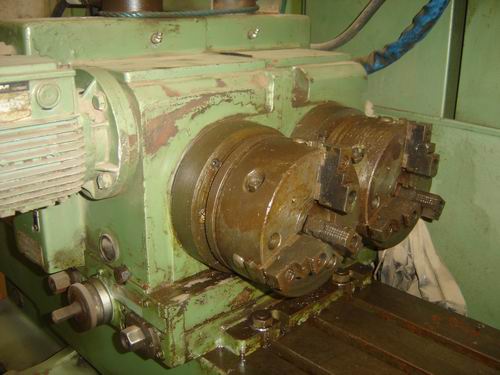

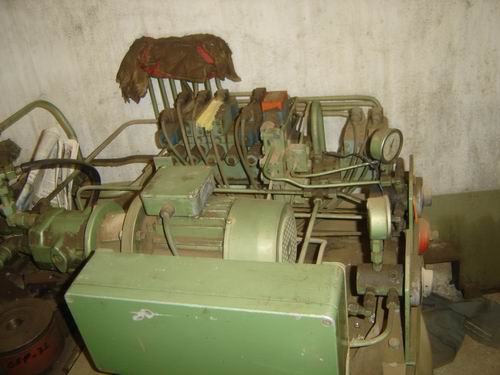

Twin spindle automatic indexing head & hydraulic

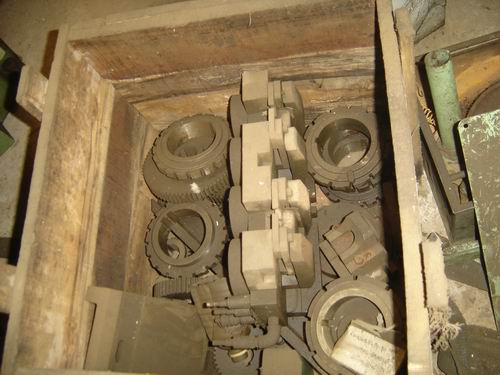

tailstocks having a selection of index plates.
Work arbor & arbor support.
Adjustable table mounted work steadies.
Change gears for spindle speed changes.
Automatic lubrication.
Guards.
Coolant tank, pump & fittings.
Swarf conveyor.
Pendant controls.
Electrics 440, 3, 50.
