Excellent Machine

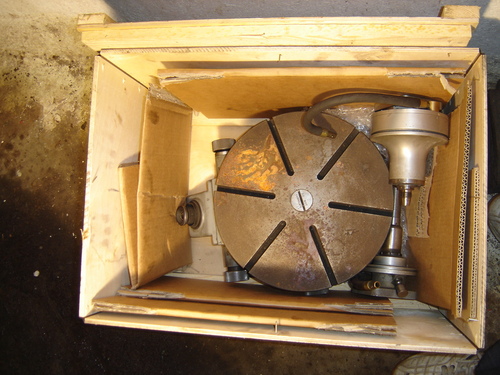

Heavily Equipped with Rotary Table
Grinding Heads etc

  2. Category List
  3. Jig Grinders
  4. number 2

Jig Grinders

Download Product PDF Enquiry / Quote / Interested Add this Favourite For Agents

Enlargeable Images :

Download Photo / Zip
Video

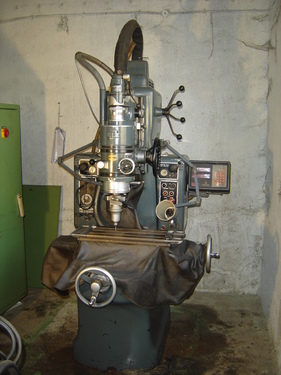

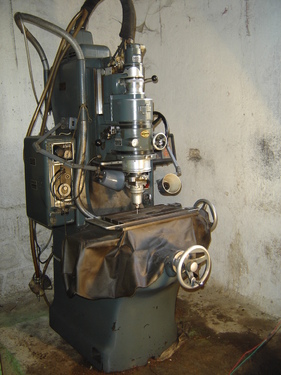

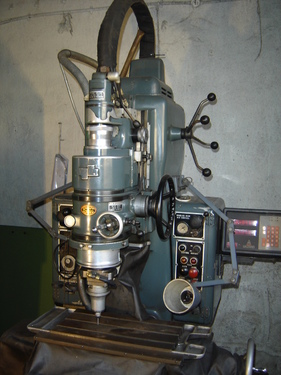

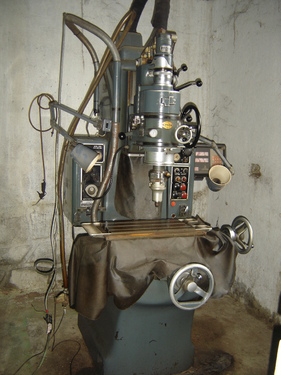

Machine Id: 190 Serial No: 2406
Model: number 2 Asking Price: onrequest
Make: moore Country: United States
Year: 1980 Weight: 0.0
Dimensions: 58.5 " x 57.5 " x 91 " Location: Mumbai Warehouse, India
Power:
Category: Jig Grinders
Type of Machine: used jig grinding machine
Specification

Table Size  : 11" x 24"

Table Travel, longitudinal : 18"

Table Travel, cross  : 11"

Spindle Housing Vertical Travel : 12.62"

Spindle Vertical Travel  : 3.62"

Table Top to Wheel Collet  : 2" - 18"

Spindle to Column Ways  : 13.5"

Main Spindle Speeds (variable)  : 25-225 rpm

Spindle Feeds (variable)  : 2 - 210 cycles/min

Grinding Diameter Capacity  : 0.015" - 3.5"

Max.Angular Adjustment of Spindle : 1.5 deg

Description

Machine is equipped with push button controls, Way covers, Moore cabinet,DRO
