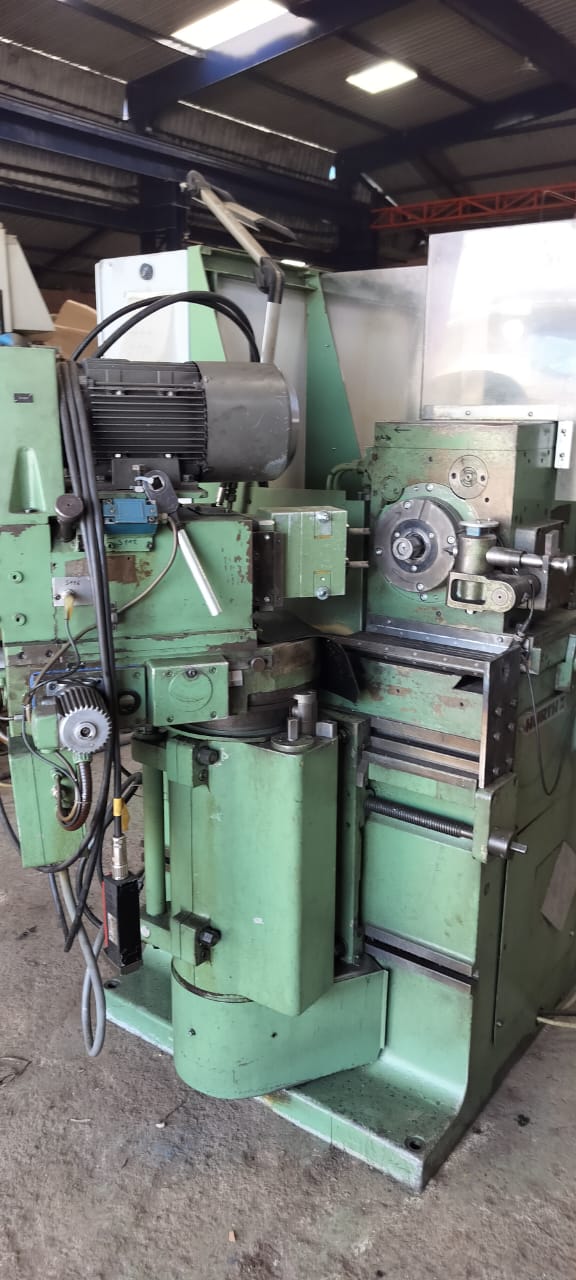

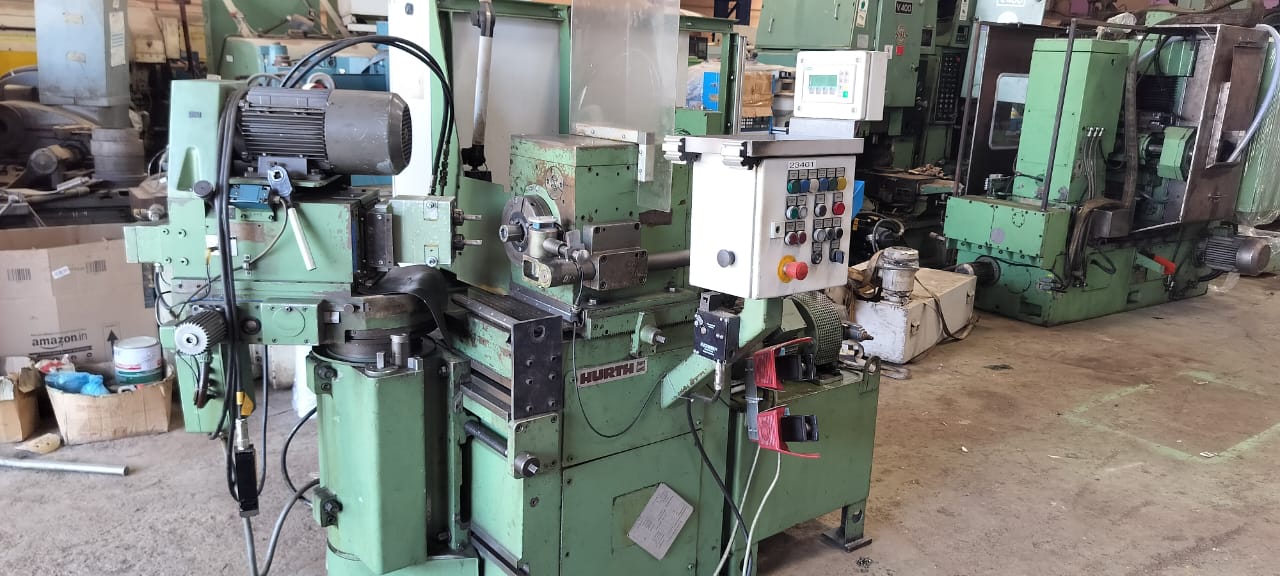

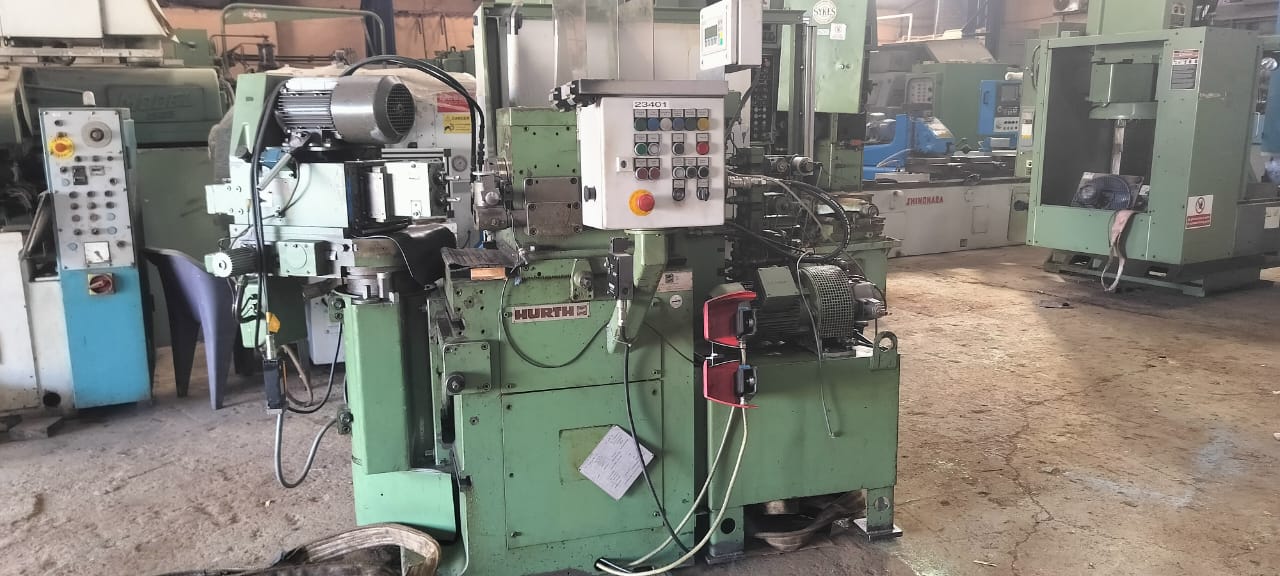

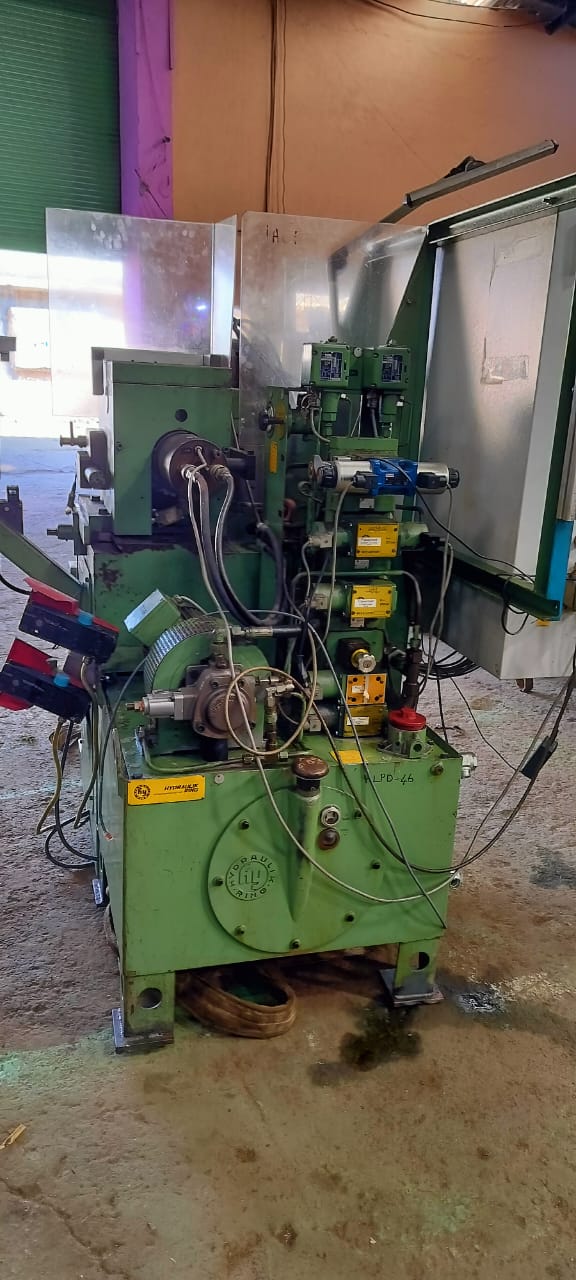

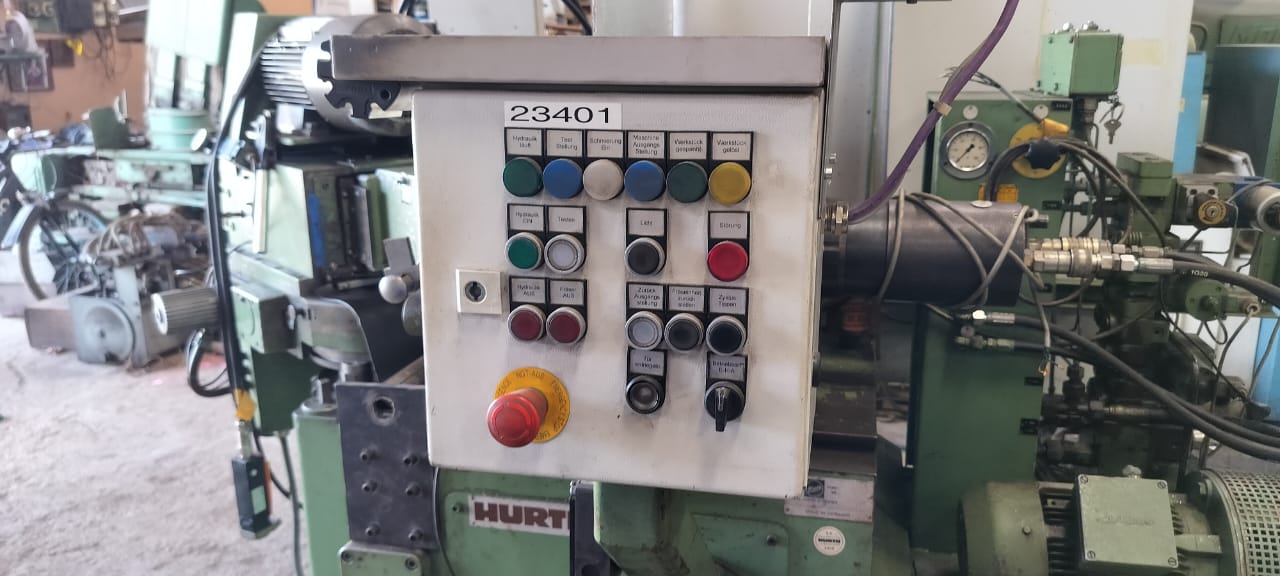

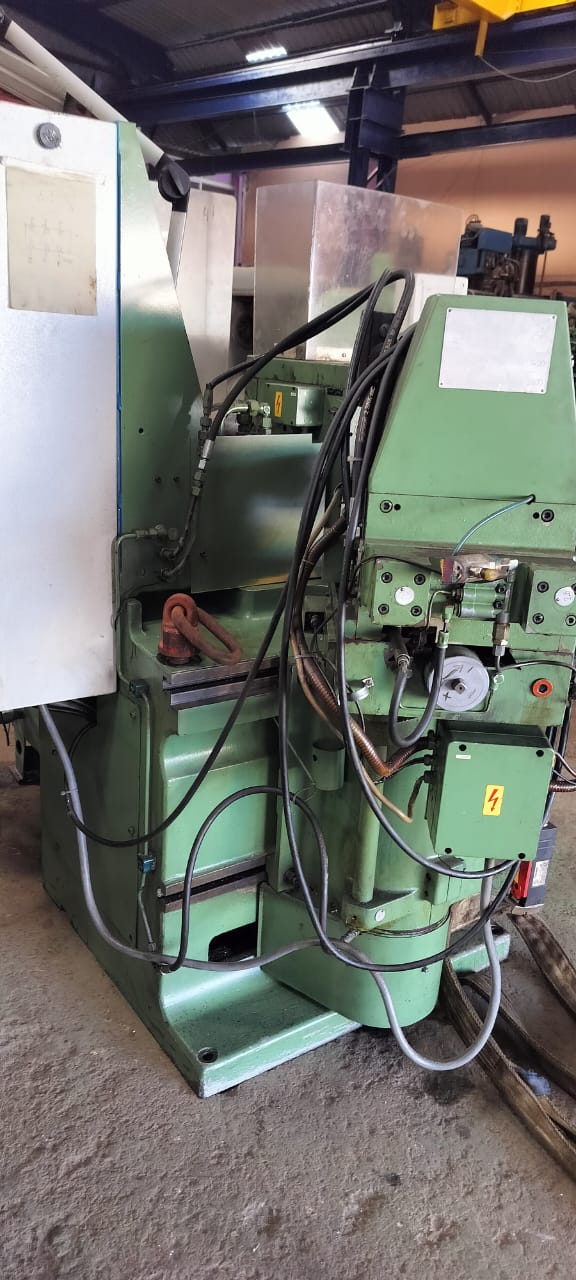

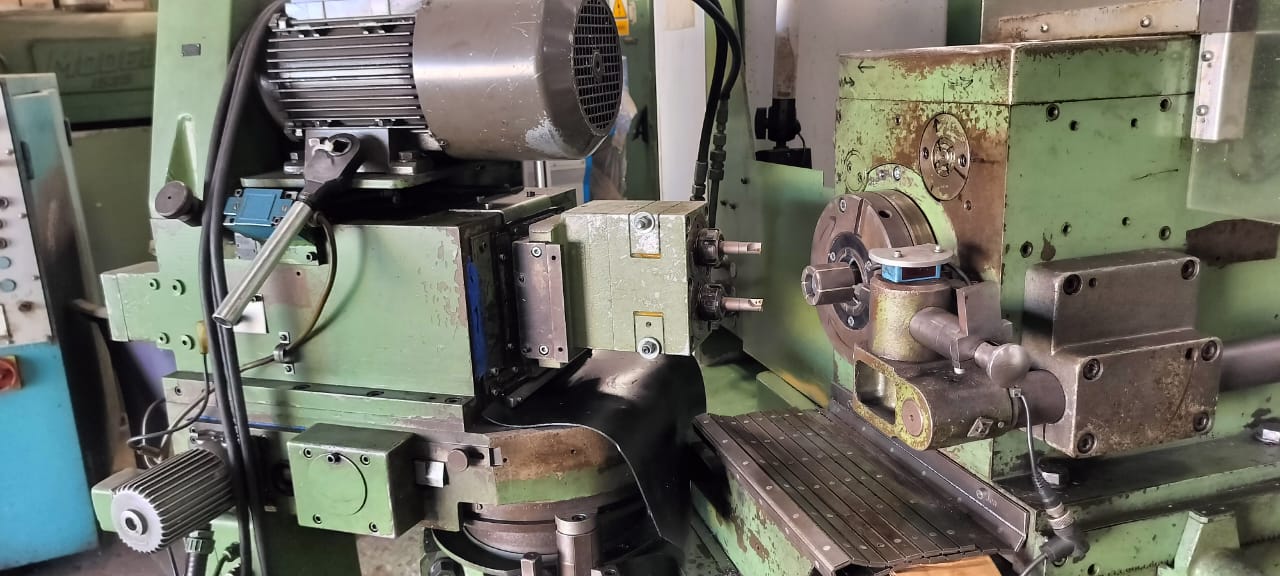

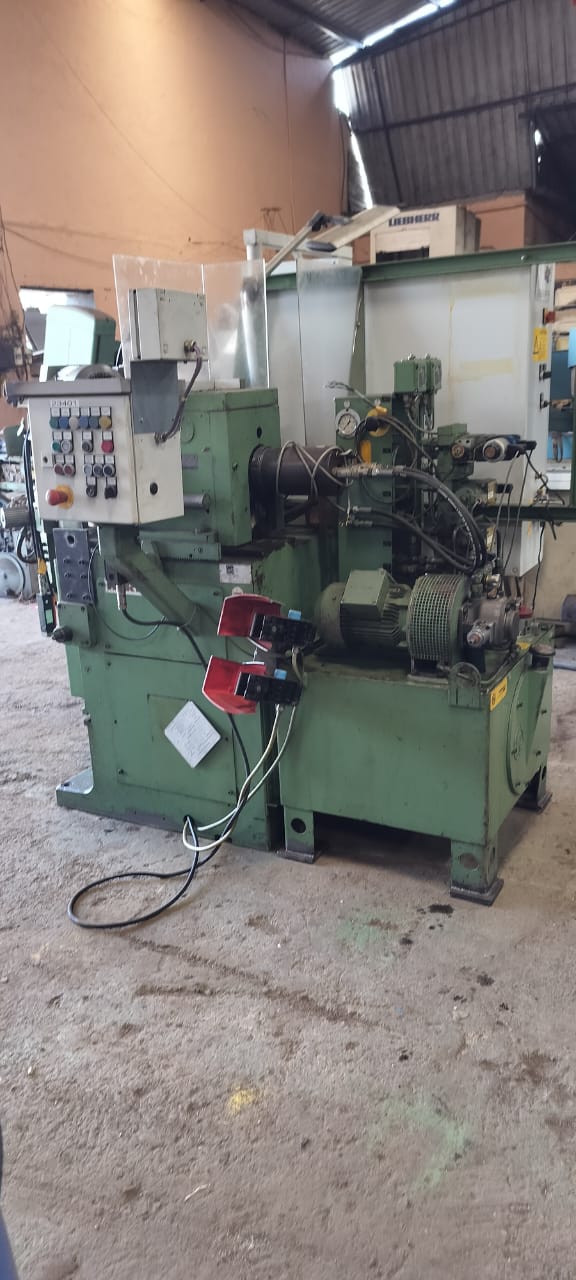

Gear Chamfering Machine

SPECIFICATIONS:

MAX. DIAMETER OF WORK PIECE 11"

WORK PIECE SIZE/CHAMFERED 1 TO 4 MOD

WORK PIECE SIZE/DEBURRED 1 TO 6 MOD

NUMBER OF TEETH 6-100

TAPER OF CUTTER SPINDLE ISO 40

CUTTER SPINDLE SPEEDS 250/350/500/700/1000
1400/2000/2800 RPM

DIAMETER OF WORK SPINDLE BORE 4.7"

CUTTER SLIDE FINE ADJ. RANGE 1.2"

CUTTE SLIDE RETURN STROKE 3.9"

RANGE OF CUTTER SLIDE VERT. ADJ. 7.0"

CUTTER SLIDE SWIVEL RANGE 4.1"

DESCRIPTION:

RANGE OF KNEE HORZ. ADJ. 15.7"

RANGE OF INDEX HEAD HORZ. ADJ. 13.3
