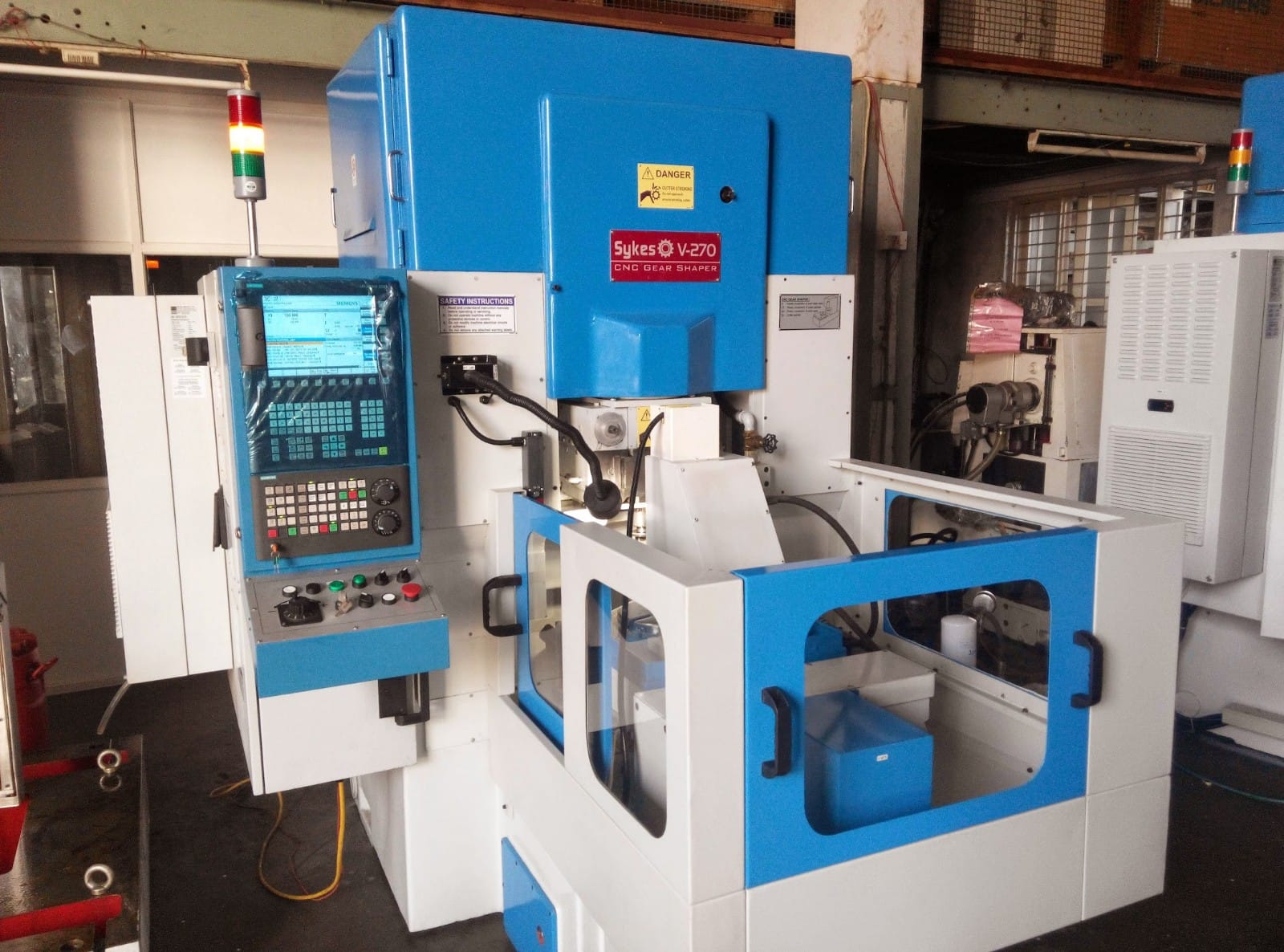

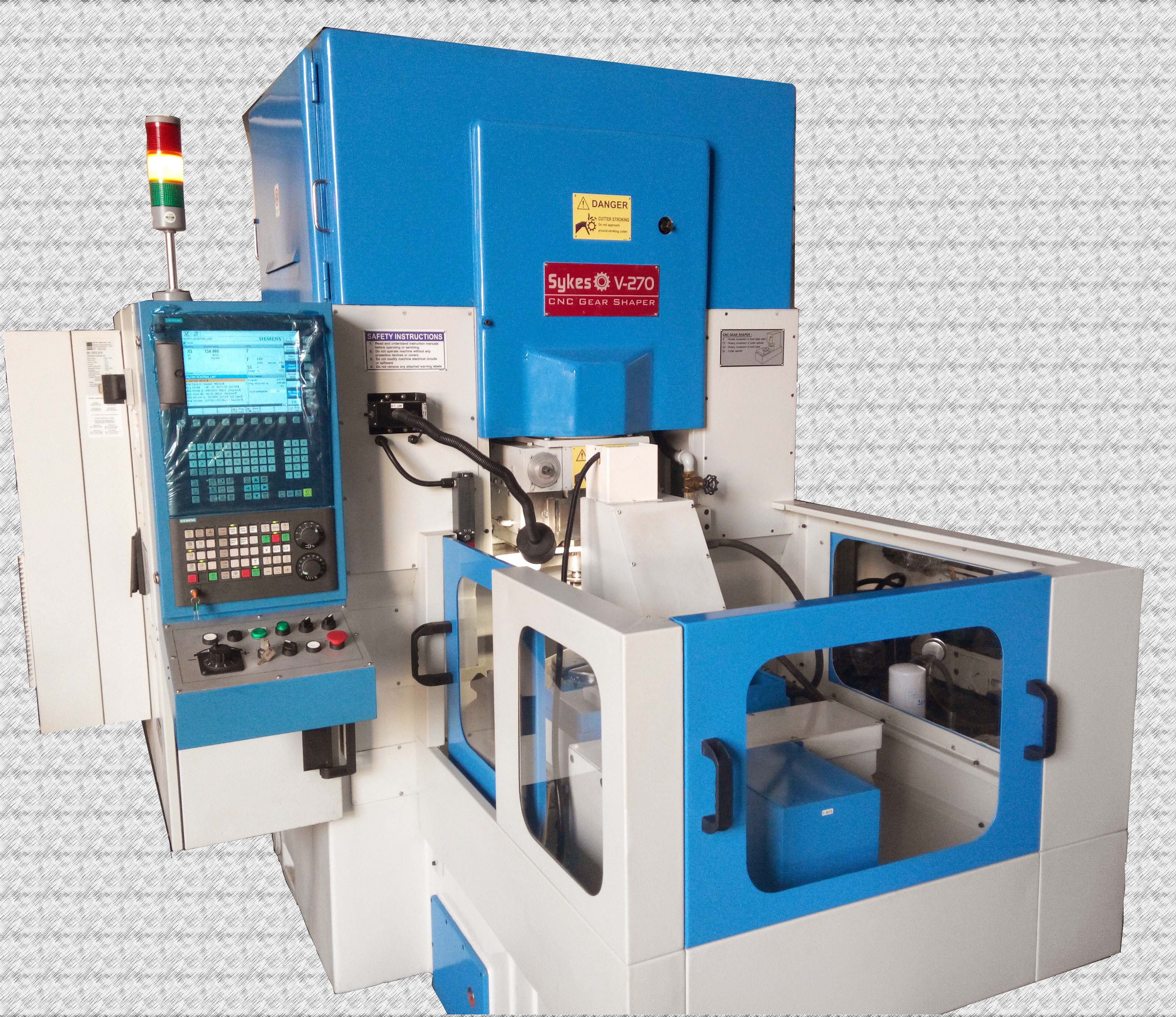

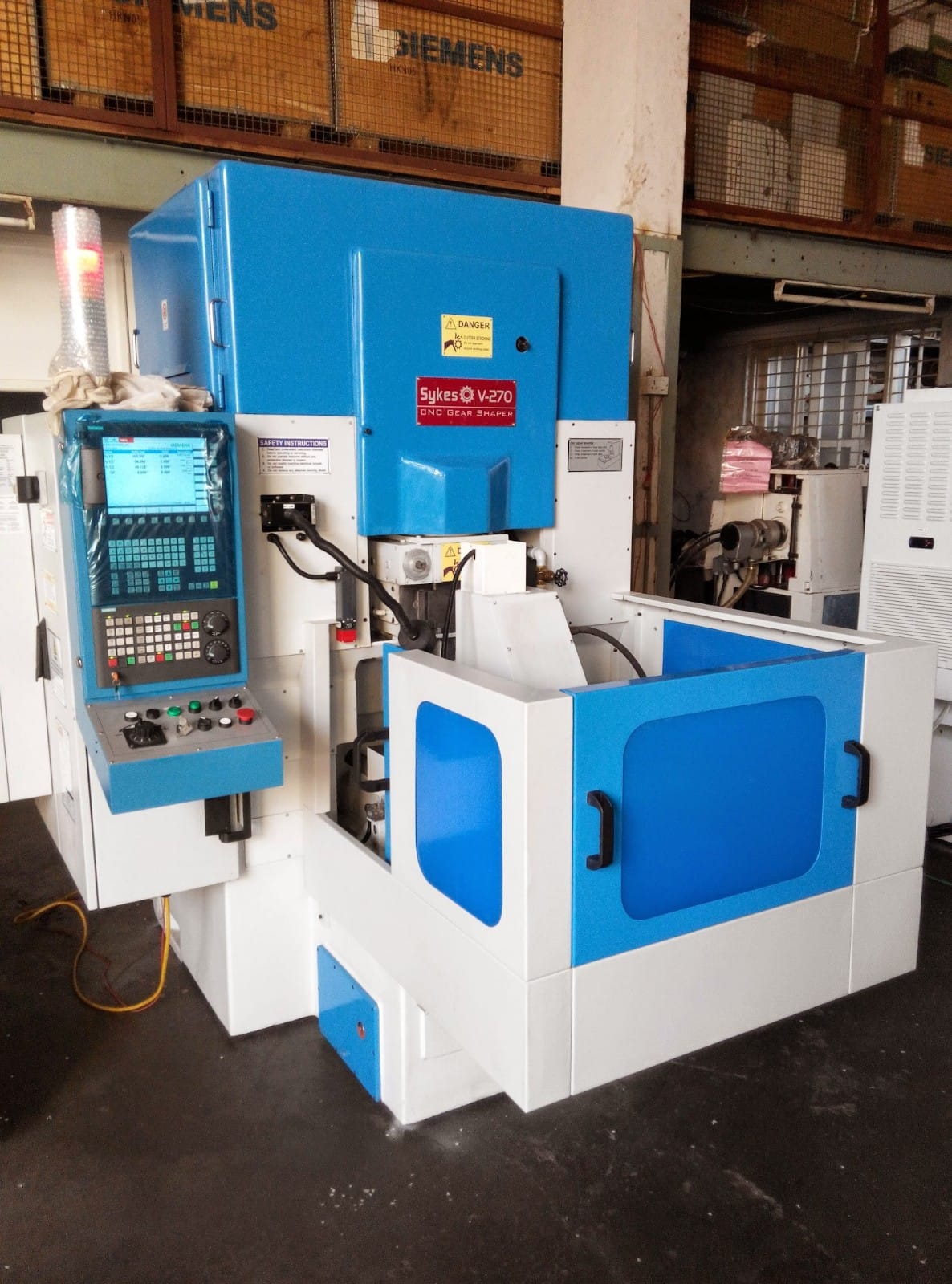

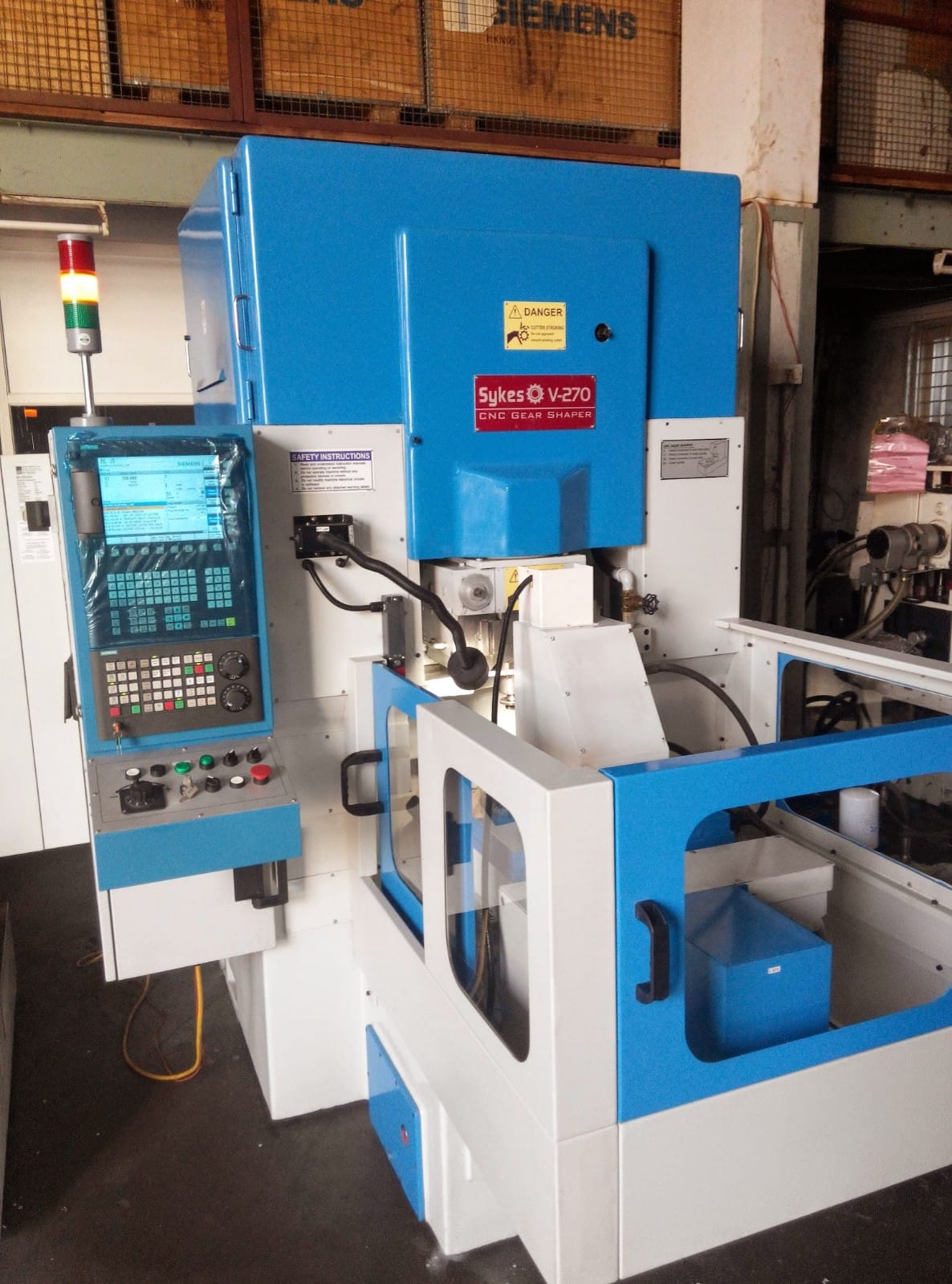

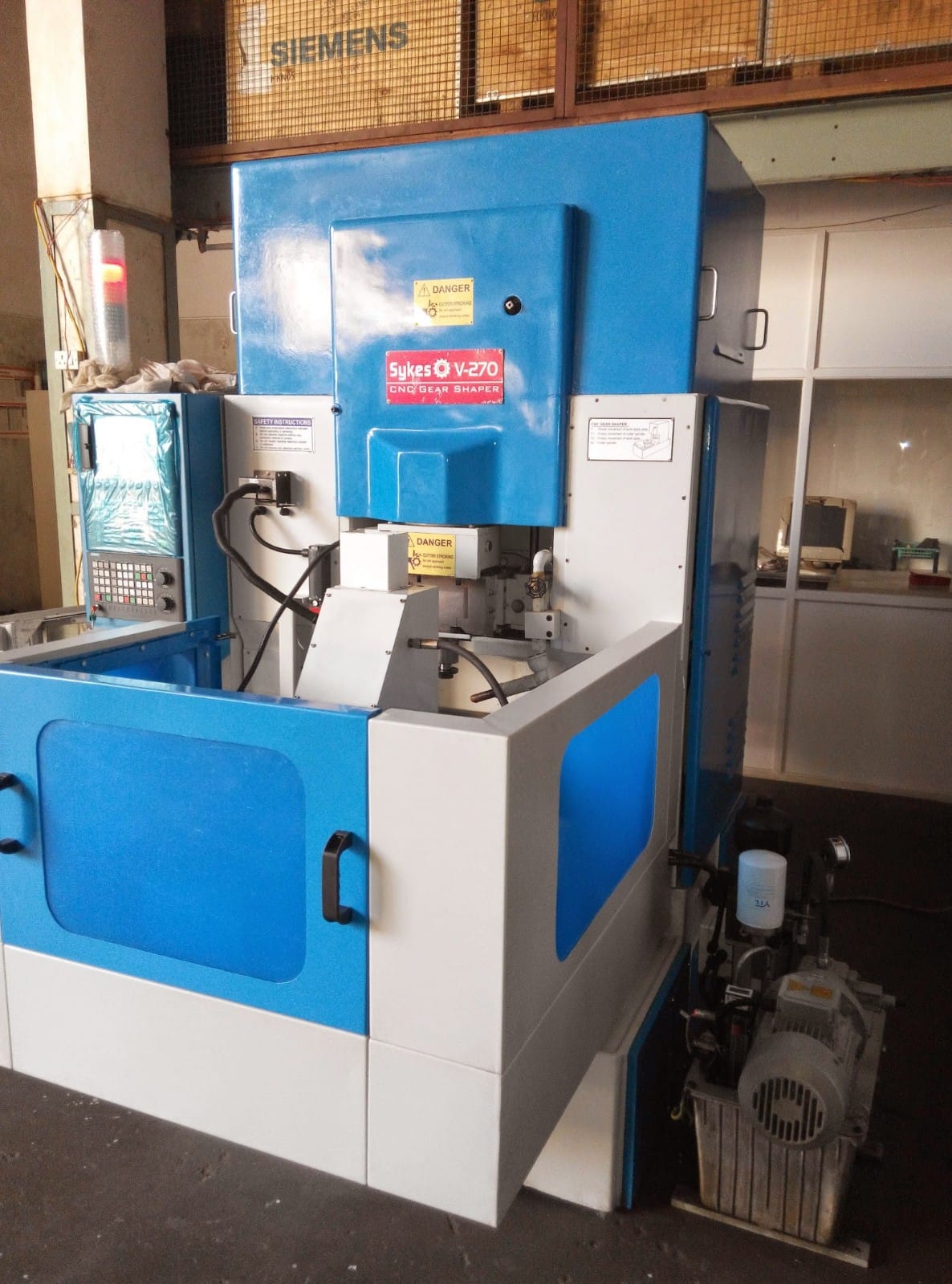

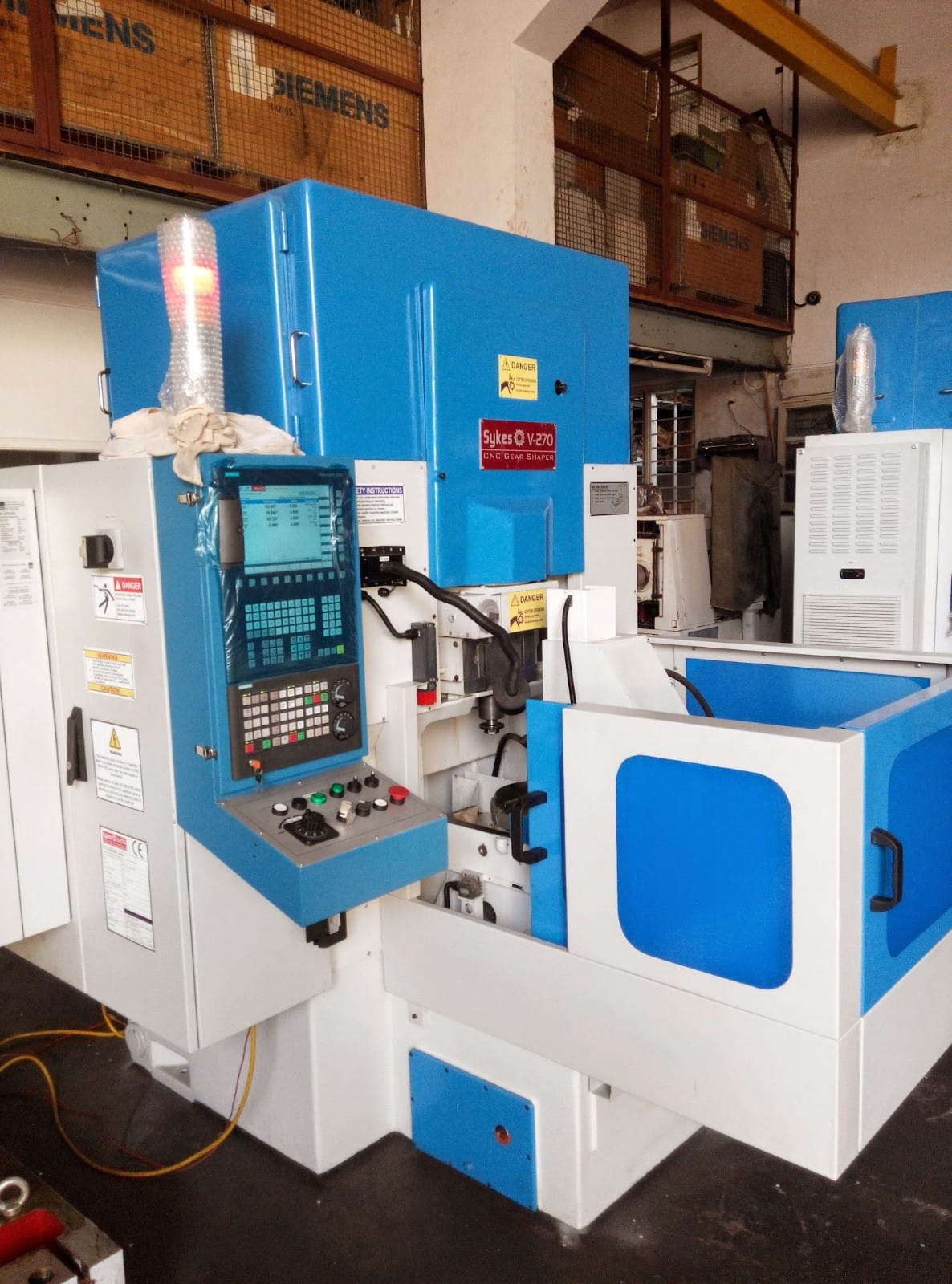

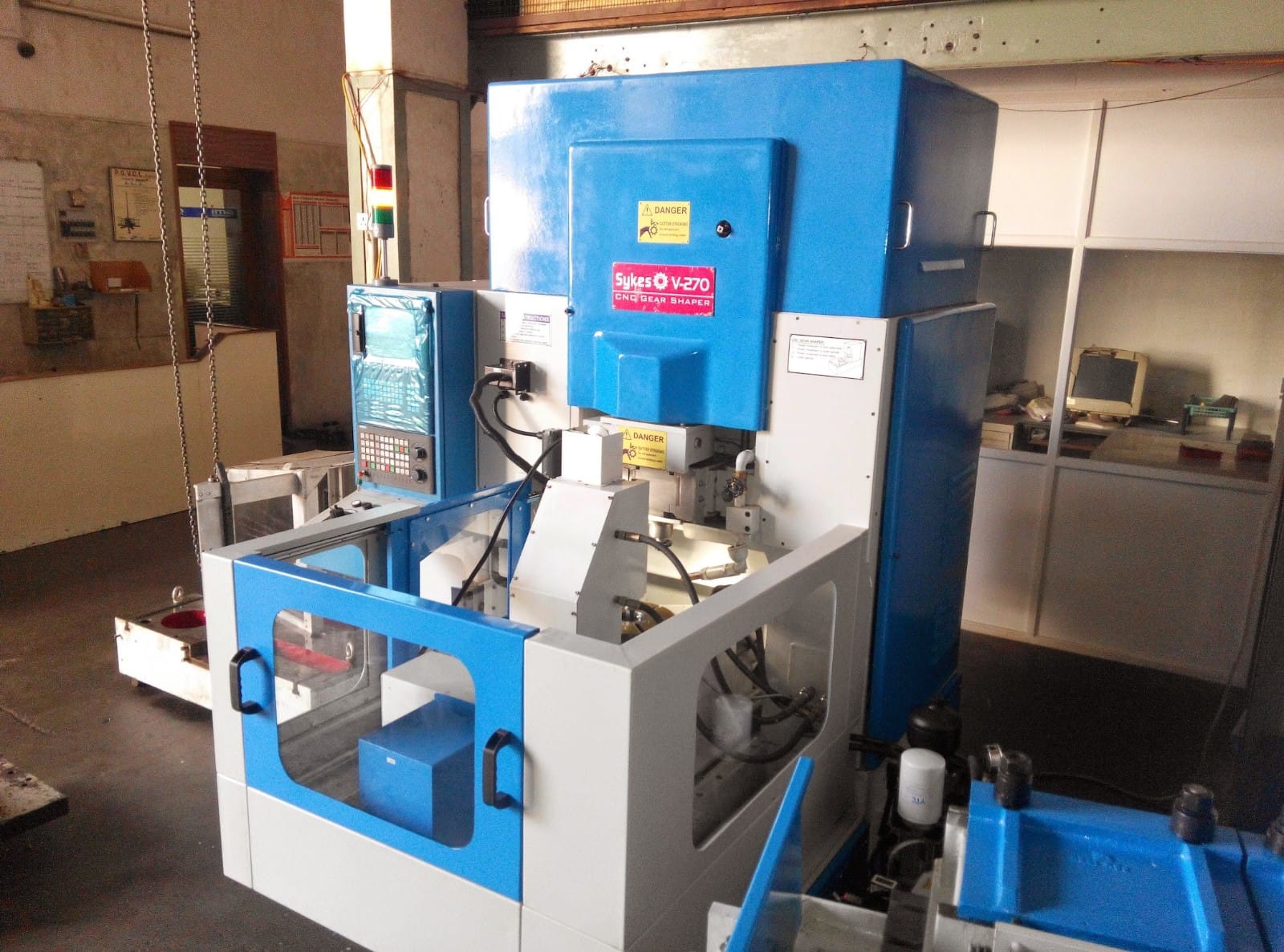

Gear Shapers CNC

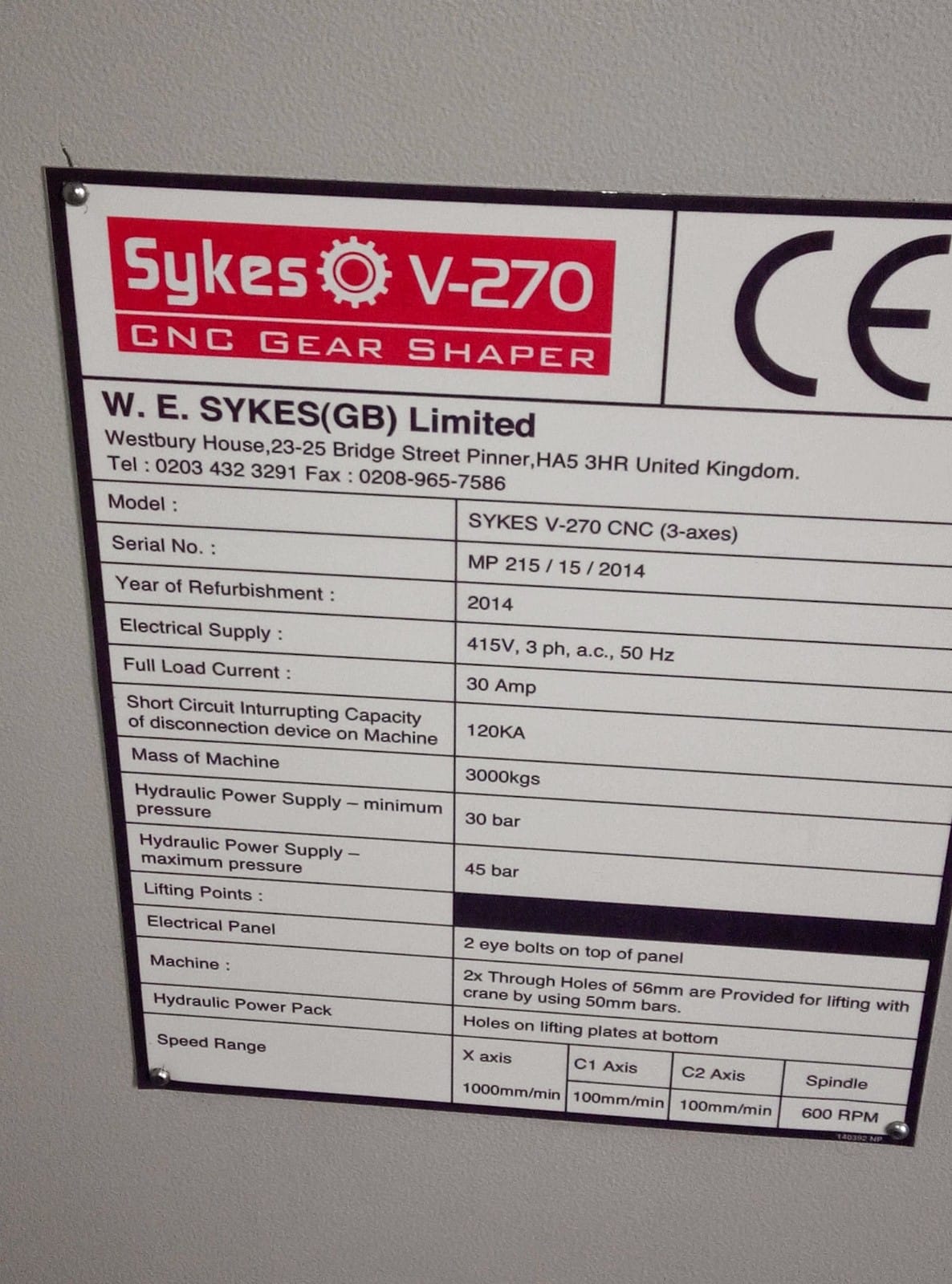

SPECIFICATION :

Spindle Motor:1PH8101-1DF00-1CA1, 415 V, 3.7kw, 1500RPM, Foot Mounted

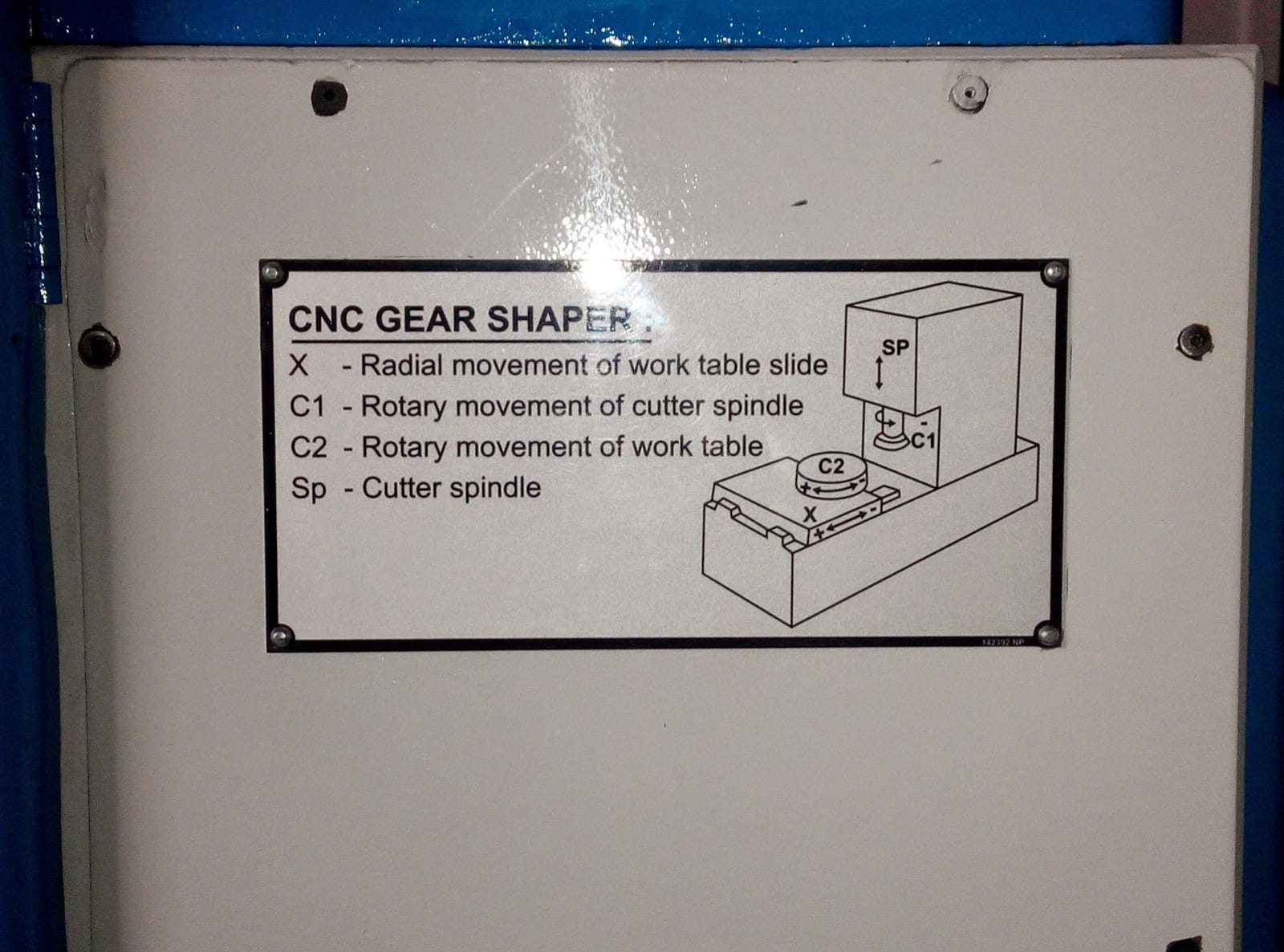

X-axis (Radial Feed) Servo Motor:1FK7063-2AF71-1RA1,11Nm,3000rpm
C1-axis (Circular Feed) Servo Motor:1FK7063-2AF71-1RA1,11Nm,3000rpm
C2-axis (Circular Feed) Servo Motor:1FK7063-2AF71-1RA1,11Nm,3000rpm
Coolant pump: 3-phase, 380/440v, 0.5Hp, 0.9Amp., 1425rpm
General Lubrication Motor: 3-phase, 380v, 0.25Hp, 0.55Amp., 1380rpm
Cyclic Lubrication Unit Motor: 220v, 40kw, 0.6Amp., 1500rpm
Capacity:
Pitch ( Minimum - Maximum ) 0.5mm to 6.3 Module
Speeds Maximum 700 S.P.M
Stroke length 100 mm
Maximum diameter with tailstock 270mm
Cutting speed Infinitely variable
Maximum Helix angle +/- 45 degree
Cutter Spindle diameter 68.23mm
Work table dimension
Height of worktable above floor 930mm
Overall height of the machine 2200mm
Overall width 1350 mm
Overall depth ( front to back) 1750 mm
Motors: Continued
