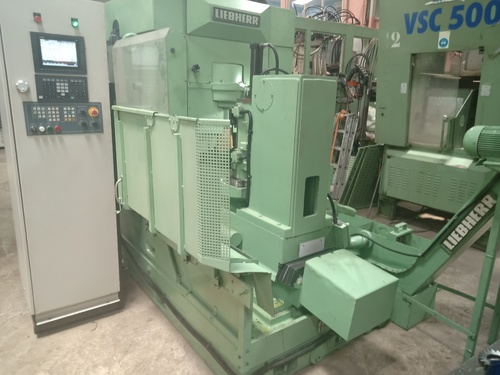

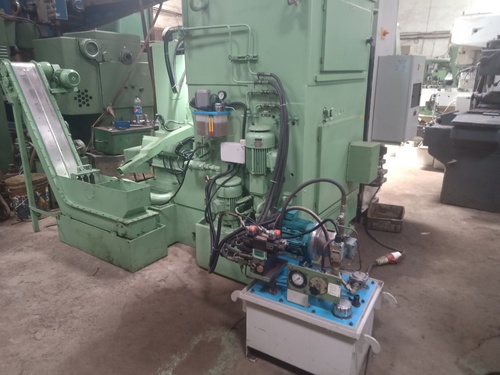

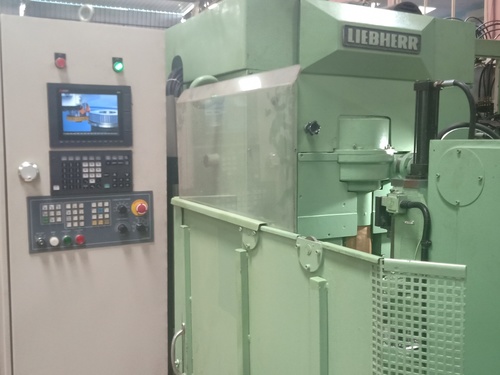

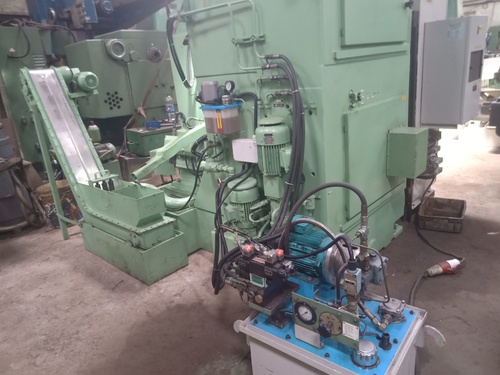

This machine was totally cleaned, hydraulic and coolant systems drained and cleaned, all gib adjustments were checked, all worm lashes were adjusted, all old parts specially bearings were replaced, all mostly oil leaks replaced and then the machine was fully recertified using the ISO alignment standards for CNC Gear Shaper.

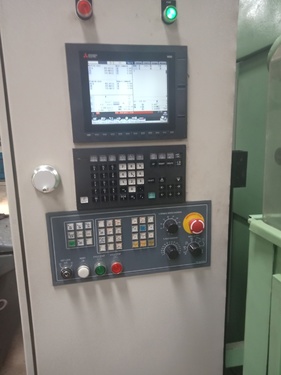

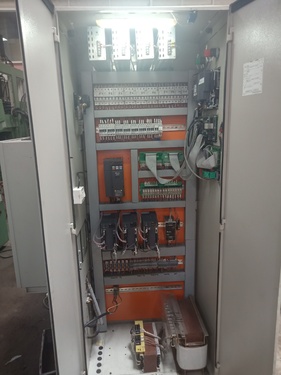

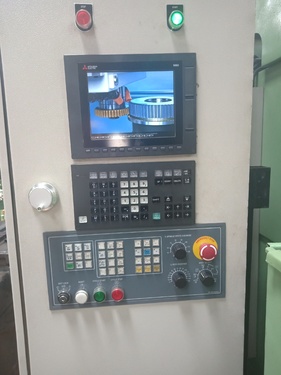

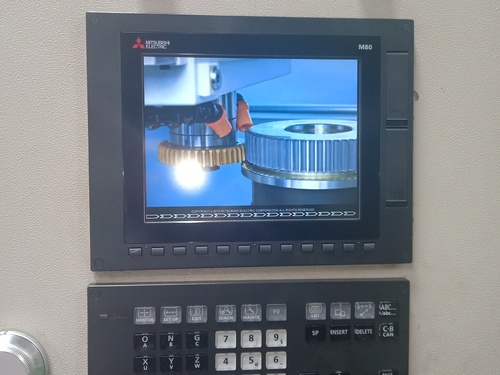

All the old German controls were eliminated and replaced with new Mitsubhishi M80 Controller.(Four Axis)This machine was recontrolled using a BRAND Mitshubhishi M80 Controller, Digital drives and AC servo motors Power CNC controlling digital Servo drives for the axes. The Machine is also capable to cut Sector Gears.
External gears, max. Ø, approx. 265 mm
Internal gears, max. workpiece Ø 300 mm
Module range 0.3 - 6
Length of stroke 0 - 55 mm
No. of strokes, infinitely variable 220 – 1,100 /min
Feed range 2.4 – 2,400 mm/min
Rotary feed 0.06 – 4.95 mm/rev
Weight, approx. 7,300 kg
