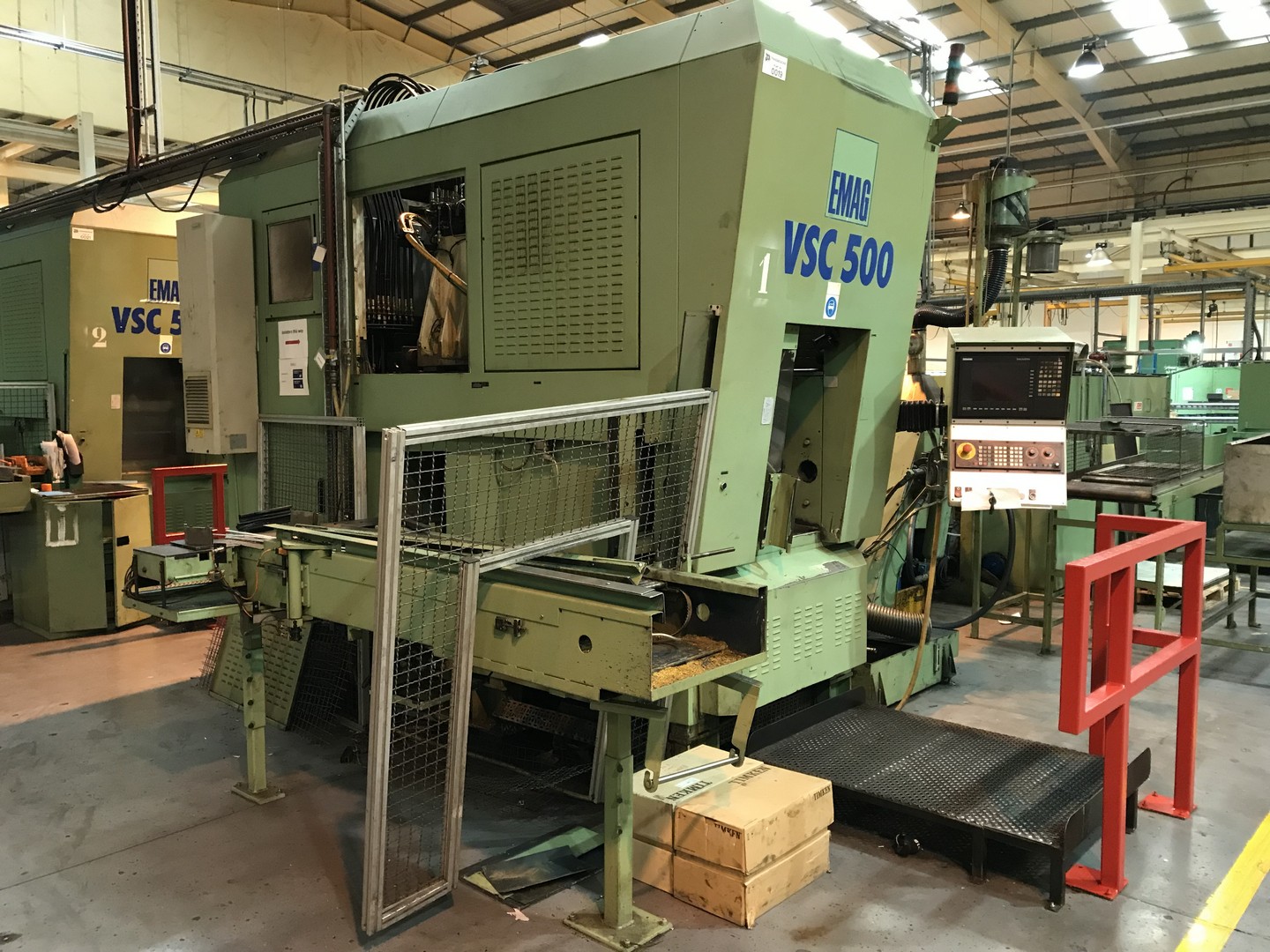

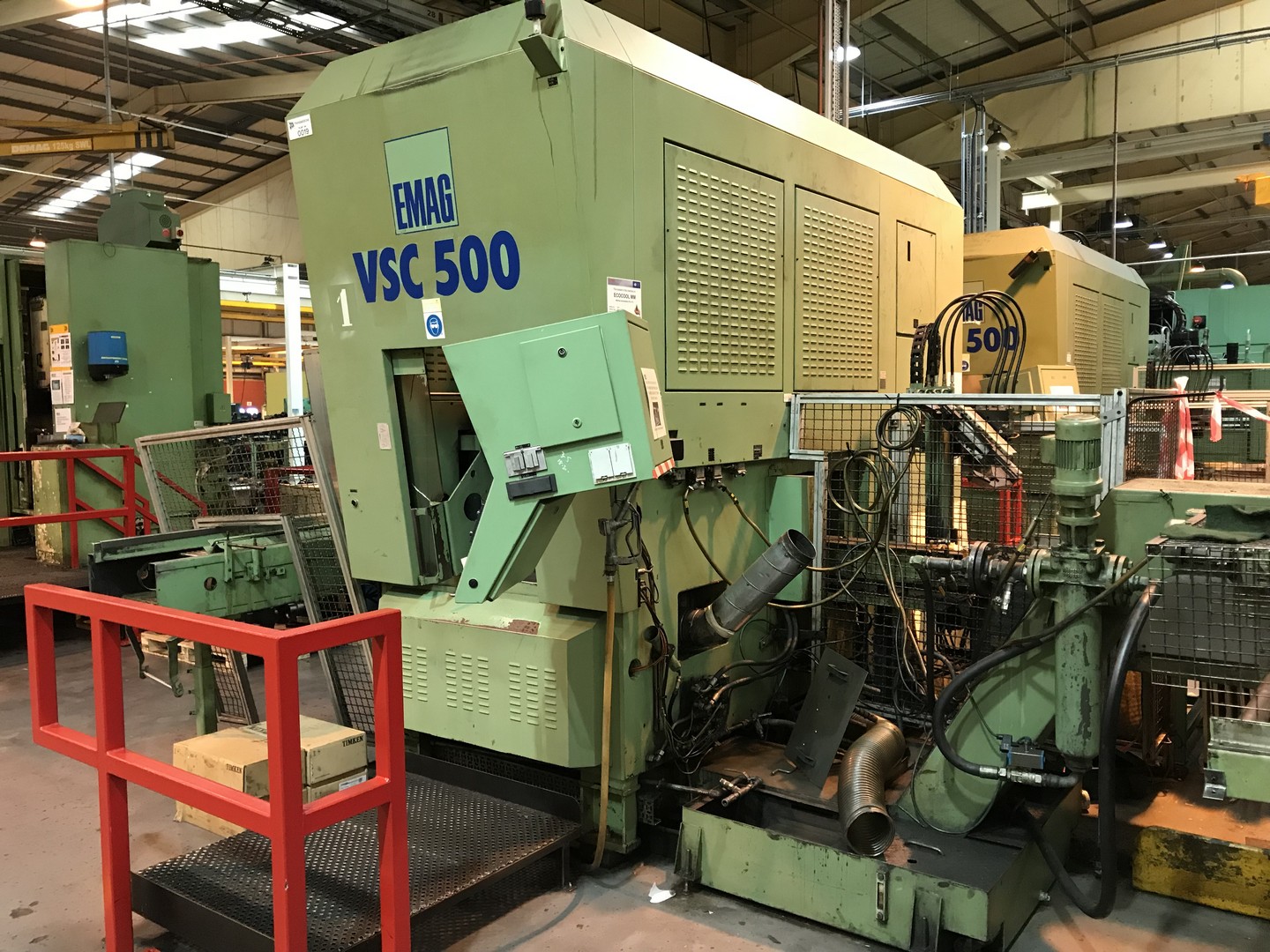

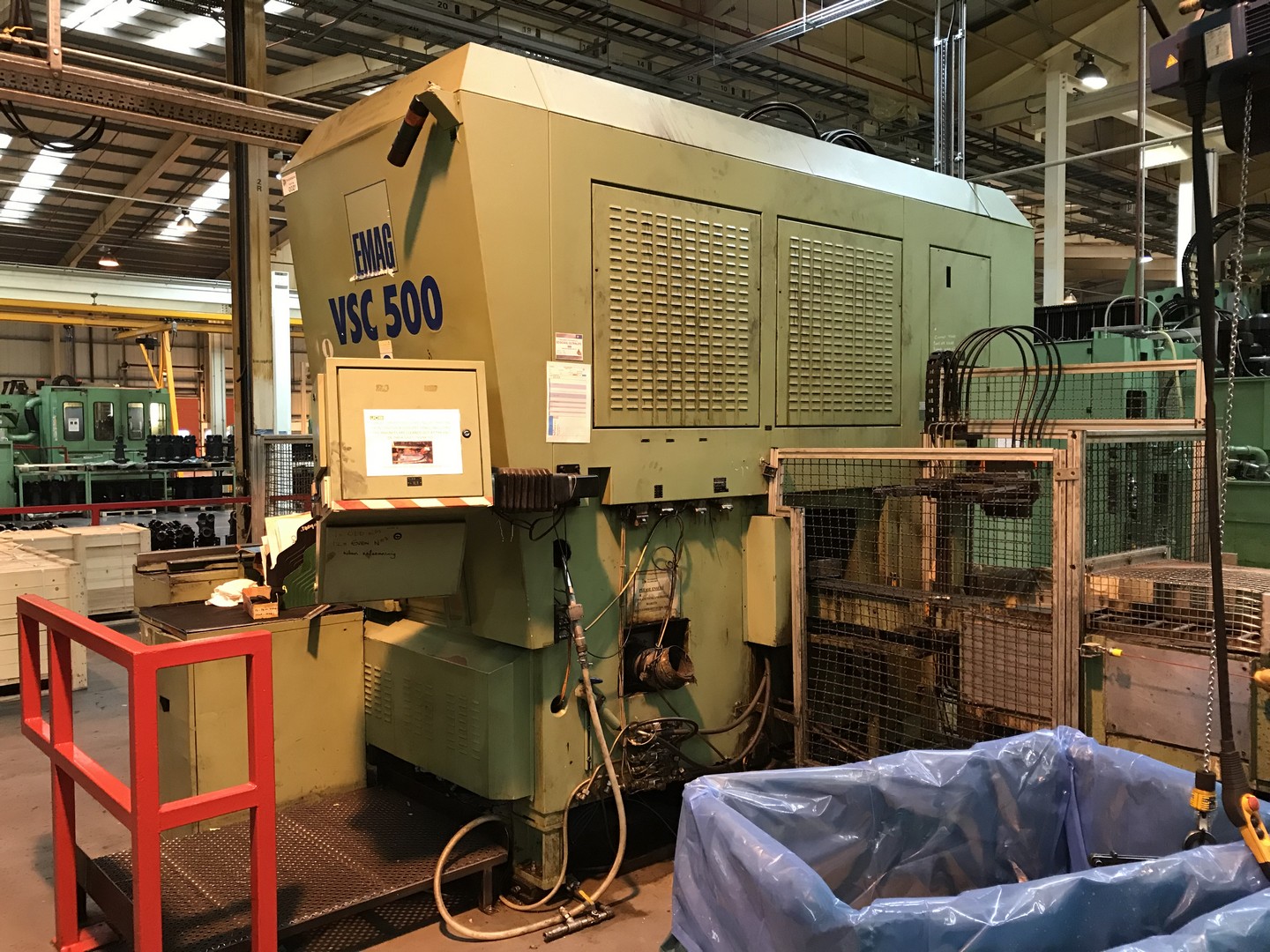

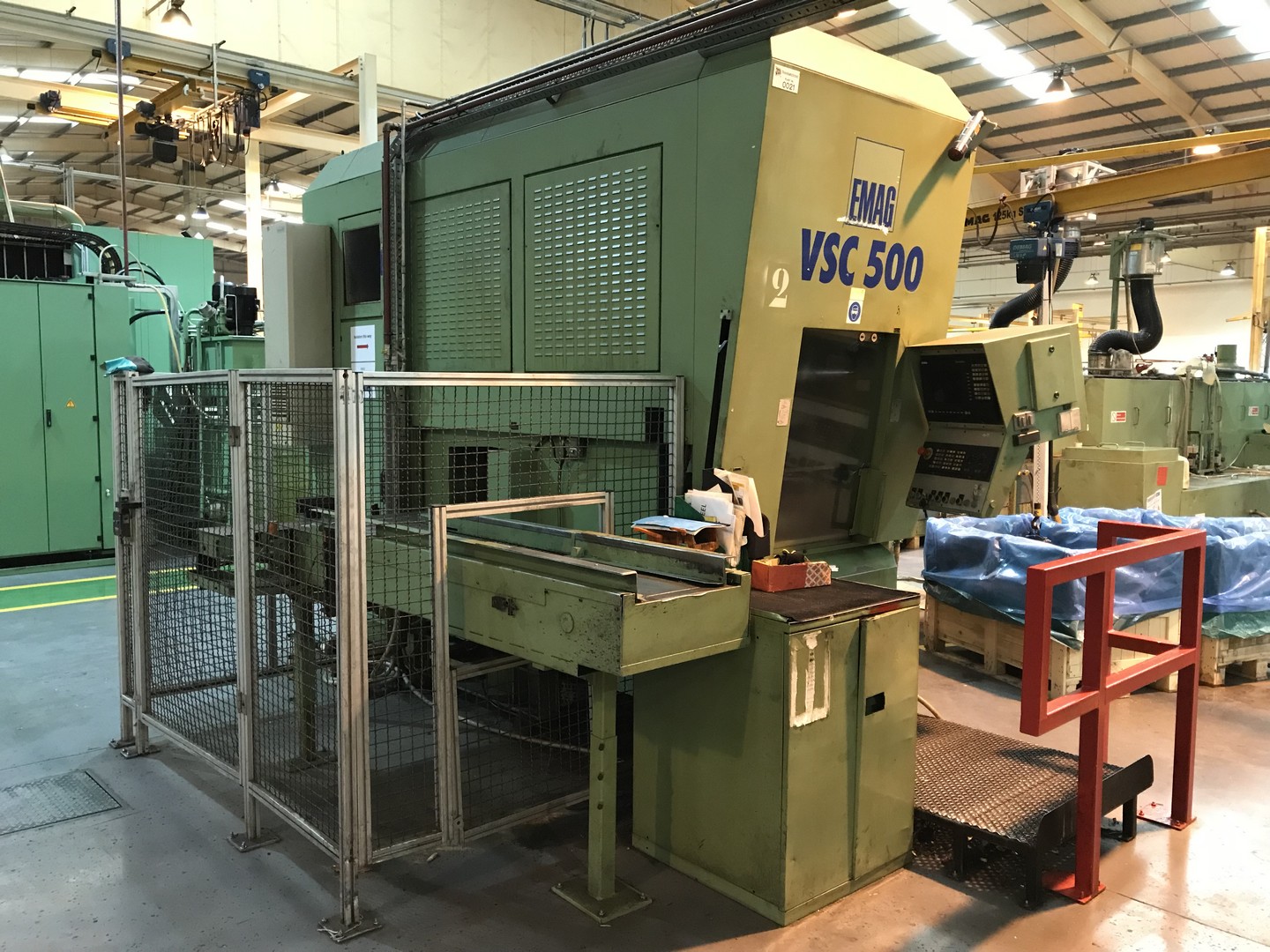

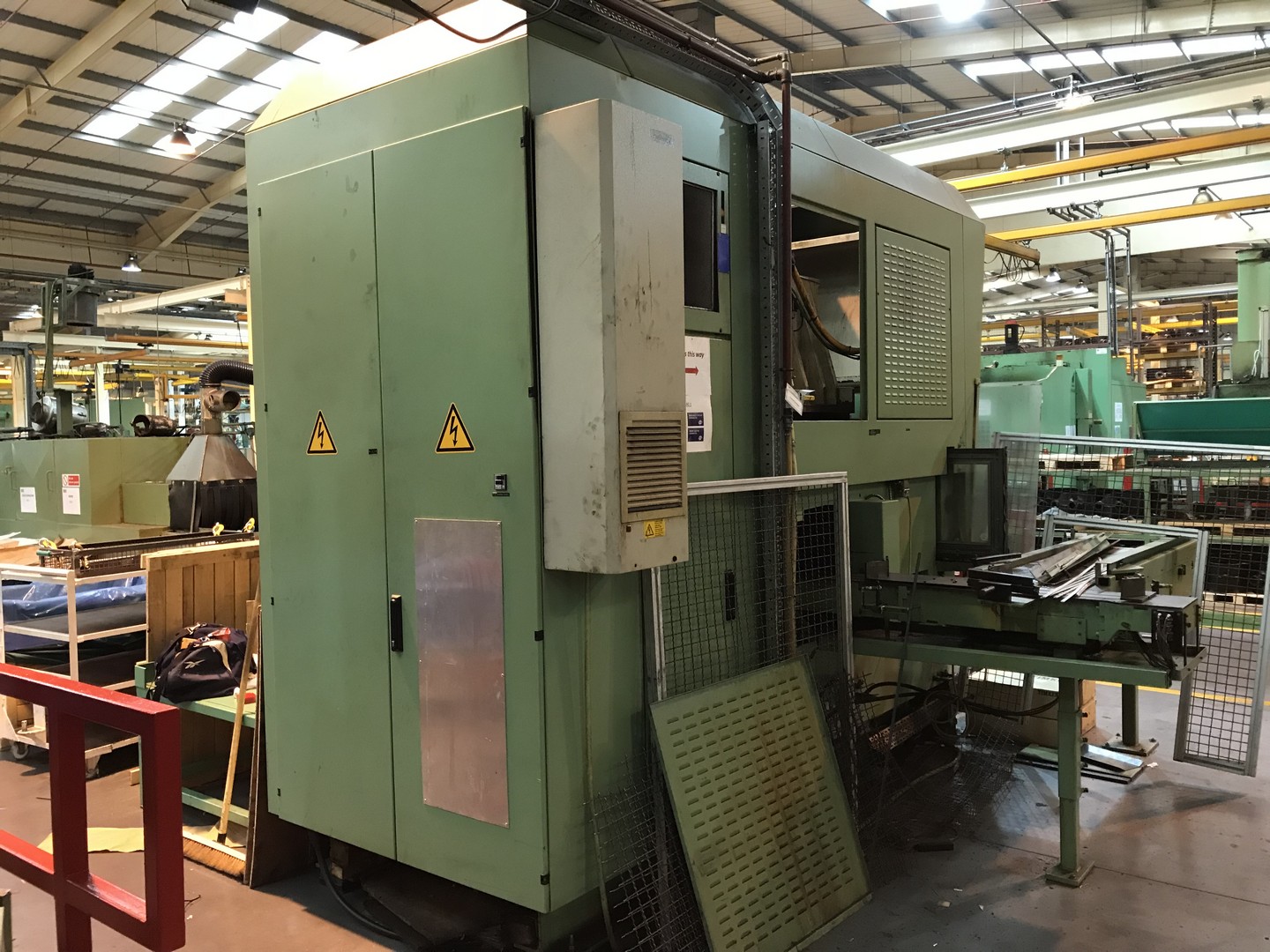

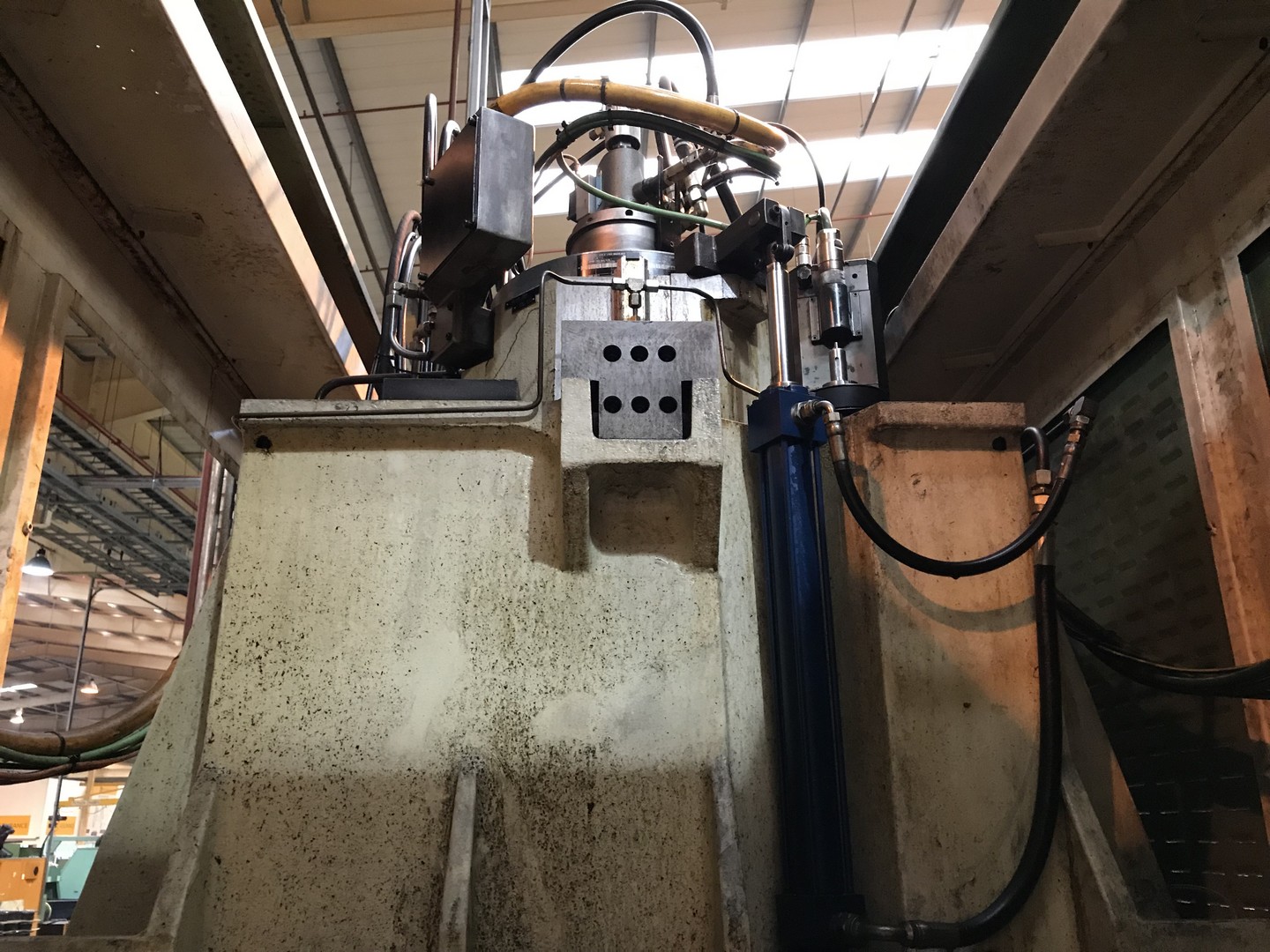

CNC vertical turning machine with an inverted work spindle that traveled the main axeschoice of two similar Machines
Caracteristics
- Max. turning Ø : 520 [mm] - Strokes (X/Z) : 1000 / 400 [mm] - Max. push on X and Z : 1100 [daN] - Quick feeds (X/Z) : 45 / 30 [m/min] - Ball screw diameter (X/Z) : 50 [mm] - Spindle nose : A2-11 - Spindle motor power : 71 [kW] - Spindle speed : 0 - 3400 [Rpm] - Max. chuck torque : 750 [Nm] - Number of positions on turret : 12 - Number of motorized positions : 12 - Tool-holder type : VDI50 - Machine alone dimensions : 4.050 x 1.960 [mm] - Installation dimensions : 8.500 x 5.000 [mm] - Machine weight : 13.500 [kg] - Installed power : 45 [kW] - Electric supply : 400 V, 50 Hz
Equipment

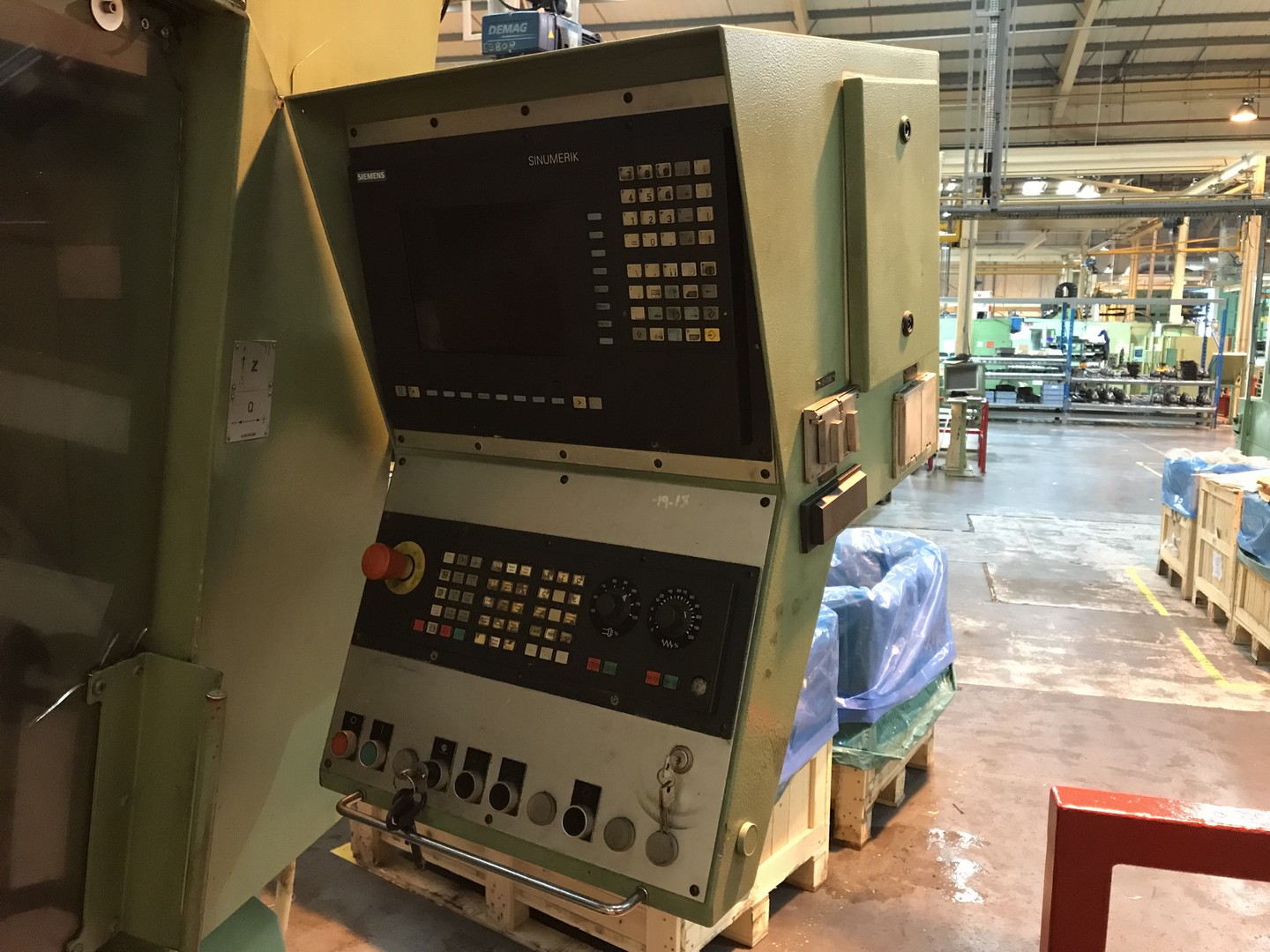

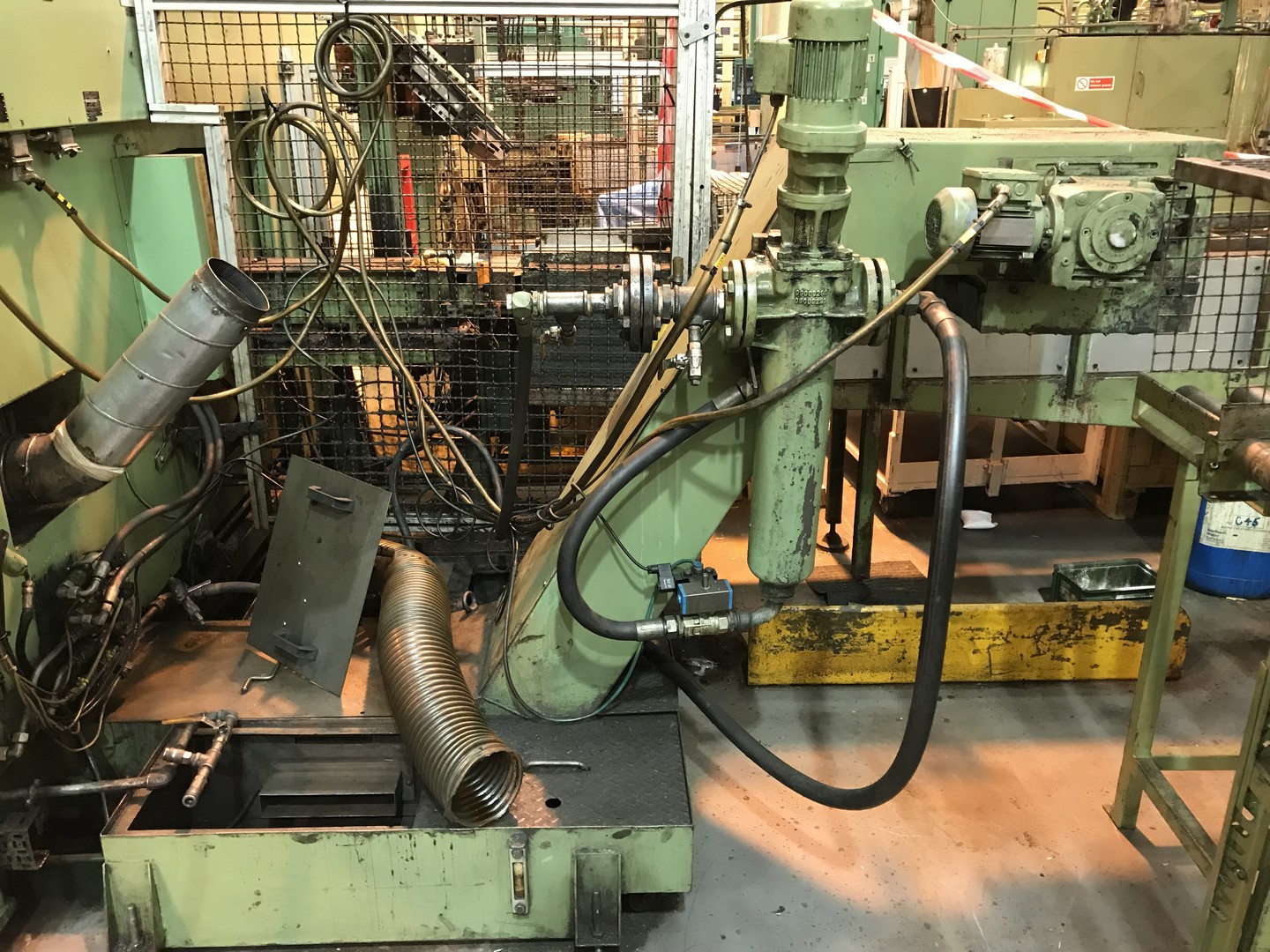

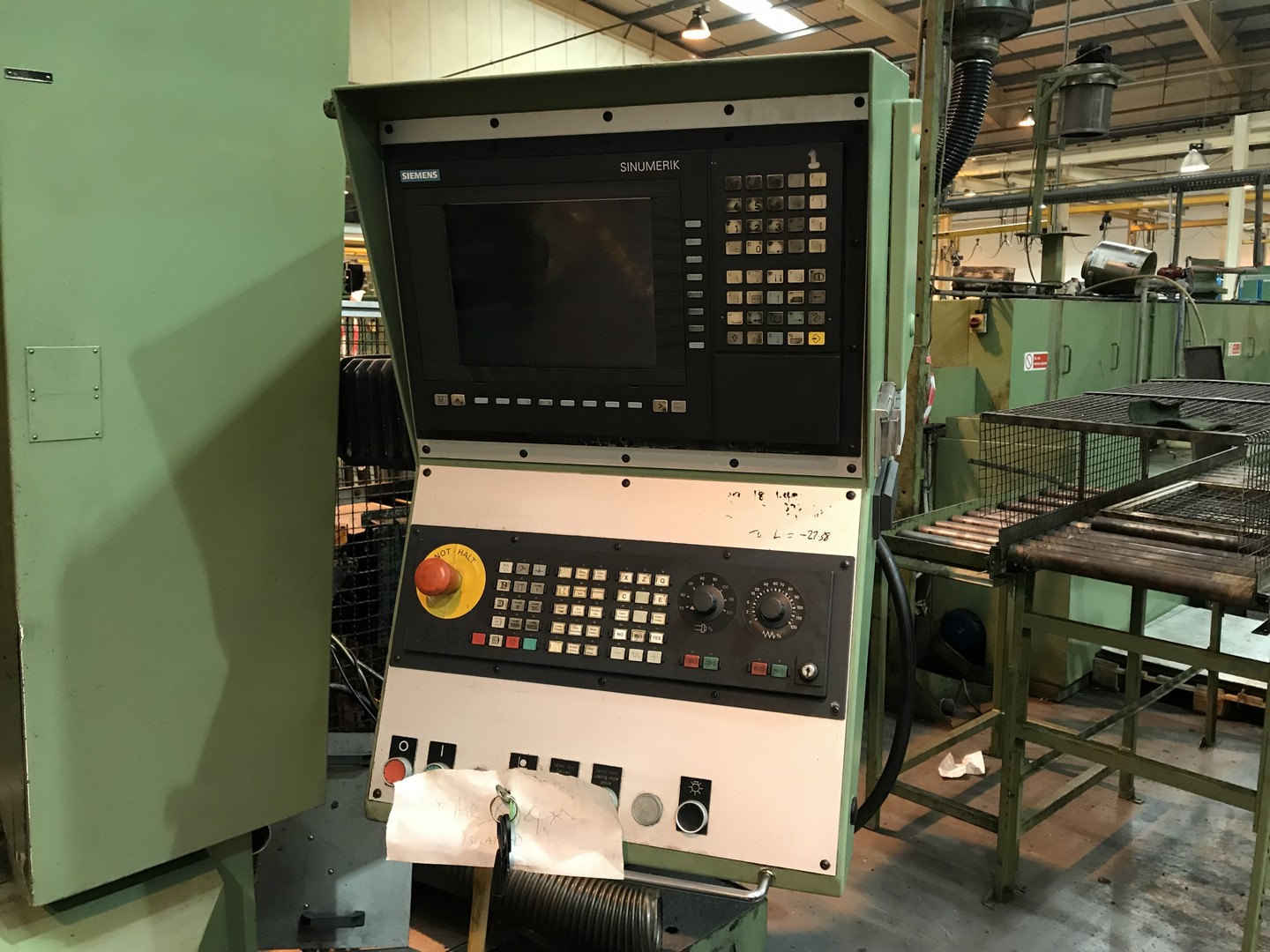

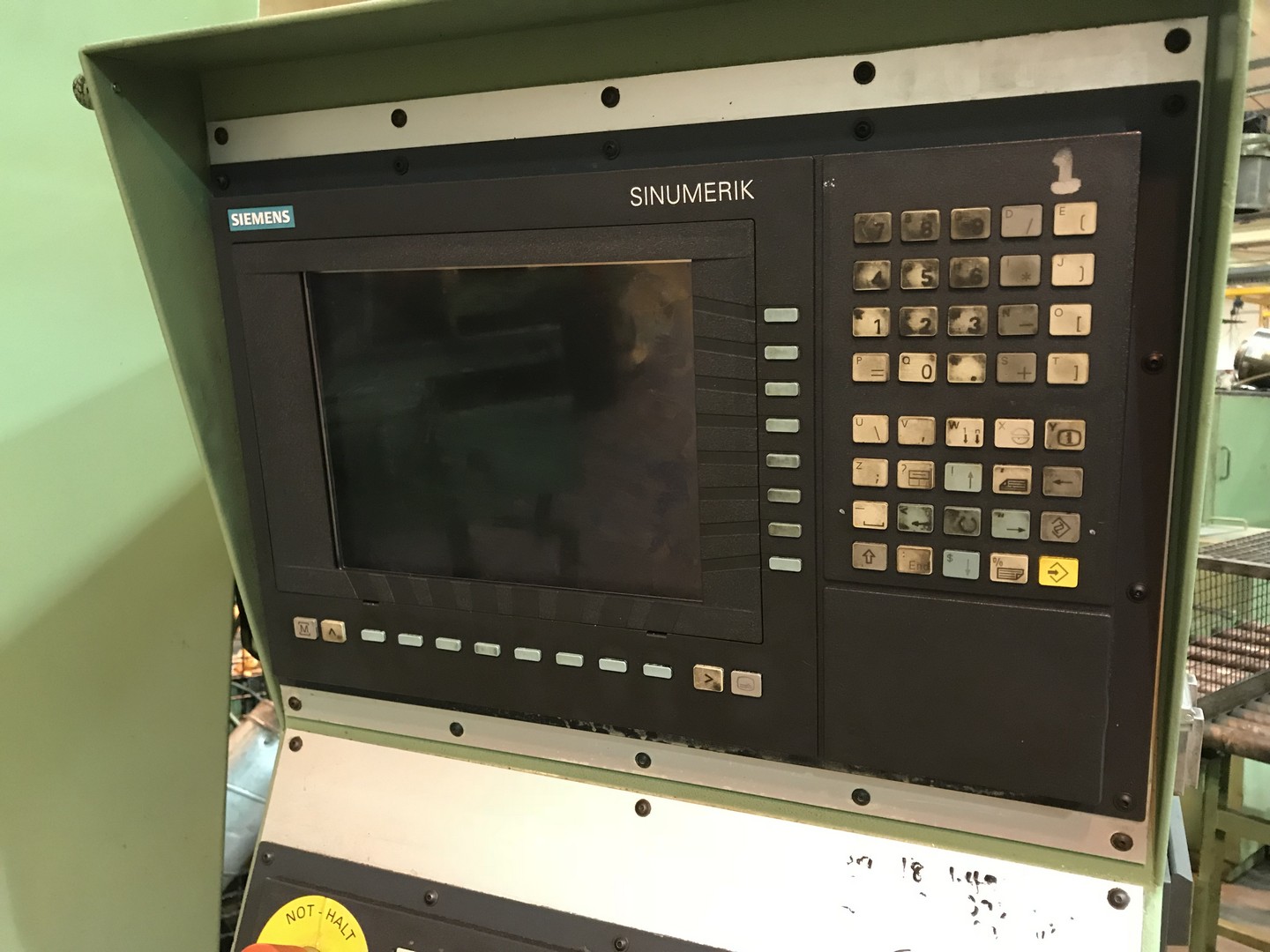

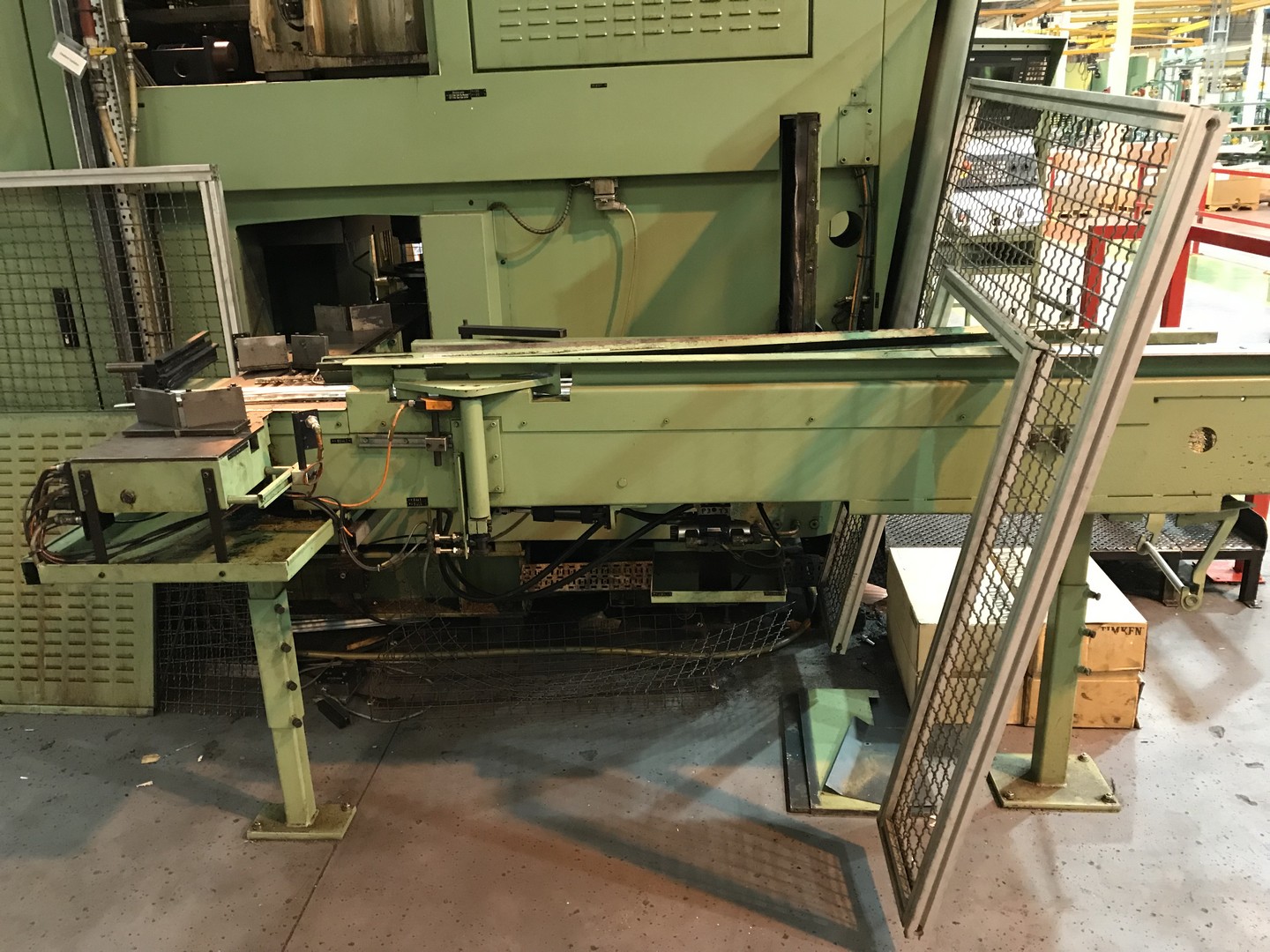

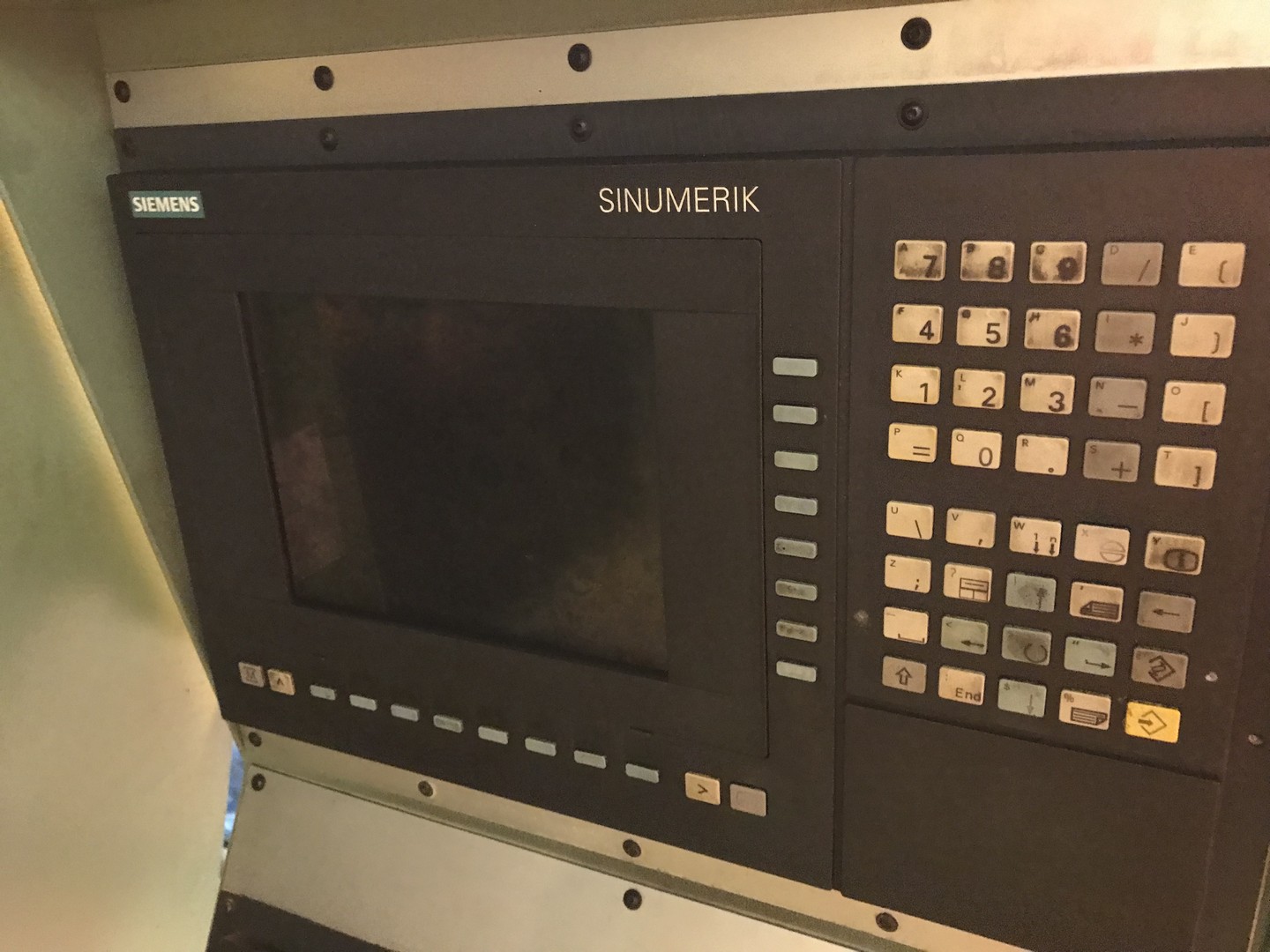

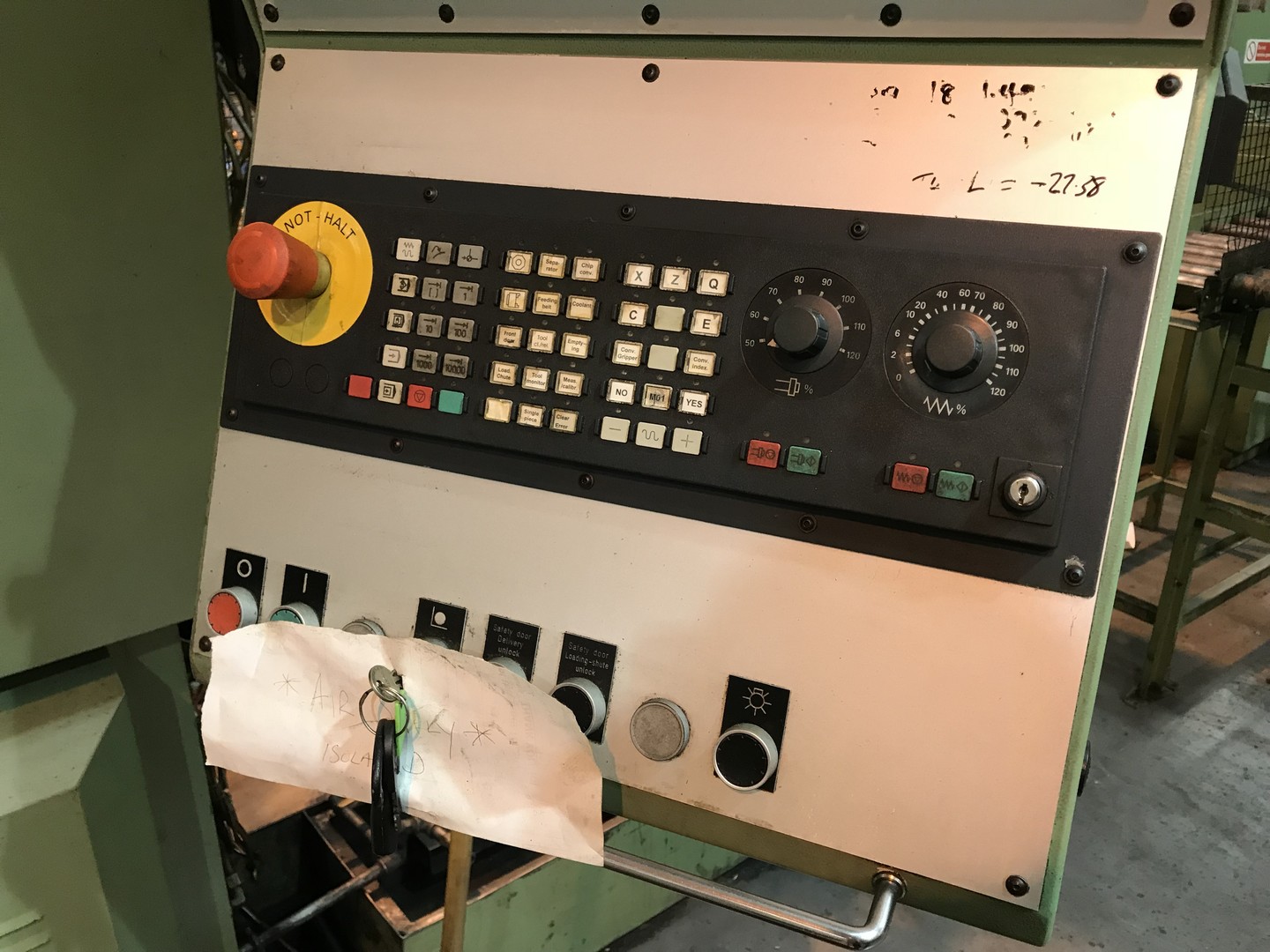

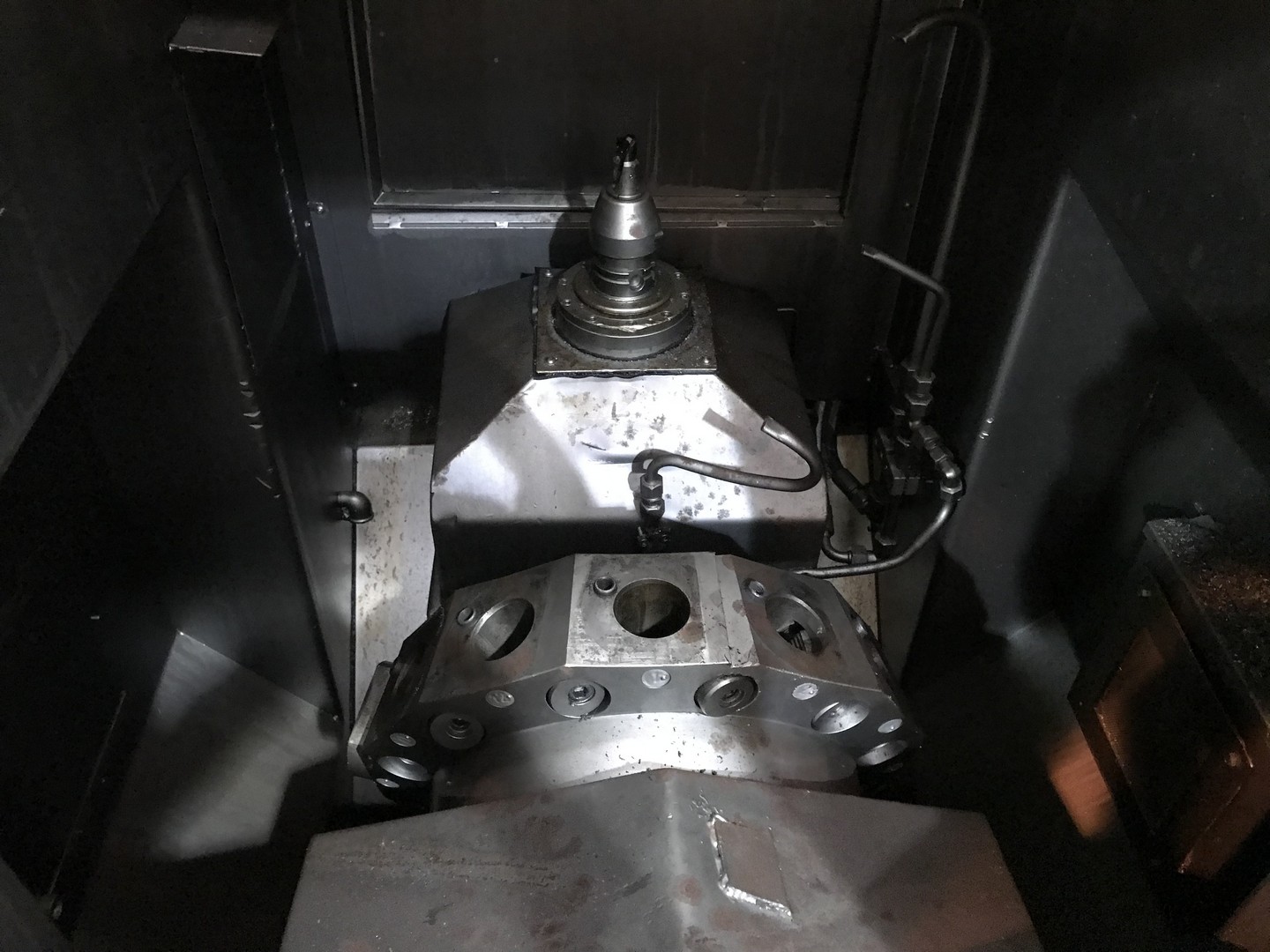

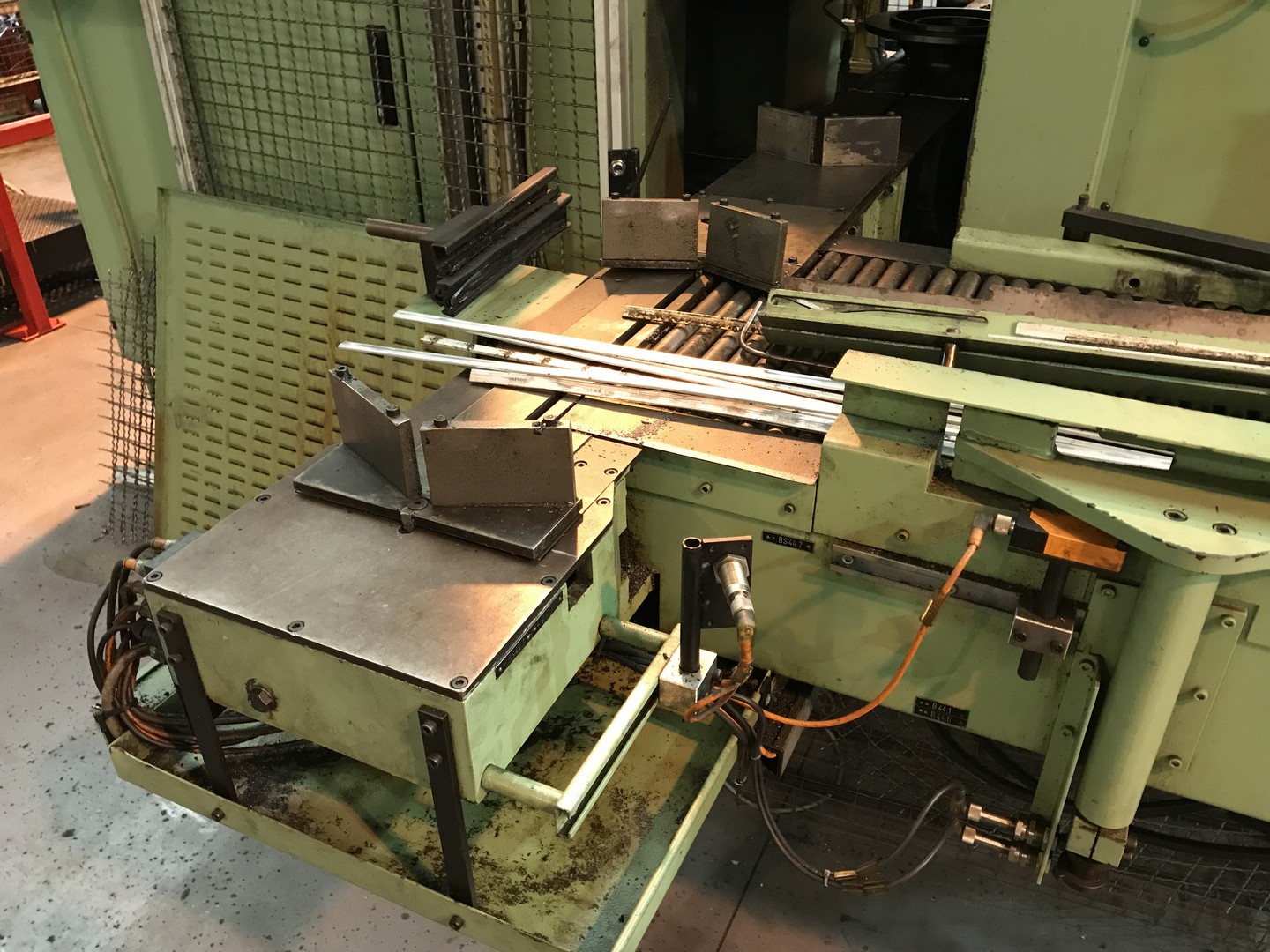

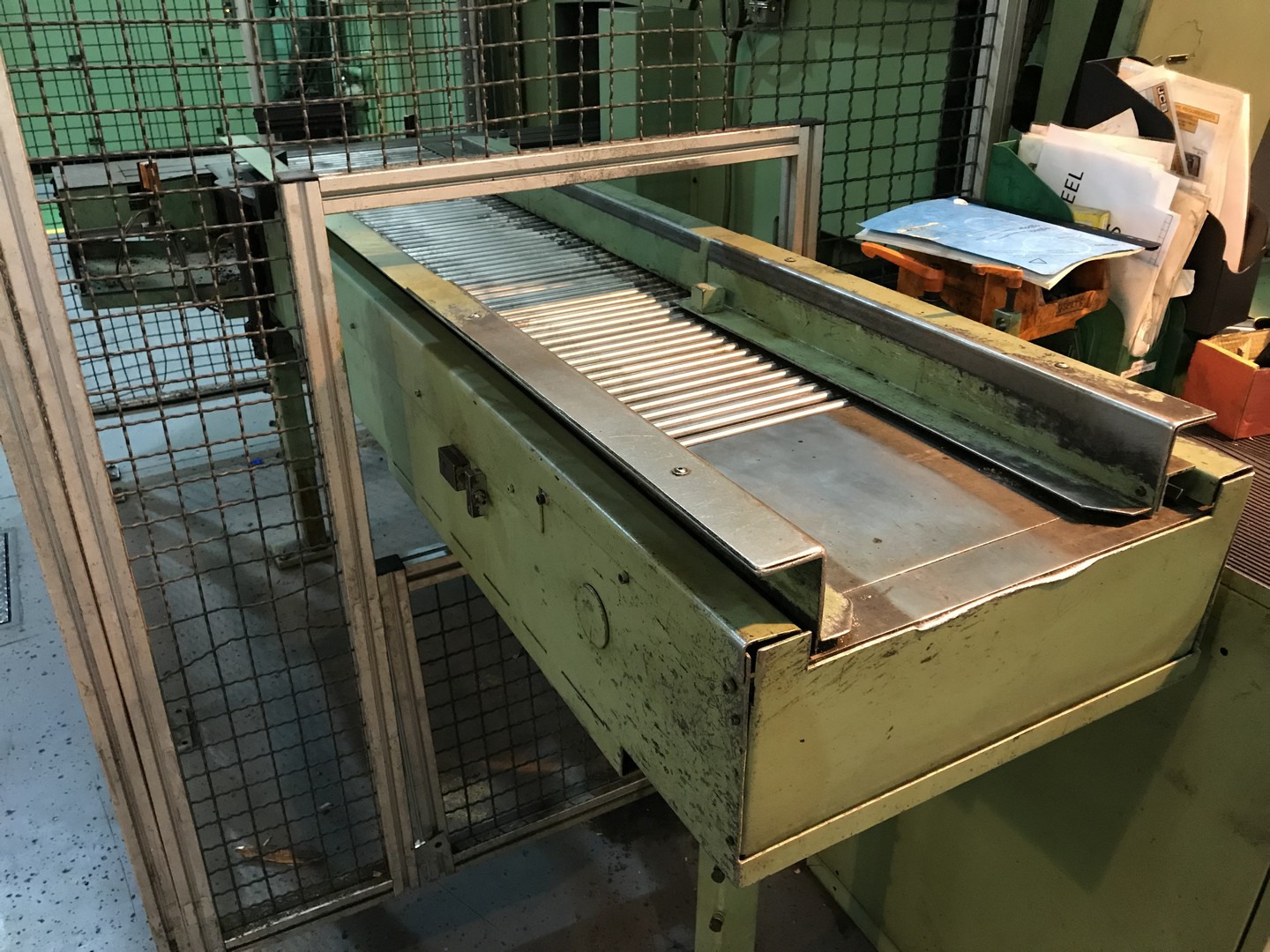

- CN SIEMENS 840D - Interface : RS232 / RJ45 / USB - Touch part sensor Marposs - 1 fixed tool support on table : Capto C6 - Lubricating tank - HP coolant tank : 23 [bars] - Cooling tank - Chip conveyor KNOLL - Part conveyor capacity : 70 - 320 [mm] - Rotary tool holders number : 6 - Fixed tool holders number : 6 - Chuck 3 jaws Forkhardt Ø : 400 [mm]
