With 06 Indexing Plates Original Kapp

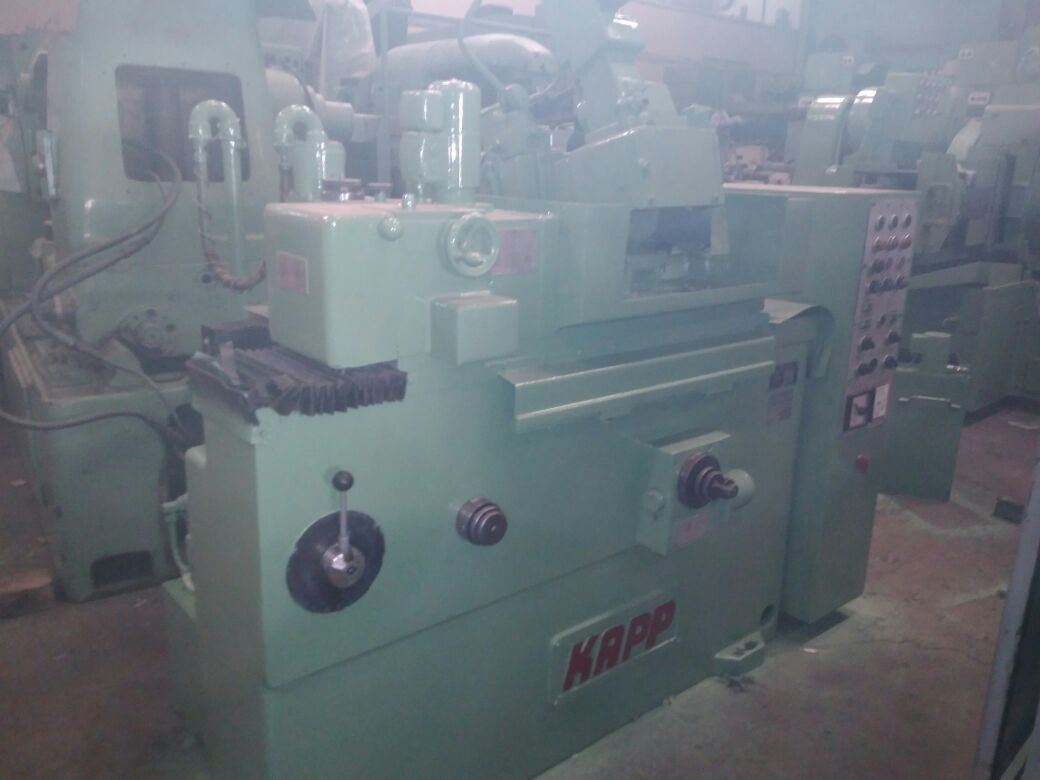

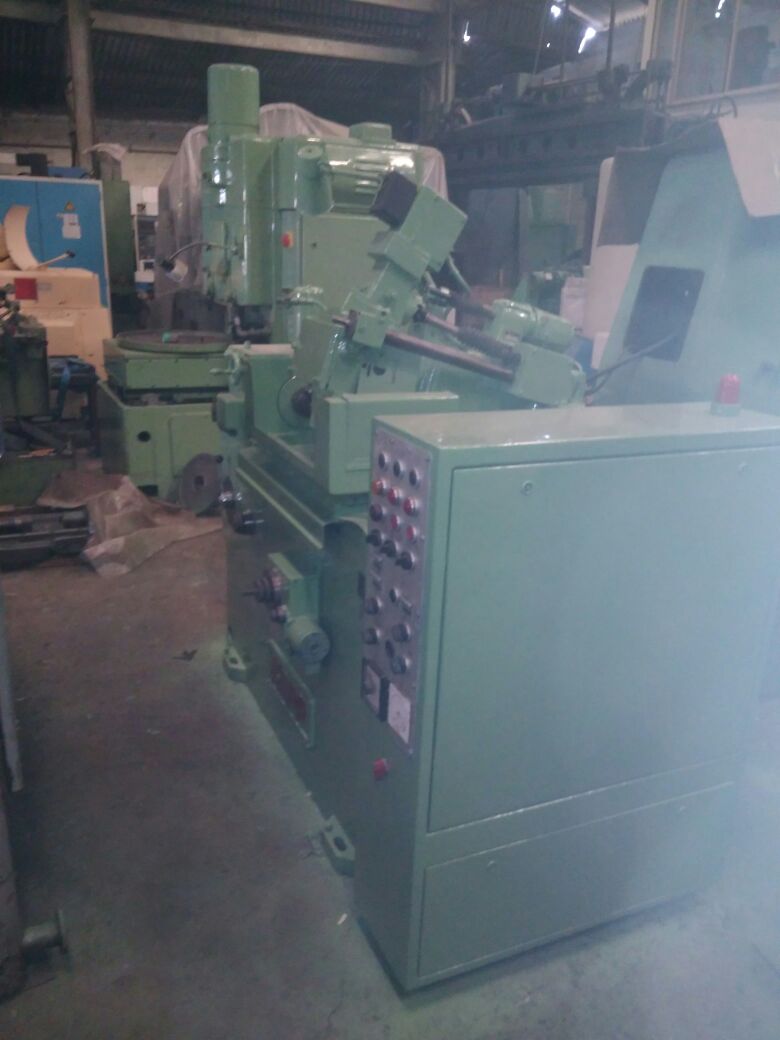

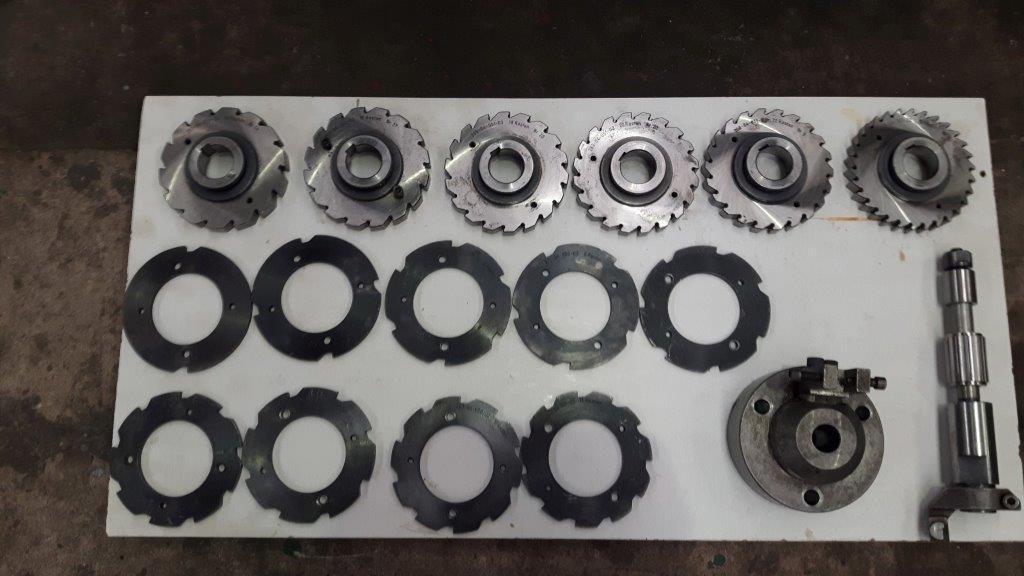

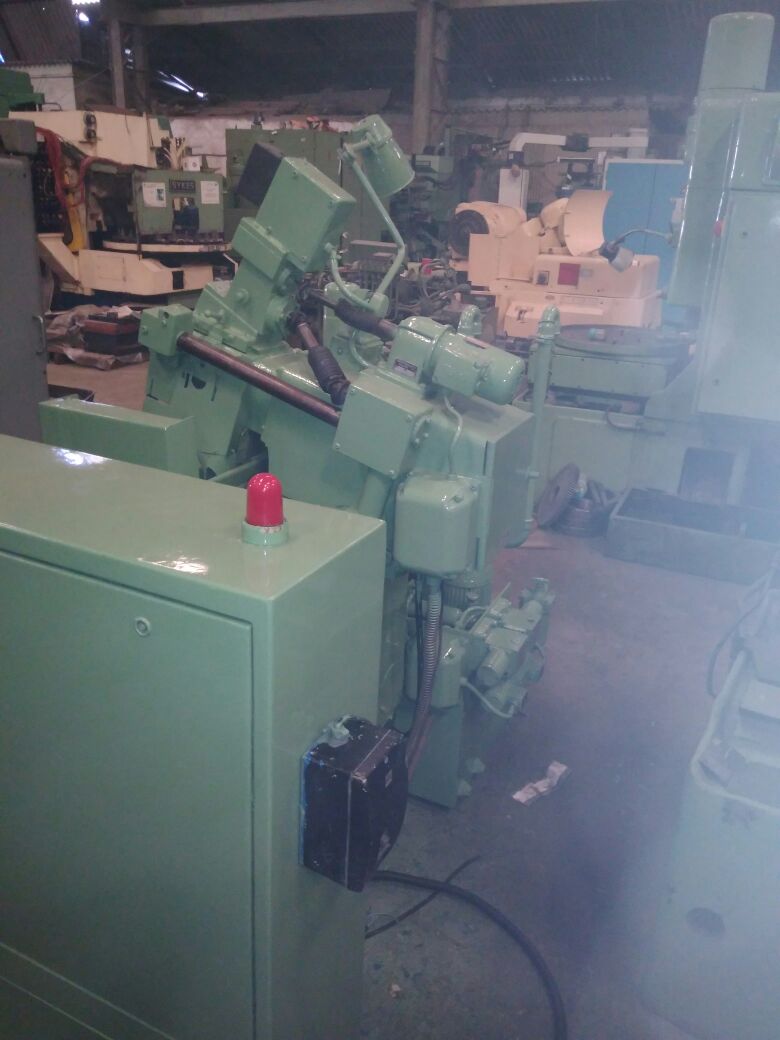

Used Hob sharpening machine complete with 06 Index Plates 14,16,18,20,22,30

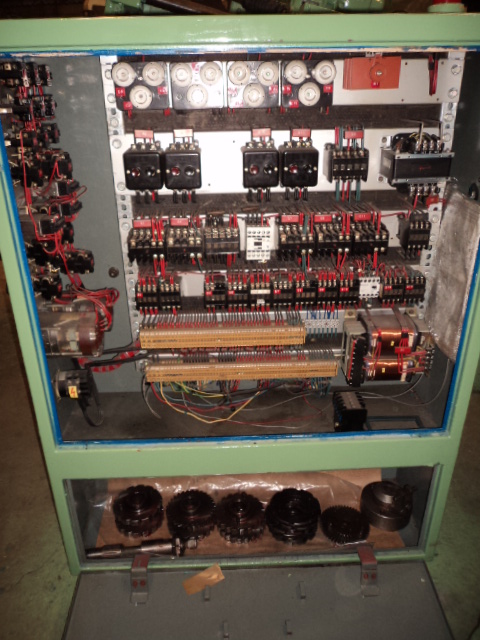

Machine Guard , Power Pack ,coolant etc.
grinding diameter 250 mm,
grinding length 265 mm max.
workpiece diameter 200 mm
table travel 315 mm
grinding depth 33 mm
table speeds 3 - 16 m/min
centre distance 340 mm,
taper Morse 3 centre height 105 mm,
grinding wheel diameter 100 - 200 mm
grinding wheel stroke - vertical 140 mm,
grinding slide swivable +/- 15 axial adjustment of the spindle slide 50 mm
grinding spindle speed 3000 / 4000 / 6000 U/min,
