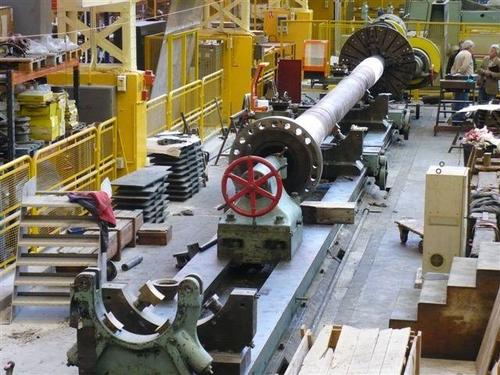

This horizontal lathe is in very good condition,
It has been used in a large European company and been always well maintained.
and it was already dismantled and stocked.

Specification :

GRAFFENSTADEN lathe, new in 1960
diameter over bed 1500mm
distance between center 20000mm
2 tool carriages
2 tailstock
4 open steady rests
1 closed steady rest
Diameter of the tailstock quill: 155mm
Width of the bed 1200mm
Width of the guideway: 390mm and 320mm
The bed has been dismantled in 4 parts, 6m of each.
Diameter of the chuck: 1550mm
Weight of the machine: 50T
