Used Slant bed turning center

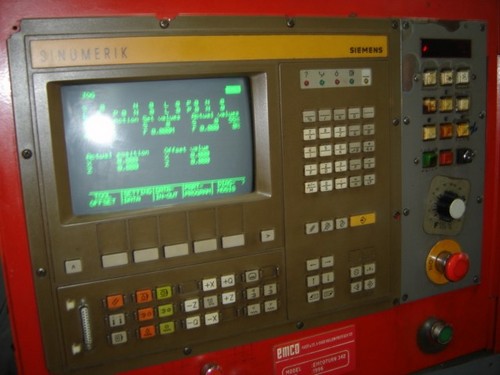

Used CNC Lathe with 150mm chuck , 8 position turret , tailstock and Siemens 810
Turning Diameter 158mm
Longitudinal traverse ( Z axis ) 300mm
Cross Traverse X axis 300mm
Main Spindle Drive AC spindle 15 KW
spindle bore 53mm
Acceleration time of X and Z axes 0 to 12mm/min 0.1 second
Servomotors in X and Z axis
Feed Force Longitudinal 9500N , Feed Force Cross 7500N
Rapid Traverse rate ( both X and Z axis) 12m/min
No. of Tools in Turret 8 , Indexing Accuracy (radius 100mm) +/- 0.002mm
|
