Vertical Machining Centre CNC (VMC) |
|
 |
|

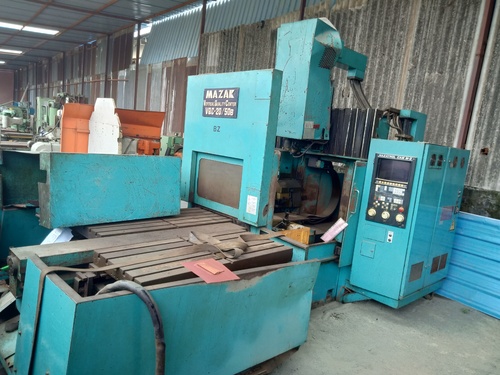

| mazak vqc 20/50b |
|
 |
|
|
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimensions |
: |
3,1 x 2,9 x 2,9 m |
|
|
|
| Location |
: |
Mumbai WareHouse, India |
|
|
 |
| Category |
: |
Vertical Machining Centre CNC (VMC) |
|
|
|
|
|
| Type of Machine |
: |
vmc twin pallets |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
X-travel : 1000 mm
Y-travel : 500 mm
Z-travel : 320 mm
Table-size : 550 x 1240 mm
Max. table load : 800 kg
Spindle taper : CAT 50
Turning Speed Range - Stepless 20-3150 U/min
Main drive motor : 7,5 kW
Voltage : 380 V
Rapid traverse X- and Y-axis : 14 m/min
Rapid traverse Z-axis 12 m per min
Feed speeds infinitely variable : 1to5000 mm per min
Total power requirement : 22 kVA
Weight of the machine ca. : 5600 kg
Dimensions of the machine ca. : 3,1 x 2,9 x 2,9 m
|
|
|
| Description : |
|
Maximum Tool Diameter: 130mm
Maximum Tool Diameter with adjacent pocket empty: 150mm
Maximum Tool Weight: 13 kgs.
No. Of Tools: 24
Tool Selection system: Automatic Random short cut System
Maximum Drilling Capacity: 40mm
Maximum Tapping: M36 X P 3-1/2- 8 UNF
Spindle : BT 50, 55 / 7.5 kw
AC Motor : 3150 rpm,
CNC Control : Mazatrol CAM M-2
|
|
|
|
|
|
|
|
|
|
