| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
CNC Gear Grinding Machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

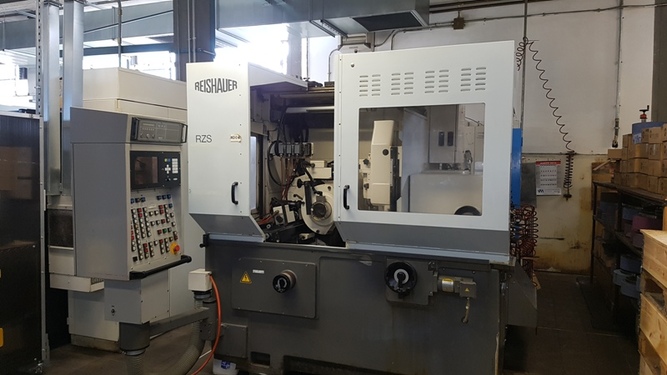

CNC - GEAR GRINDING MACHINE
Make : Reishauer
Type : RZS
New in : 2000. TECHNICAL DETAILS: Max. workpiece dia. 360 mm
Max. stroke 175 mm
No. of teeth range 6- 600
Module range 0,5 - 8
Helix angle +/- 45°
Preesure angle range 10 – 45°
Max. workpiece weight 60kg Max. grinding wheel dia. 350 mm
Min. grinding wheel dia. 280 mm
Grinding heel width 84/104 mm Grinding wheel speed:
- Grinding 1100 - 2300 rpm
- Profiling 90 rpm
workstuck infeed, stepless 10-300 mm/min
Tangential movement of workpiece 70 mm
Electrics 380/50 V/Hz
Weight of the m/c approx. 10 ton
|
|
|
|
|
|
