| K-300 (5 Axis with Num 1030 CNC System) |
|
 |
|
|
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |
K-300 (5 Axis with Num 1030 CNC System) |
|
|
|
|
|
|
|
|
|
|
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
CNC controlled Gear Power Honing machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

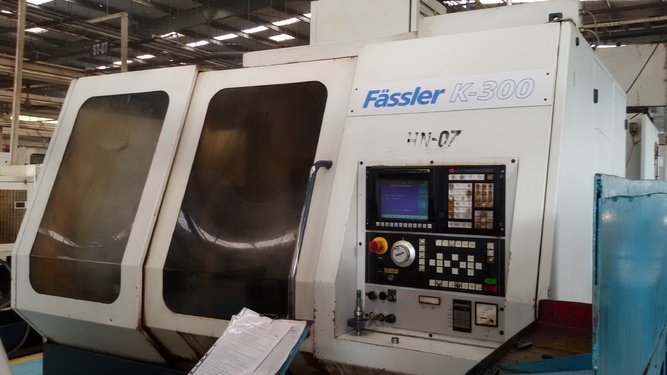

Fassler Switzerland make 5-axis CNC controlled Gear Power Honing machines to fabricate high precision Gears with the capacity to meet the requirements for DIN Quality 6 & JIS Grade 3 quality. - 1. SPECIFICATIONS: As per Fassler K-300 machine manual.
- No. of CNC axis: - 5. (Num 1030 CNC System)
- Module: - 0.3 to 6.
- Control: - Num 1040.
- Max.work Piece diameter: - 180 mm.
- Min. work Piece diameter: - 5 mm.
- Max. length of work piece:- 1000mm.
- Centre distance: - 1000 mm.
- Travel X-axis: - 150 mm.
- Travel Z-axis:- 600 mm.
- Max. honing stone speed: - 500 rpm.
- Max. honing stone diameter: - 300 mm.
- Pressure angle: - 14° to 40°.
- Max. helix angle : - 30°.
- Work Piece weight: - 20 to 50 Kg.
- Total Power requirement: - 11KW.
- Weight of the machine: - 4.5 Tonnes.
- Dimensions of machine: - 2.4 m X 2.3 m X 2.4 m.
|
|
|
|
|
|
