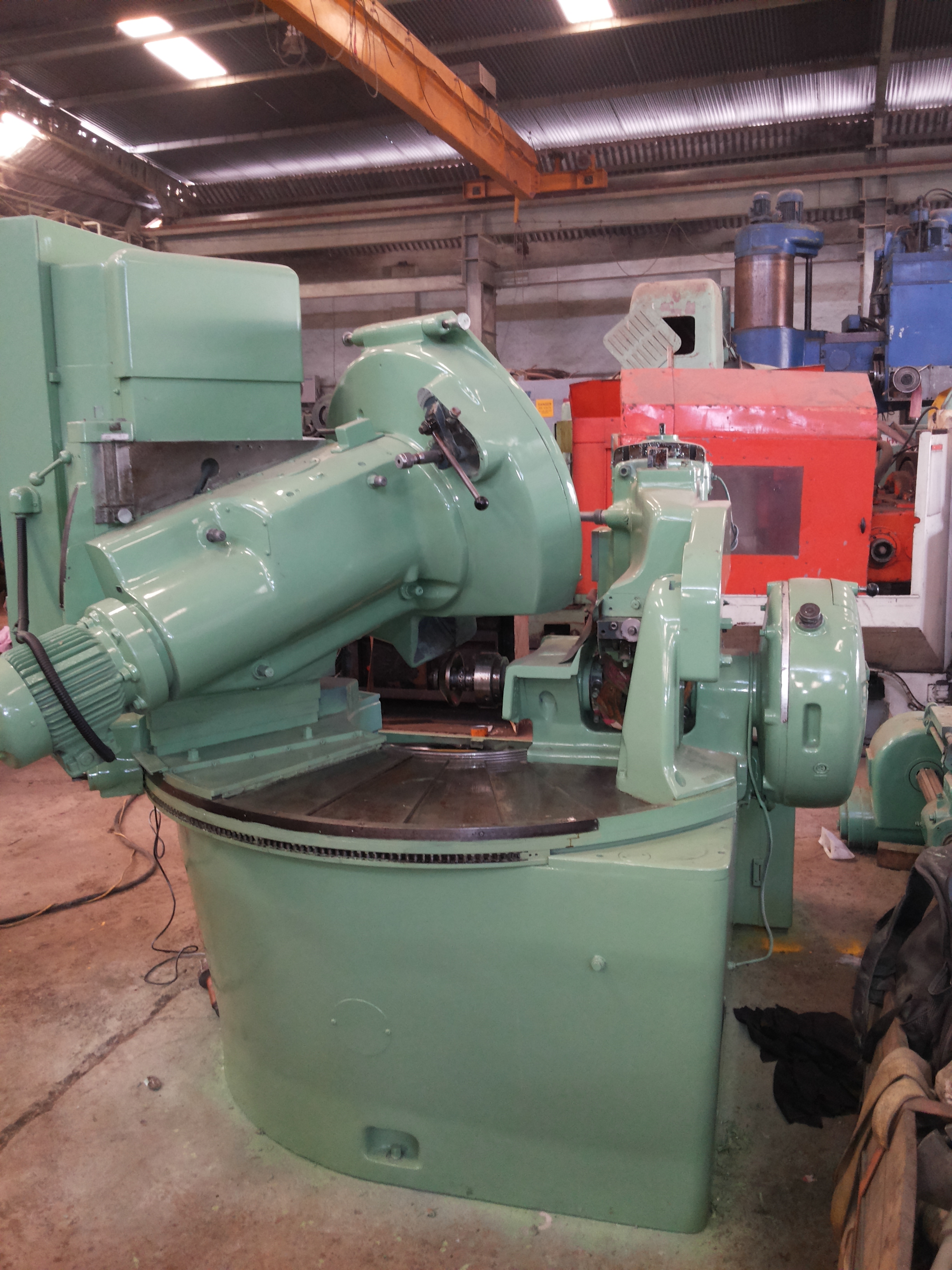

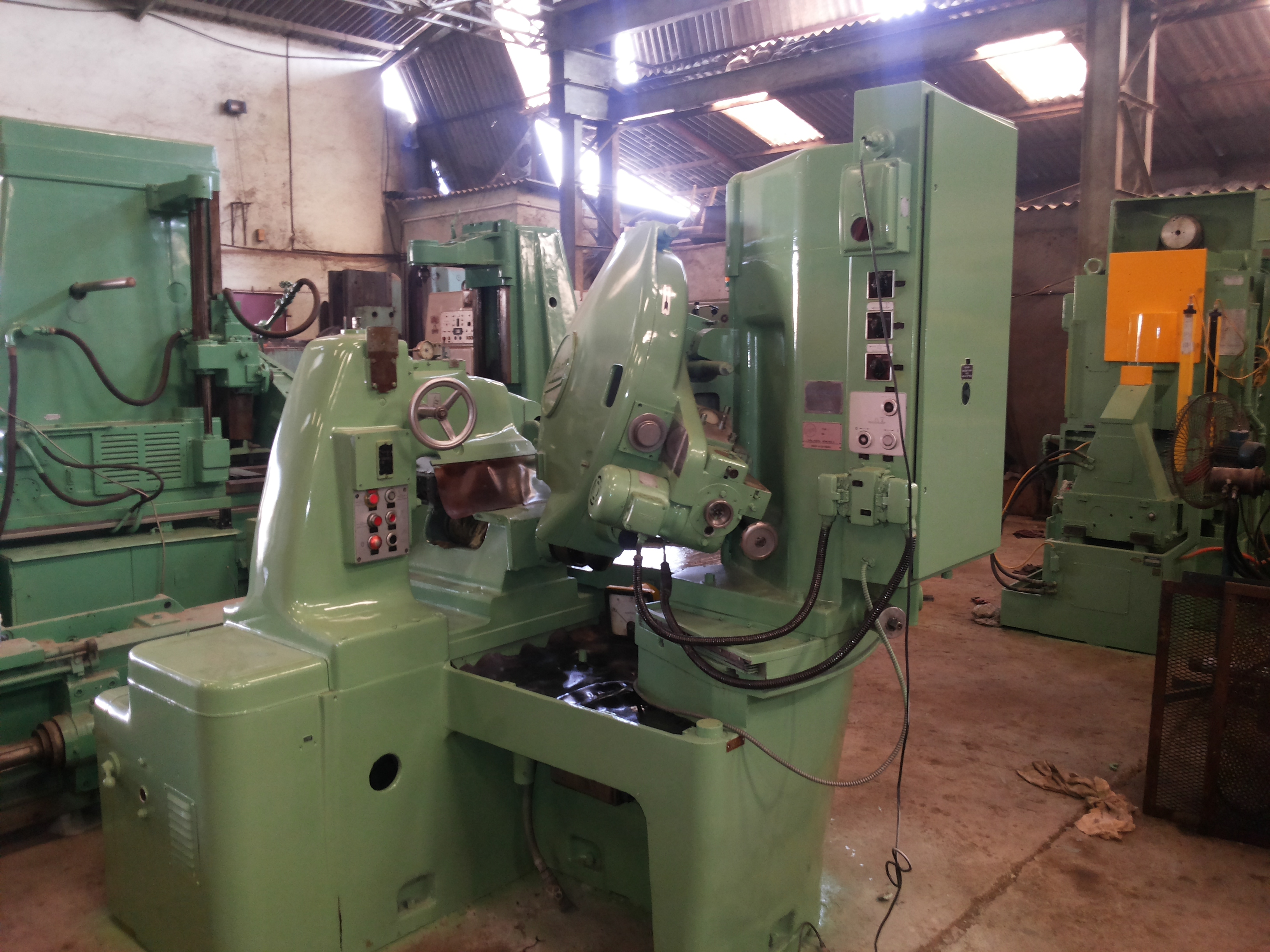

Heavily Equipped with Index Plates + Toolings
The machine is Ex European Gear Shaver Cutter manufacturers and regrinders of used cutters.

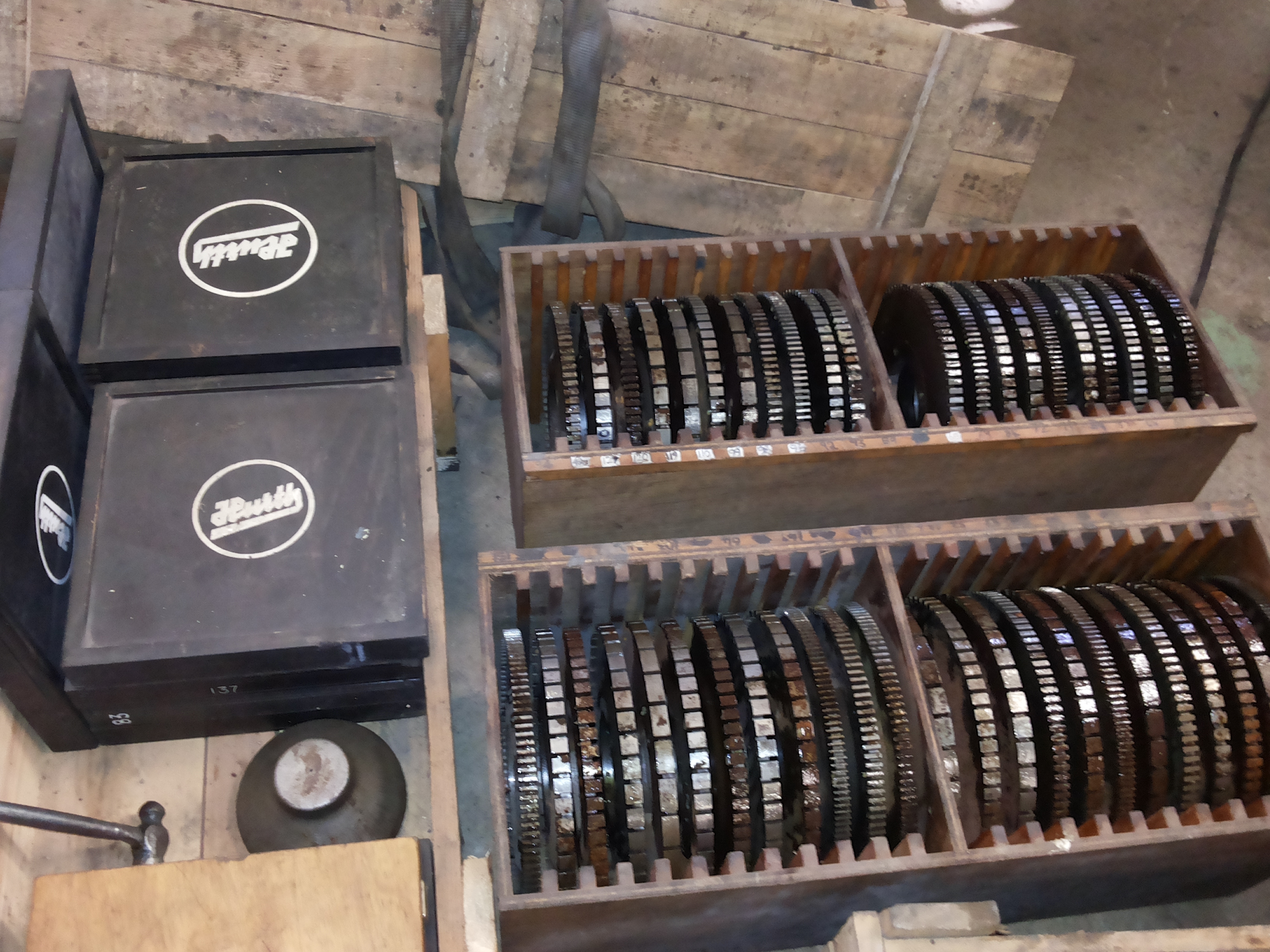

Gear Shaving Cutter Grinder complete with 80 xIndex Plates (20,28,32,33,40,43,

46,49,51,52,53,59,60,64,69,76,

97,116,118,121,146,156,28,30,41,50,57,64,71,79,84,92,94,99,110,

120,127,147,41,57,61,63,63,73,83,113,121,136,137,146,77,47,74,75,44,43,37,31,

55,89,71,95,41,67,24,78,86,89,50,85,127,136,119,150,154,146,149,128,157,139)

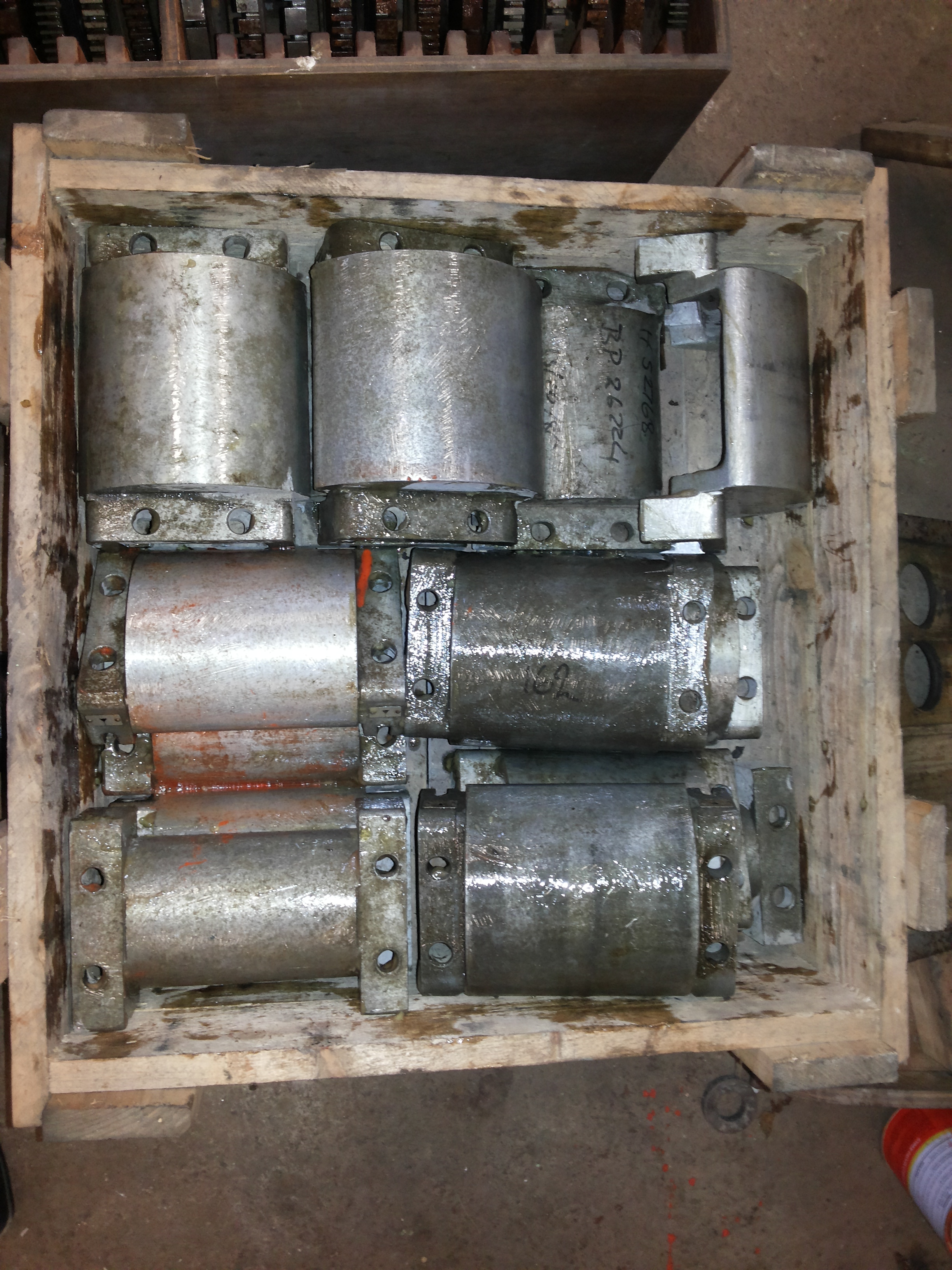

Swivelling Aluminium blocks and steel bands ,manderels etc.
The machine is Ex European Gear Shaver Cutter manufacturers and regrinders of used cutters.



It is also suitable for master gears as well as cutters for gear shapers.



Video
Machine Id: 927 Serial No: 18075
Model: SRS 400 Asking Price: onrequest
Make: Hurth Country: Germany
Year: 1985 Weight: 4200.0
Dimensions: Location: Mumbai Warehouse,India
Power: 3KW
Category: Gear Related Machines
Type of Machine: universal shaver cutter grinding machine with (Indexing plates 80)
Specification

No.of teeth 13 to 240
Pitch block Dia 73 to 320 mm

Module range 1to12
Shaver cutter Dia 64mm  min., max.320 mm
Shaver cutter width, max. 40 mm

Grinding wheel swivelling (pressure angle) 5 to 21 Degree
Grinding slide swivelling (helical angle) 2x35 Degree
Grinding slide adjustment, vertical 240 mm

Cutting speed 1, 0.5, 0.25 m per min

Speeds of workpiece slide 5, 20, 30, 40 teeth per min.
Grinding slide speed 690 rpm
Grinding slide Dia 762 mm

Spindle drive 1.1  kW

Description

Gear Shaving Cutter Grinder complete with 80 xIndex Plates (20, 28, 32, 33, 40, 43,

46, 49, 51, 52, 53, 59, 60, 64, 69, 76, 97, 116, 118, 121, 146, 156, 28, 30, 41, 50, 57, 64, 71, 79, 84, 92, 94, 99,

110, 120, 127, 147, 41, 57, 61, 63, 63, 73, 83, 113, 121, 136, 137, 146, 77, 47, 74, 75, 44, 43, 37, 31, 55, 89, 71, 95,

41, 67, 24, 78, 86, 89, 50, 85, 127, 136, 119, 150, 154, 146, 149, 128, 157, 139)

Swivelling Aluminium blocks and steel bands ,manderels etc.
The machine is Ex European Gear Shaver Cutter manufacturers and regrinders of used cutters.

It is also suitable for master gears as well as cutters for gear shapers.





                   PITCH BLOCK DETAILS

1

4.220

8

110.41.182.00.9

2

5.235

9

110.41.174.00.9

3

5.931

10

110.41.242.00.9

4

4.441

11

110.41.186.00.9

5

162 M/M

12

110.41.166.00.9

6

193 M/M

13

110.41.212.003

7

110.41.175.00.3

14

H 52768 BP 86224
