Machine Id: 529 Serial No:
Model: ZPLZK 500 Asking Price: onrequest
Make: WMW Country: Germany
Year: 1990 Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Gear Related Machines
Type of Machine: Bevel Gear Testing Machine
Specification

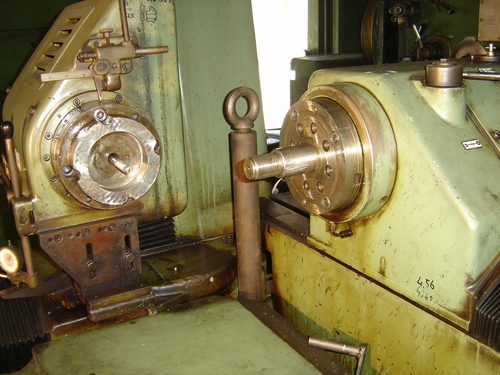

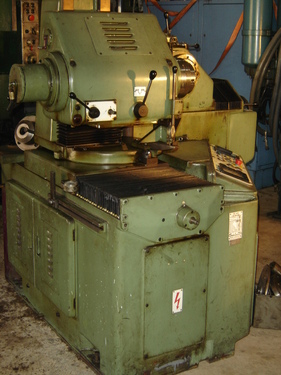

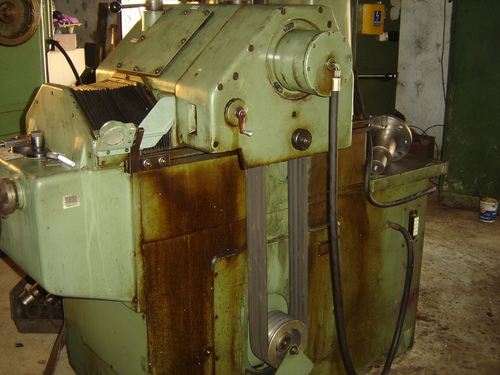

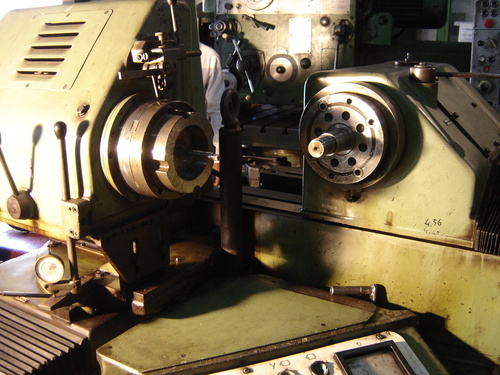

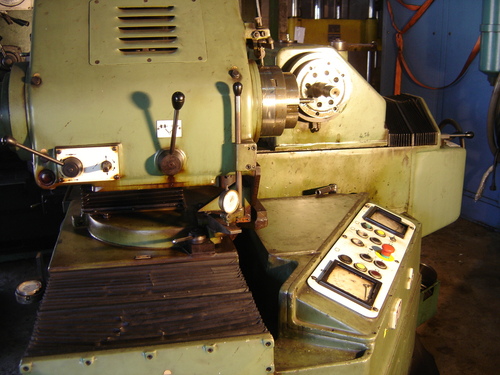

Bevel Gear Testing Machine -

WMW-MODUL - ZPLZK 500

Offer details
Type of machineBevel Gear Testing Machine
MakeWMW-MODUL
TypeZPLZK 500
Year of manufacture1980
Type of controlconventional

Country of originGermany
Delivery timeimmediately
Freight basisex Warehouse
Technical details
max. wheel diameter500 mm
gear widthmm
module12
total power requirement5 kW
weight of the machine ca.3,4 t
Additional information
Max. / min. gear  500 / 30 mm
Max. / min. pinion 355 / 30 mm

Max. axial offset +/- 80 mm
Adjustable shaft angle 90 - 180 degree

Max. / min. distance from face of pinion spindle to gear axis 350 / 160 mm
Max. / min. distance from face to gear spindle to pinion axis 305 / 110 mm

Centre distance for spur gears 60 - 435 mm
Max. spur gear500 mm

Spindle cone 100 mm
Speeds of pinion spindle, infinitely variable 105 - 3,000 rpm

Total electrical load, approx. 5 kW - 380 V - 50 Hz
Weight, approx. 3,400 kg

Accessories / Special Features
* Basic settings of machine are by using gauges.
* Infinitely various speeds via DC drive.
* Hydraulic workpiece clamping.
* Separate switch cabinet
